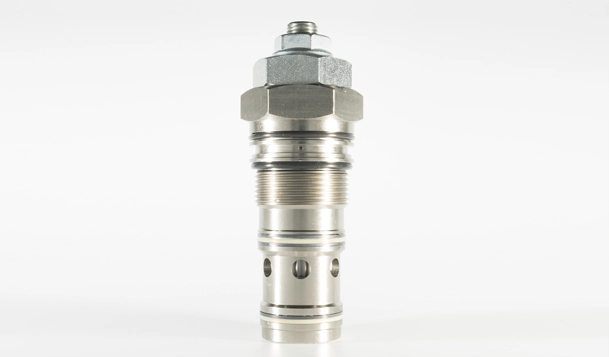

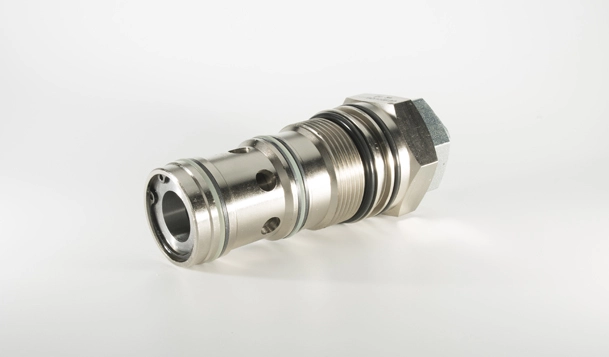

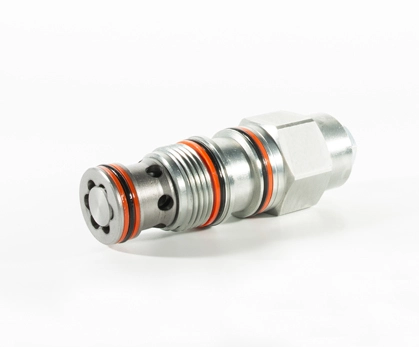

I1CPBD300F2P Counterbalance Valve

The I1CPBD300F2P Counterbalance Valve is a high-performance hydraulic valve designed for applications with demanding overrunning loads. Its precise pressure adjustment and pilot-operated design ensure optimal control and stability, preventing load runaway and maintaining safe operation. With its robust construction and reliable performance, it is a crucial component for maintaining control and safety in hydraulic systems handling heavy loads.

Products

Specifications of I1CPBD300F2P Counterbalance Valve

Product ModelI1CPBD300F2P COUNTERBALANCE VALVE
Operating Pressure400bar (5800 psi)
Regulated FlowMax. 300 lpm(80 gpm)
Temperature-40°℃~100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIVC50-4,See page 307


Material

CartridgeWeight: 0.91 kg. (2 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealD type seal rings.


Features of I1CPBD300F2P Counterbalance Valve

1. Hardened spool for long life.
2. Smooth response.
3. Industry common cavity.


Operation Symbol of I1CPBD300F2P Counterbalance Valve

Operation Symbol of I1CPBD300F2P Counterbalance Valve

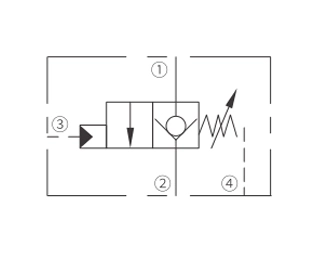

The I1CPBD300F2P allows the flow from ② to ①, while blocks flow from ① to②; The pilot pressure at port ③ forces the main spool to shift upward, intended to open the ① to ② flow path. The cartridge’s flow characteristic is controlled by spring stiffness, angle of spring seat, and pilot pressure.

Performance/Dimension/Sectional Drawing of I1CPBD300F2P Counterbalance Valve

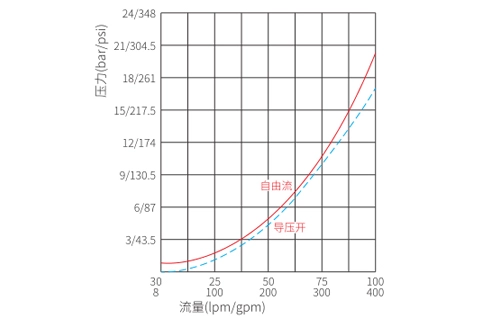

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of I1CPBD300F2P Counterbalance Valve

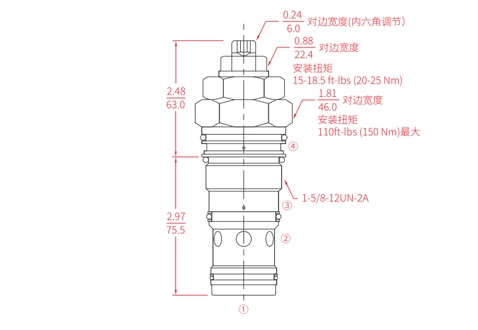

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of I1CPBD300F2P Counterbalance Valve

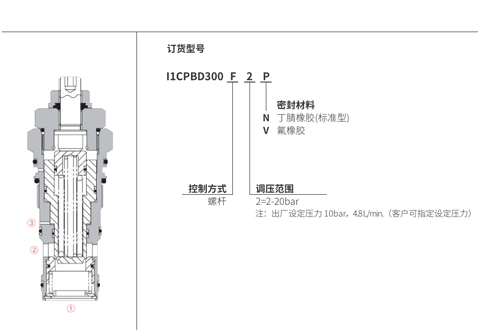

Sectional Drawing
Performance/Dimension/Sectional Drawing of I1CPBD300F2P Counterbalance Valve
