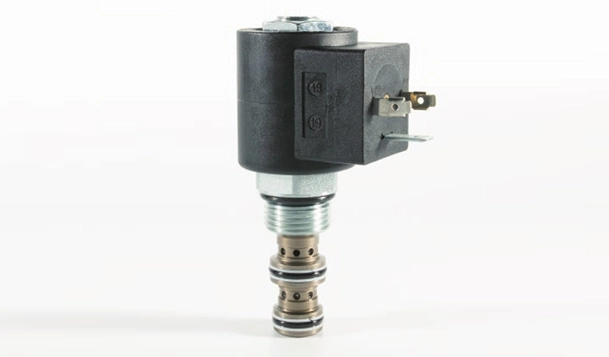

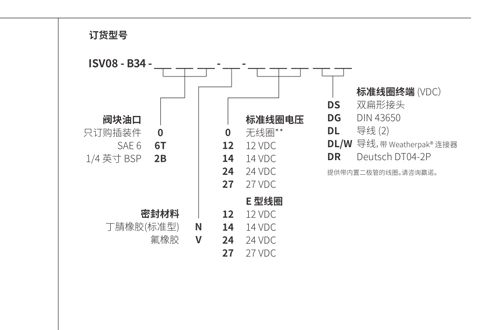

ISV08-B34 Spool 3-Way 2-Position Solenoid Valve

The ISV08-B34 Spool, 3-Way, 2-Position valve is a versatile hydraulic valve designed for accurate control of fluid flow. With its 3-way configuration and 2-position operation, it provides precise control over the direction of fluid flow in hydraulic systems. Its compact size, durable construction, and reliable performance make it suitable for a wide range of industrial applications.

Products

Specifications of ISV08-B34 Spool, 3-Way, 2-Position Solenoid Valve

Product ModelISV08-B34 SPOOL, 3-WAY, 2-POSITION
Operating PressureMax. 350 bar (5100 psi)
Flow20L/min(5GPM)
Internal Leakage60 ml/min. max. at 100 bar (1450 psi)
Temperature-40°℃~100°C
Response TimePull-In: 100 msec.; Drop-Out: 100 msec
Initial Coil Current Draw at 20°CStandard Coil: 1.46 amps at 14 VDC
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu)
CavityIVC08-3,See page 298


Material

CartridgeWeight: 0.20 kg. (0.44 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.Seal: D type seal rings.
Standard Ported BodyWeight:0.27 kg. (0.60 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).Ductile iron and steel bodies available; dimensions may differ. Consult Inno.
E-CoilWeight: 0.14 kg. (0.30 lbs.); Perfect wound, fully encapsulated with rugged external metal shell; Rated up to IP69K with integral connectors.


Features of ISV08-B34 Spool, 3-Way, 2-Position Solenoid Valve

1. Continuous-duty rated coil.
2. Hardened seat for long life and low leakage.
3. Optional coil voltages and terminations.
4. All ports may be fully pressurized.
5. Heavy-duty waterproof E-Coils rated up to IP69K

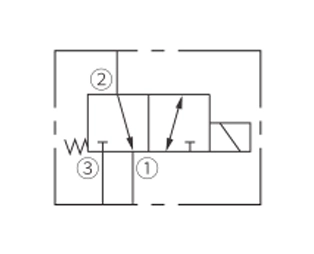

Operation Symbol of ISV08-B34 Spool, 3-Way, 2-Position Solenoid Valve

Operation Symbol of ISV08-B34 Spool, 3-Way, 2-Position Solenoid Valve

When de-energized, the ISV08-B34 allows flow from ② to ①.When energized, the cartridge’s spool shifts to open the ③ to ② flow path.

Performance/Dimension/Sectional Drawing of ISV08-B34 Spool, 3-Way, 2-Position Solenoid Valve

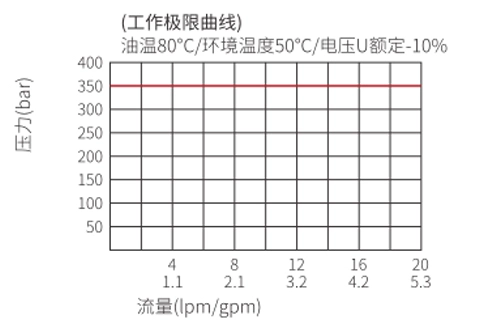

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of ISV08-B34 Spool, 3-Way, 2-Position Solenoid Valve

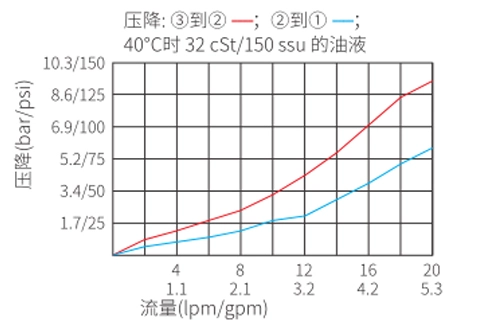

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of ISV08-B34 Spool, 3-Way, 2-Position Solenoid Valve

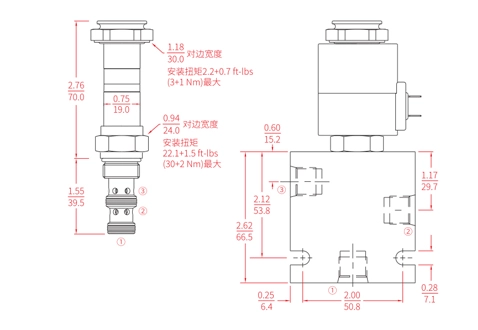

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ISV08-B34 Spool, 3-Way, 2-Position Solenoid Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of ISV08-B34 Spool, 3-Way, 2-Position Solenoid Valve
