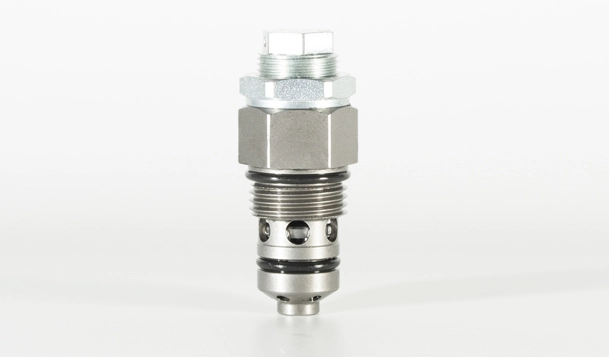

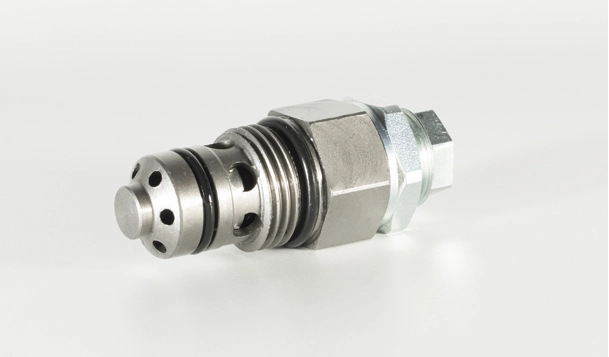

IRV08-B20 Relief Valve Direct-Acting Poppet

INNO's Direct-Acting Poppet valve, model IRV08-B20, is engineered for reliable overpressure protection. Its durable design features a compact size and high flow rate, making it ideal for a range of applications. With its easy installation and low maintenance requirements, this relief valve is a great choice for any industry needing dependable pressure control.

Products

Specifications of IRV08-B20 Relief Valve Direct-Acting Poppet

Operating Pressure350 bar (5100 psi)
FlowThe Performance Chart illustrates the flow handling capacity of different
springs at maximum setting. Pressure rise will vary with setting due
to spring and flow forces. Consult Inno for specific pressure-flow
characteristic values.
Internal Leakage0.25 ml/min. (5 drops/minute) max. to 80% of nominal setting
Reseat PressureNominal 90% of crack pressure
Temperature-40 to 100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC08-2A; See page 298


Material

CartridgeWeight: 0.07 kg. (0.15 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal rings.
Anodized aluminum knobs and caps.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Ductile iron and steel bodies available; dimensions may differ.
Consult Inno.


Features of IRV08-B20 Relief Valve Direct-Acting Poppet

1. Adjustments cannot be backed out of the valve.
2. Adjustments prohibit springs from going solid.
3. Optional spring ranges to 350 bar (5100 psi).
4. Fast, smooth response to pressure surges.
5. Compact size.

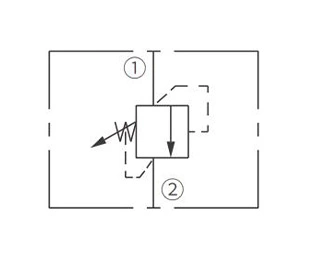

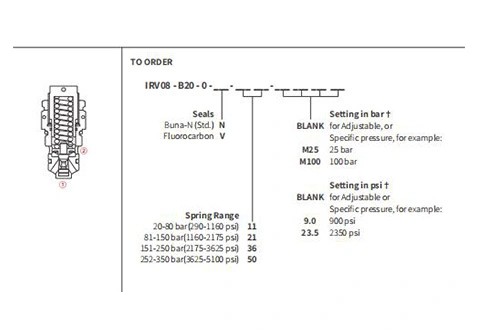

Operation Symbol of IRV08-B20 Relief Valve Direct-Acting Poppet

Operation Symbol of IRV08-B20 Relief Valve Direct-Acting Poppet

The IRV08-B20 relieves the pressure to ② from ① once the pre-determined pressure was attained at ①, intended to reduce pressure.

Performance/Dimension/Sectional Drawing of IRV08-B20 Relief Valve Direct-Acting Poppet

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IRV08-B20 Relief Valve Direct-Acting Poppet

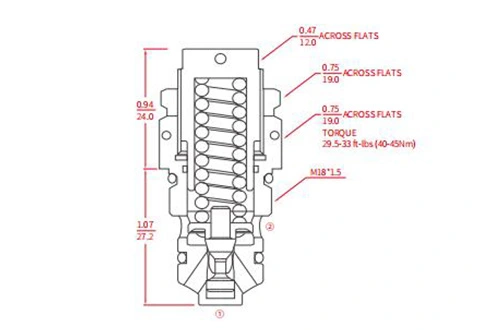

Sectional Drawing
Performance/Dimension/Sectional Drawing of IRV08-B20 Relief Valve Direct-Acting Poppet

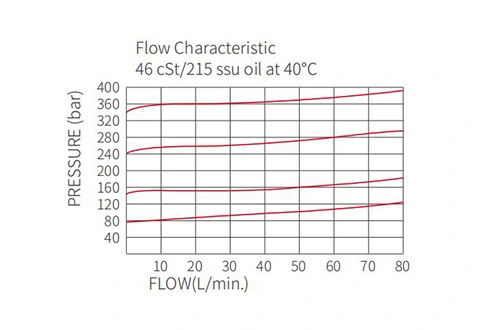

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IRV08-B20 Relief Valve Direct-Acting Poppet
