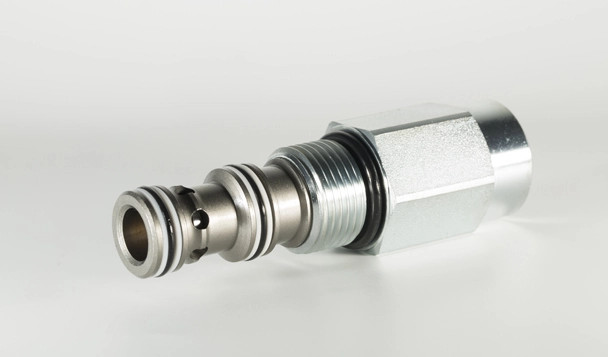

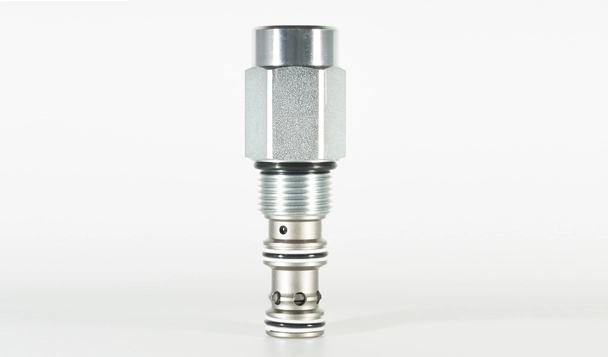

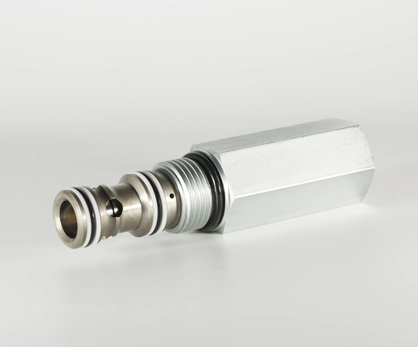

IEP08-35 Piloted Logic Element Valve

The IEP08-35 piloted logic element valve is a versatile valve designed to deliver precise and reliable control in pneumatic systems. This valve incorporates a piloted logic element, which allows for accurate regulation of airflow based on specific conditions or inputs. It enables the valve to respond intelligently to changes in pressure or other variables, ensuring optimal performance in pneumatic applications.


Products

Specifications of IEP08-35 Piloted Logic Element Valve

Operating Pressure240 bar (3500 psi)
FlowSee Performance Chart
Internal Leakage115 ml/min. max (7 cu. in./minute) at 345 bar (5000 psi)

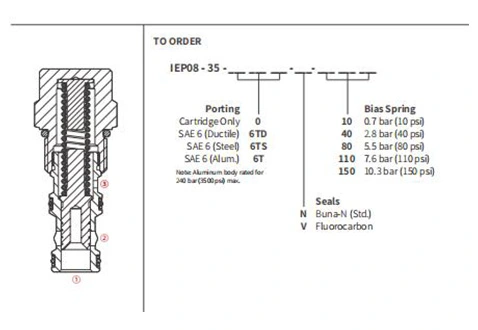

Bias SpringsSee the Ordering code on the right
Temperature-40 to 100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC08-3; See page 298


Material

CartridgeWeight: 0.11kg. (0.25 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal ring.
Ported BodyWeight: 0.64 kg. (1.4 lbs.); Steel with zinc-plated exposed surfaces
(code "S");
Or Ductile Iron (code“D”) standard; rated to 345 bar(5000 psi).
Weight: 0.36 kg. (0.80 lbs.); Anodized highstrength 6061 T6
aluminum alloy, rated to 240 bar (3500 psi).


Features of IEP08-35 Piloted Logic Element Valve

1. Multiple function/Application potential.
2. Low pressure drop.
3. Industry common cavity.
4. Compact size.

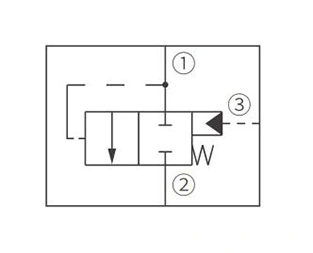

Operation Symbol of IEP08-35 Piloted Logic Element Valve

Operation Symbol of IEP08-35 Piloted Logic Element Valve

The IEP08-35 is a spring-biased blocking valve that spool will shift to allow full flow from ① to ② only when the pressure at ① exceeds the cumulative pressure of ③, plus the bias spring pressure value. IEP08-35 is a pilot-to-close directional valve. With no pressure at ③, the flow will be allowed from ① to ② once the bias spring force is overcome with pressure at ①.



Performance/Dimension/Sectional Drawing of IEP08-35 Piloted Logic Element Valve

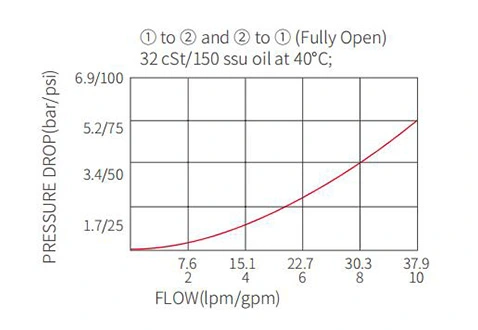

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IEP08-35 Piloted Logic Element Valve

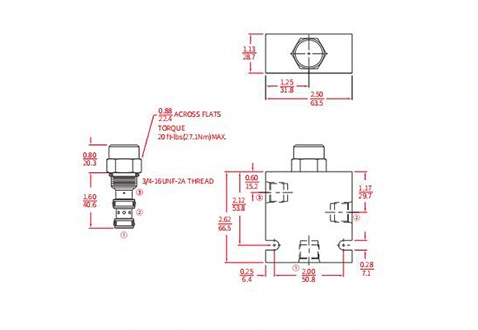

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IEP08-35 Piloted Logic Element Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of IEP08-35 Piloted Logic Element Valve
