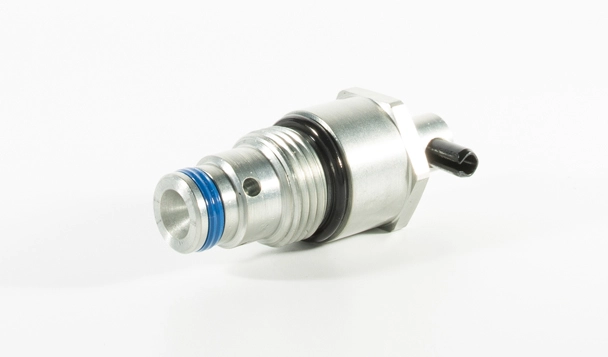

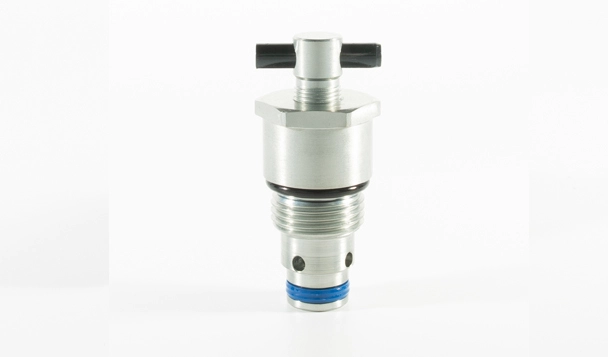

INV08-20A Hydraulic Needle Valve

The INV08-20A Needle Valve is a precision instrument for fluid control. With its adjustable needle-like plunger, it provides precise control over flow rates. Its compact design, durability, and compatibility with various fluids make it ideal for applications requiring fine-tuned fluid control in diverse industries.

Products

Specifications of INV08-20A Needle Valve

Product ModelINV08-20A NEEDLE VALVE
Operating Pressure250 bar (3600 psi)
Flow42 lpm (11 gpm) nominal at 7 bar (100 psi) differential at full open 3.5turns
Internal LeakageZero leakage at shut-off
Pilot RatioPilot Ratio: 3:1, max. setting should be equal to 1.3 times the load pressure
Temperature-40°℃~100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation:No restrictions
CavityIVC08-2,See page 297


Material

CartridgeWeight: 0.10 kg. (0.23 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealD type seal rings; Anodized aluminum knobs.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

Features of INV08-20A Needle Valve

1. Adjustments cannot be backed out of the valve.
2. Hardened parts for long life.
3. Aluminum knob option.
4. Positive shut-off.
5. Linear adjustment.
6. Compact size.

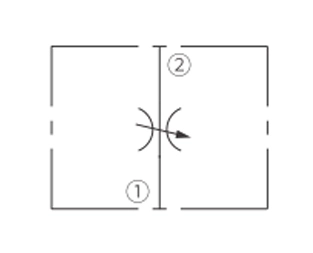

Operation Symbol of INV08-20A Needle Valve

Operation Symbol of INV08-20A Needle Valve

The INV08-20A increases its orifice value from fully closed to fully open with counterclockwise adjustment rotation.

Performance/Dimension/Sectional Drawing of INV08-20A Needle Valve

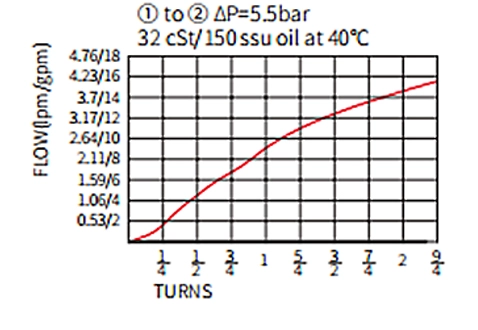

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of INV08-20A Needle Valve

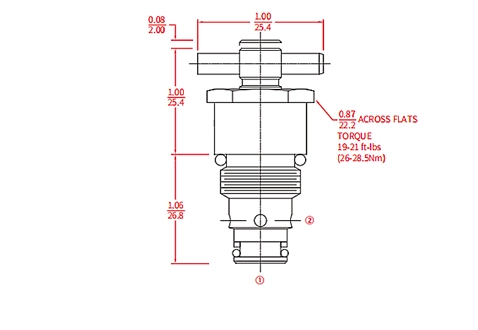

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of INV08-20A Needle Valve

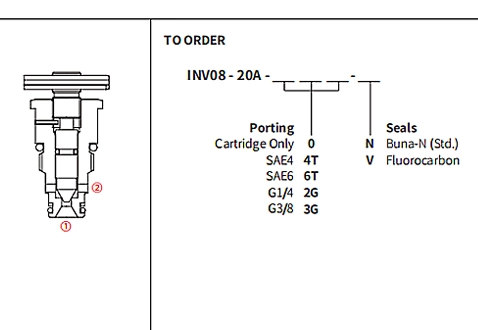

Sectional Drawing
