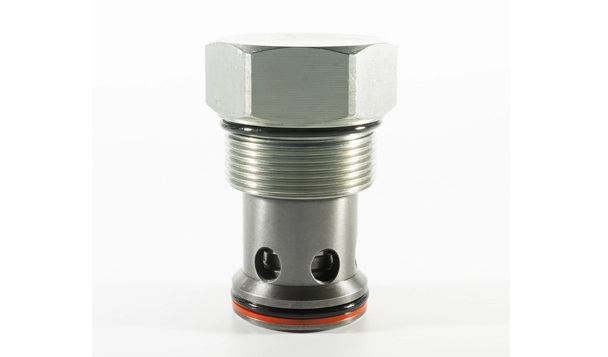

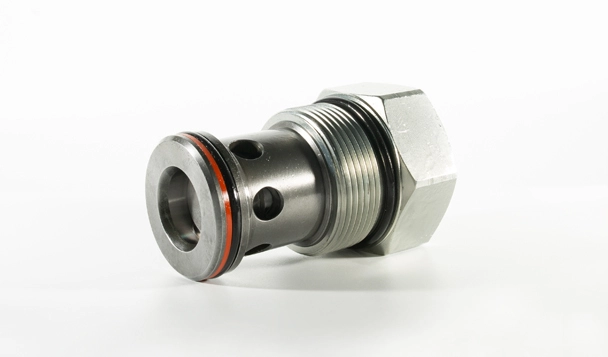

ICV42-M20 Poppet, Check Valve

The ICV42-M20 is a poppet-type check valve used in many industries, including automotive, HVAC, and aerospace. It works by allowing air to flow in one direction while preventing the flow of air in the opposite direction. It is made of corrosion-resistant materials and is designed for long-term use in a variety of applications. The valve's poppet design ensures dependable sealing and performance even in high-pressure applications. This valve also features an adjustable cracking pressure from 0.02 to 0.50 bar, allowing it to be optimized for the needs of different applications.

Products

Specifications of ICV42-M20 Poppet, Check Valve

Product ModelICV42-M20 POPPET, CHECK VALVE
Proof Pressure350 bar(5100 psi)
FlowSee Performance Chart
Internal Leakage0.25 ml/min. (5 drops/minute) max. at 240 bar (3500 psi)
Crack Pressure DefinedGauge bar (psi) evident at ① at 16.4 ml/min. (1 cu. in./minute) attained
Standard Bias Springs at Crack0.34 bar(5 psi);1 bar(15 psi);1.7 bar(25 psi) ;2.1 bar(30 psi);4.1 bar(60 psi);6.9 bar(100 psi)
Temperature-40°℃~100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIVC42-2M,See page 306


Material

CartridgeWeight: 0.43kg. (0.95 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.Seal: O-rings and back-up rings.
Standard Ported BodyWeight: 1.63 kg. (3.60 lbs.); Anodized highstrength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

Features of ICV42-M20 Poppet, Check Valve

1. Hardened seat for long life and low leakage.
2. Optional bias springs for back-pressure application flexibility.
3. Conforms to ISO 7789 cavity

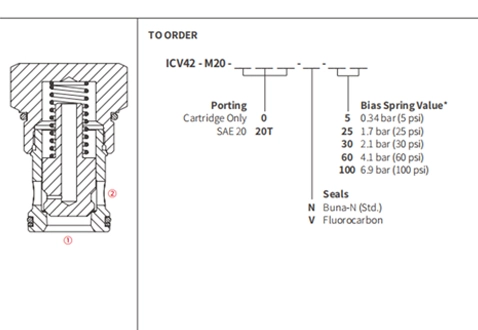

Operation Symbol of ICV42-M20 Poppet, Check Valve

Operation Symbol of ICV42-M20 Poppet, Check Valve

The I1CPBD300F2P allows the flow from ② to ①, while blocks flow from ① to②; The pilot pressure at port ③ forces the main spool to shift upward, intended to open the ① to ② flow path. The cartridge’s flow characteristic is controlled by spring stiffness, angle of spring seat, and pilot pressure.

Performance/Dimension/Sectional Drawing of ICV42-M20 Poppet, Check Valve

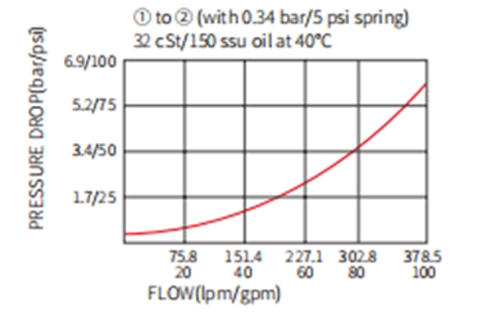

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICV42-M20 Poppet, Check Valve

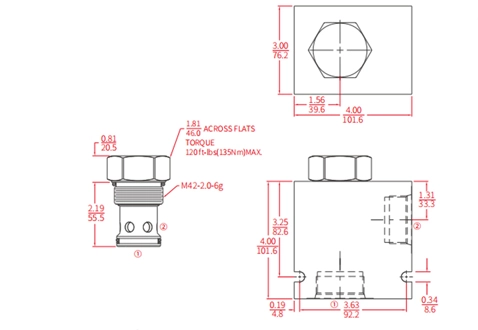

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICV42-M20 Poppet, Check Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of ICV42-M20 Poppet, Check Valve
