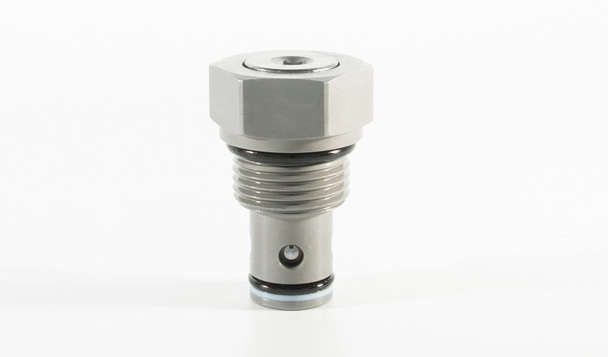

ICV08-C20 Ball Valve, Check Valve

ICV08-C20 Ball Valves and Check Valves are designed for precision performance and durability. These reliable, durable valves boast a compact design, high-pressure capabilities and a long service life. Additionally, they feature a stainless steel body and, for the ball valves, a full-port design for reduced pressure drop and greater flow rate. The high cycle stem packing system ensures a tight seal, and PN16 rising-stem valves ensure that pressure is kept in check. With a 5-year warranty, these quality valves are a great choice for any application.

Products

Specifications of ICV08-C20 Ball Valve, Check Valve

Product ModelICV08-C20 BALL VALVE, CHECK VALVE
Operating Pressure350 bar (5100 psi)
Proof Pressure525 bar (7500 psi)
FlowSee Performance Chart
Internal Leakage0.25 ml/min. (5 drops/minute) max. at 350 bar (5100 psi)
Crack Pressure DefinedGauge bar (psi) evident at ① at 16.4ml/min. (1 cu. in./minute) attained
Standard Bias Springs at Crack0.34 bar (5 psi);0.7 bar (10 psi);1.7 bar (25 psi);3.4 bar (50 psi);45 bar (650 psi)
Temperature-40°℃~120°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation:No restrictions
CavityIVC08-2, See page 297


Material

CartridgeWeight: 0.12 kg. (0.26 lbs.); Steel with hardened work surfaces. Zinc-Nickel-plated exposed surfaces.Seal: Buna-N O-rings and back-up rings (standard).
Standard Ported BodyWeight: 0.14 kg. (0.31 lbs.); Anodized highstrength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

Features of ICV08-C20 Ball Valve, Check Valve

1. Hardened seat for long life and low leakage.
2. Optional bias springs for back-pressure application flexibility.
3. Fully guided check assembly.
4. Miniature size.
5. Fast closing and seating.

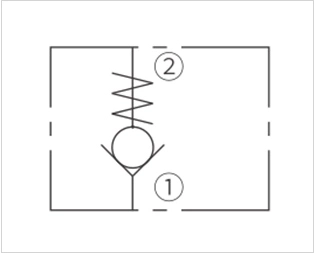

Operation Symbol of ICV08-C20 Ball Valve, Check Valve

Operation Symbol of ICV08-C20 Ball Valve, Check Valve

The ICV08-C20 allows flow passage from ① to ②, while normally blocking oil flow in the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at ① to open to ②.

Performance/Dimension/Sectional Drawing of ICV08-C20 Ball Valve, Check Valve

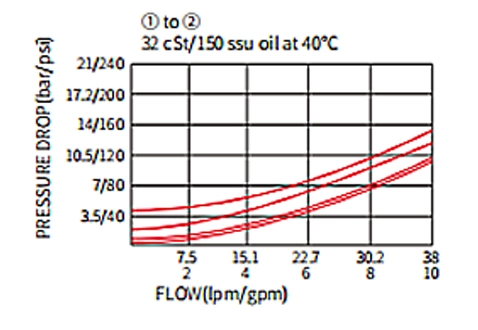

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICV08-C20 Ball Valve, Check Valve

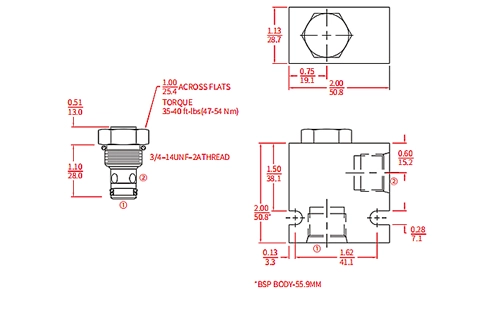

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICV08-C20 Ball Valve, Check Valve

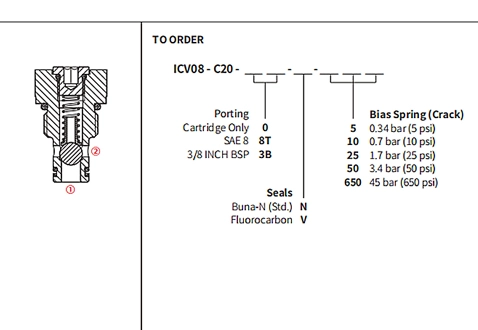

Sectional Drawing
Performance/Dimension/Sectional Drawing of ICV08-C20 Ball Valve, Check Valve
