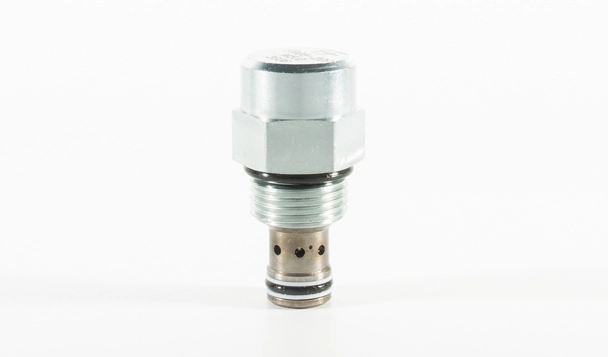

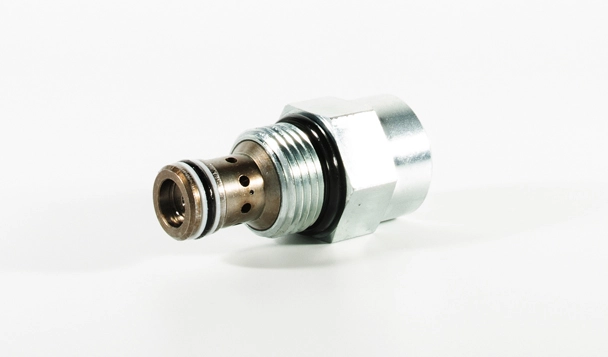

IFR08-20F Flow Fregulator Pressure-Compensated Valve

The IFR08-20F Flow Regulator Pressure-Compensated valve is a versatile device that combines the functions of a flow regulator and pressure compensation in a single unit. It ensures consistent flow rates regardless of changes in system pressure, making it ideal for applications requiring stable flow control in dynamic environments. Its compact design and easy installation make it a reliable choice for various industrial settings.

Products

Specifications of IFR08-20F Flow Fregulator Pressure-Compensated

Product ModelIFR08-20F FLOW FREGULATOR PRESSURE-COMPENSATED
Operating Pressure240 bar (3500 psi)

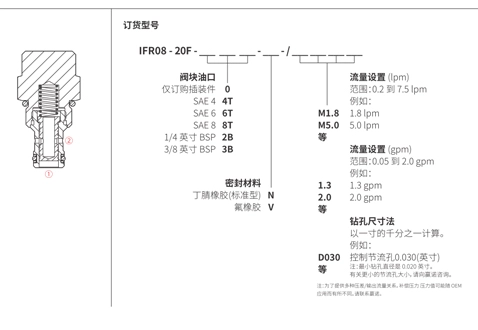

FlowSee the ordering code in the right
Temperature-40°℃~100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu)
CavityIVC08-2,See page 297


Material

CartridgeWeight: 0.07 kg. (0.15 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealD type seal rings.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

Features of IFR08-20F Flow Fregulator Pressure-Compensated

1. Hardened parts for long life.
2. Quiet, modulated response.
3. Compact size.

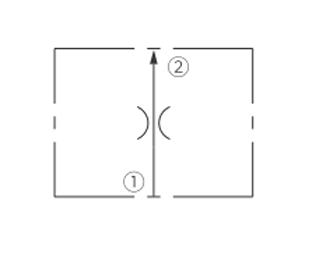

Operation Symbol of IFR08-20F Flow Fregulator Pressure-Compensated

Operation Symbol of IFR08-20F Flow Fregulator Pressure-Compensated

The IFR08-20F maintains a constant flow rate out of ② regardless of load pressure changes in the circuit downstream of ②. The fixed control orifice is factory preset to customer flow specification. The valve begins to respond to load changes when the flow through the valve creates a pressure differential across the control orifice greater than 5.5 bar (80 psi), with accurate flow maintenance from 7.6 to 240 bar (110 to 3500 psi). Reverse flow (from ② to ① ) returns through the control orifice and is non-compensated.

Performance/Dimension/Sectional Drawing of IFR08-20F Flow Fregulator Pressure-Compensated

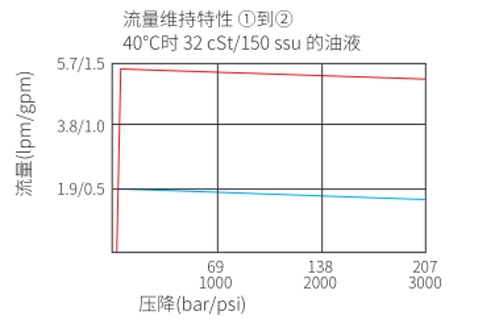

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of IFR08-20F Flow Fregulator Pressure-Compensated

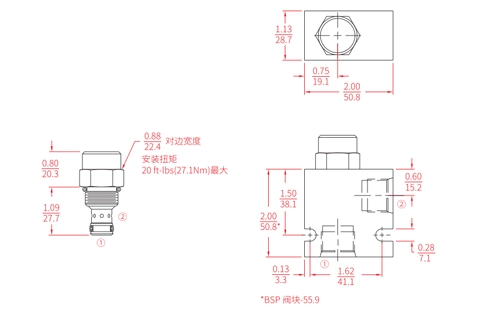

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IFR08-20F Flow Fregulator Pressure-Compensated
Sectional Drawing
Performance/Dimension/Sectional Drawing of IFR08-20F Flow Fregulator Pressure-Compensated
