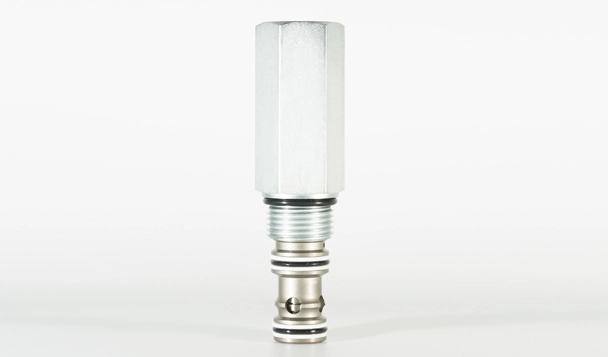

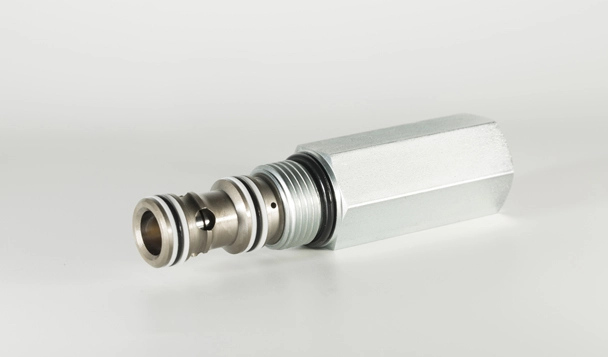

IEP10-S35 Piloted Logic Element Valve

The piloted logic element allows for intelligent and dynamic control, ensuring efficient operation and optimal performance in a variety of pneumatic applications. Whether used in robotics, automated machinery, or industrial processes, the IEP10-S35 piloted logic element valve offers reliable and precise control, enhancing the overall productivity and functionality of pneumatic systems.

Products

Specifications of IEP10-S35 Piloted Logic Element Valve

Operating Pressure350 bar (5100 psi)
FlowSee Performance Chart
Internal Leakage164 ml/min. max (10 cu. in./minute) at 207 bar (3000 psi)
Bias SpringsSee the Ordering code on the right
Temperature-40 to 100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC10-S3; See page 304


Material

CartridgeWeight: 0.15kg. (0.32 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal ring.
Standard Ported BodyWeight: 0.32 kg. (0.70 lbs.); Anodized highstrength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Ductile iron (8TD) and Steel (8TS) bodies are available for pressures
up to 350 bar (5000 psi); Weight and dimensions may differ.
Consult Inno.


Features of IEP10-S35 Piloted Logic Element Valve

1. Multiple function/Application potential.
2. Low pressure drop.
3. Industry common cavity

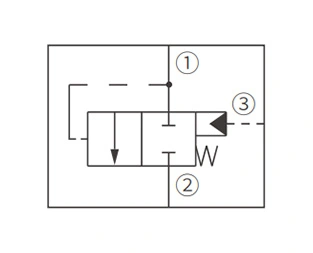

Operation Symbol of IEP10-S35 Piloted Logic Element Valve

Operation Symbol of IEP10-S35 Piloted Logic Element Valve

The IEP10-S35 is a spring-biased blocking valve that spool will shift to allow full flow from ① to ② only when the pressure at ① exceeds the cumulative pressure of ③, plus the bias spring pressure value. IEP10-S35 is a pilot-to-close directional valve.


With no pressure at ③, the flow will be allowed from ① to ② once the bias spring force is overcome with pressure at ①.

Performance/Dimension/Sectional Drawing of IEP10-S35 Piloted Logic Element Valve

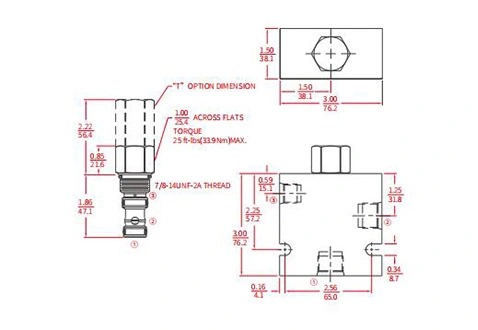

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IEP10-S35 Piloted Logic Element Valve

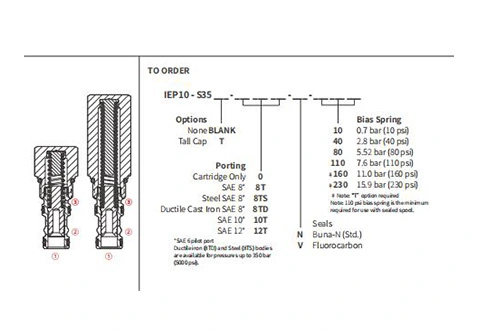

Sectional Drawing
Performance/Dimension/Sectional Drawing of IEP10-S35 Piloted Logic Element Valve

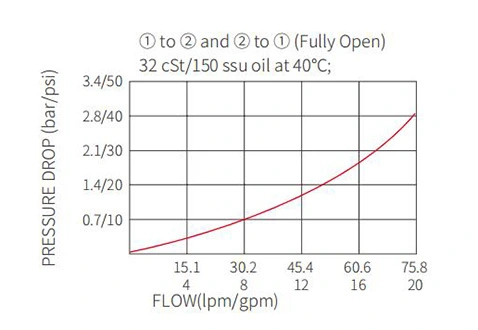

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IEP10-S35 Piloted Logic Element Valve
