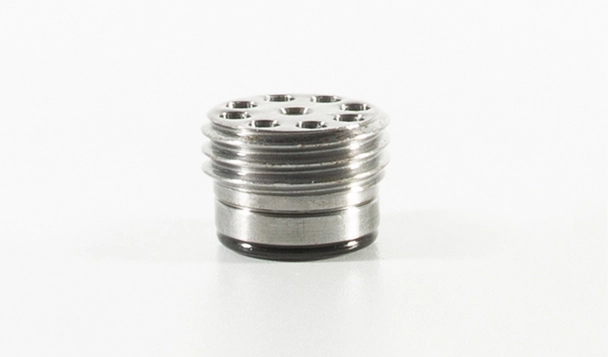

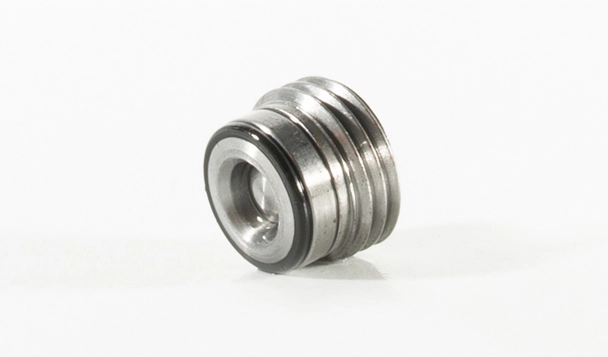

ICV2000-G14 Screw-In Check Valve

The ICV2000-G14 is a high-performance Screw-In Check Valve designed for fluid control applications. Its robust construction and compact design allow for easy installation in hydraulic systems. With a G14 thread connection, it ensures reliable one-way flow and prevents backflow, ensuring efficient and safe operation in various industries.

Products

Specifications of ICV2000-G14 Screw-In Check Valve

Product ModelICV2000-G14 SCREW-IN CHECK VALVE
Operating Pressure350 bar ( 5100 psi)
FlowSee Performance Chart
Internal Leakage0.10 ml/minute (2 drops/minute) max. at 350 bar (5100 psi)
Crack Pressure DefinedGauge bar (psi) evident at① at 16.4 ml/min. (1 cu. in./minute) attained
Standard Bias Springs at Crack0.5 bar (7.3 psi)
Temperature-40°℃~120°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to420 cSt (50 to 2000 sus).Installation: No restrictions
CavityAs below figure


Features of ICV2000-G14 Screw-In Check Valve

1. Hardened seat for long life and low leakage.
2. Miniature size.
3. Fast closing and seating.


Operation Symbol of ICV2000-G14 Screw-In Check Valve

Operation Symbol of ICV2000-G14 Screw-In Check Valve

The ICV2000-G14 allows flow from ① to ②, while normally blocking oil flow in the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at ① to open to ②.

Performance/Dimension/Sectional Drawing of ICV2000-G14 Screw-In Check Valve

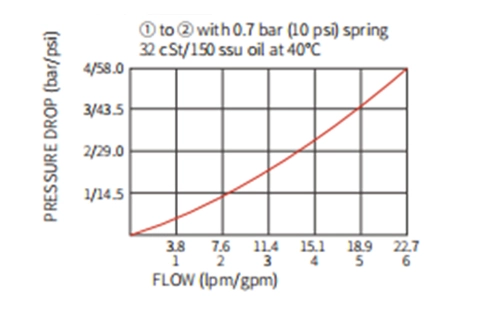

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICV2000-G14 Screw-In Check Valve

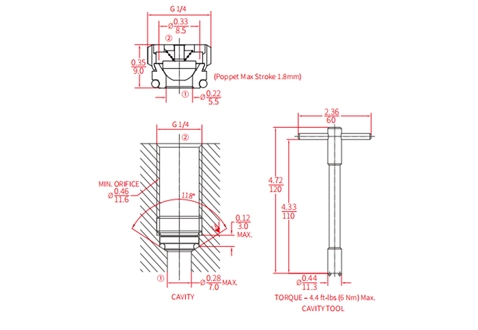

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICV2000-G14 Screw-In Check Valve
