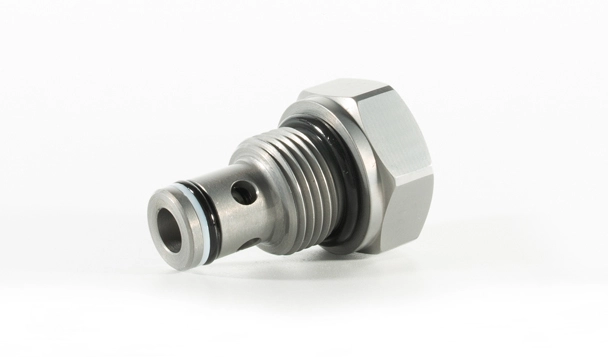

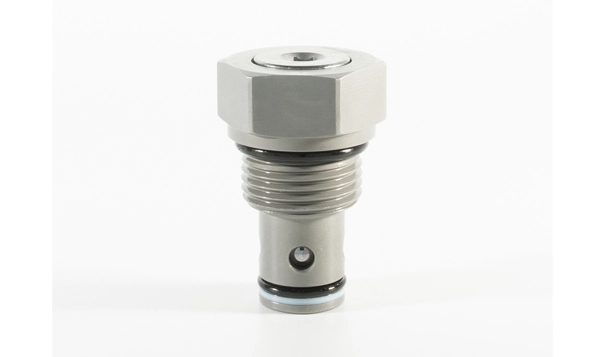

ICV10-C20 Ball Valve, Check Valve

The ICKBB Check Valve Pilot-to-Open is a high-performance valve designed to allow flow in one direction while preventing backflow. It features a pilot mechanism that opens the valve under specific conditions, ensuring reliable and efficient operation in various industrial applications.

Products

Specifications of ICV10-C20 Ball Valve, Check Valve

Product ModelICV10-C20 BALL VALVE, CHECK VALVE
Operating Pressure525 bar (7500 psi)
FlowSee Performance Chart
Internal Leakage0.25 ml/min. (5 drops/minute) max. at 350 bar (5100 psi)
Crack Pressure DefinedGauge bar (psi) evident at ① at 16.4 ml/min. (1 cu. in./minute) attained
Standard Bias Springs at Crack0.34 bar (5 psi);1 bar (15 psi);2.07 bar (30 psi);4.1 bar (60 psi) ;8.3 bar (120 psi)
Temperature-40°℃~100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIVC10-2,See page 300


Material

CartridgeWeight: 0.12 kg. (0.25 lbs.); Steel with hardened work surfaces. Zinc-Nickel-plated exposed surfaces.
SealD type seal ring.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized highstrength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

Features of ICV10-C20 Ball Valve, Check Valve

1. Hardened seat for long life and low leakage.
2. Optional bias springs for back-pressure application flexibility.
3. Fully guided check assembly.
4. Miniature size.
5. Fast closing and seating.


Operation Symbol of ICV10-C20 Ball Valve, Check Valve

Operation Symbol of ICV10-C20 Ball Valve, Check Valve

The ICV10-C20 allows flow passage from ① to②, while normally blocking oil flow in the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at ① to open to ②.

Performance/Dimension/Sectional Drawing of ICV10-C20 Ball Valve, Check Valve

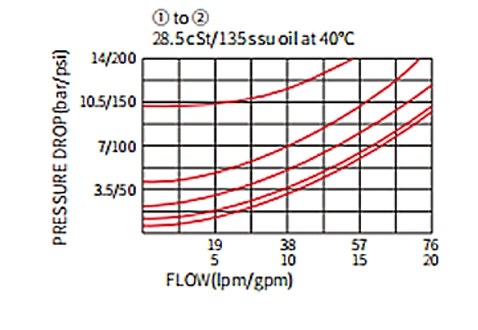

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICV10-C20 Ball Valve, Check Valve

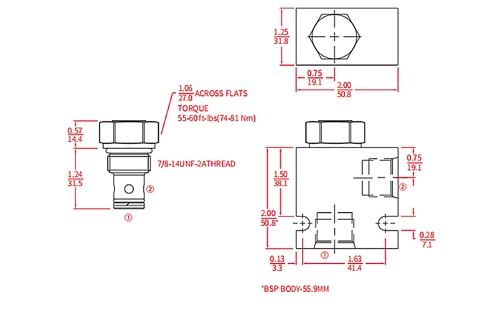

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICV10-C20 Ball Valve, Check Valve

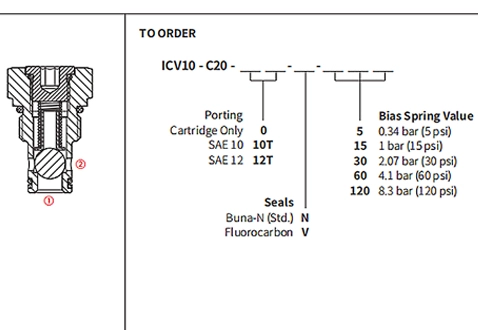

Sectional Drawing
Performance/Dimension/Sectional Drawing of ICV10-C20 Ball Valve, Check Valve
