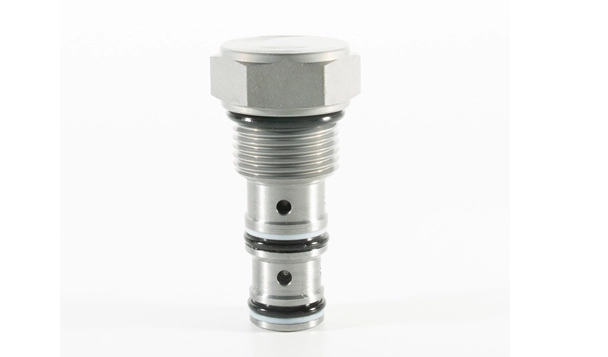

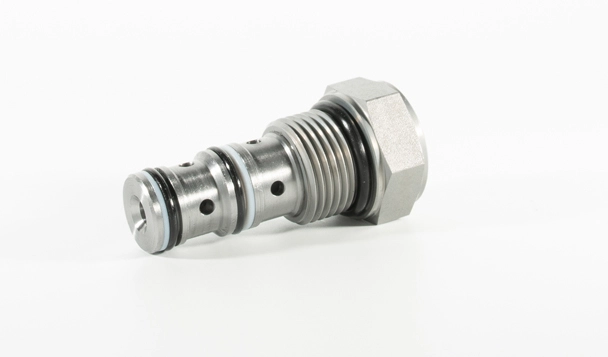

ILS10-B30 Load Shuttle Ball Valve (High Pressure)

The ILS10-B30 Ball Valve, Load Shuttle (High Pressure), is a rugged valve built for high-pressure flow control applications. Its load shuttle mechanism ensures accurate and dependable operation even under extreme pressure conditions. With its durable design, it delivers superior performance and reliability in demanding industrial environments.

Products

Specifications of ILS10-B30 Ball Valve, Load Shuttle

Product ModelILS10-B30 BALL VALVE, LOAD SHUTTLE (HIGH PRESSURE)
Operating Pressure350 bar(5100 psi)
Proof Pressure525 bar(7600 psi)
FlowSee Performance Chart
Internal Leakage0.25 ml/min. max (5 drops/minute) at 350 bar (5100 psi)
Temperature-40°℃~120°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIVC10-3, See page 300


Material

CartridgeWeight: 0.08kg. (0.17 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealBuna-N O-rings and back-up rings (standard).
Standard Ported BodyWeight: 0.36 kg. (0.80 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.


Features of Ball Valve, Load Shuttle (High Pressure)

1. Rapid response to load direction changes.
2. Industry common cavity.


Operation Symbol of Ball Valve, Load Shuttle (High Pressure)

Operation Symbol of Ball Valve, Load Shuttle (High Pressure)

The ILS10-B30 will allow flow from the higher pressure port ① or ③ to the port ②. The valve is commonly used to direct oil from the high-pressure side of a bidirectional hydraulic motor to a pressure-released hydraulic brake.

Performance/Dimension/Sectional Drawing of Ball Valve, Load Shuttle (High Pressure)

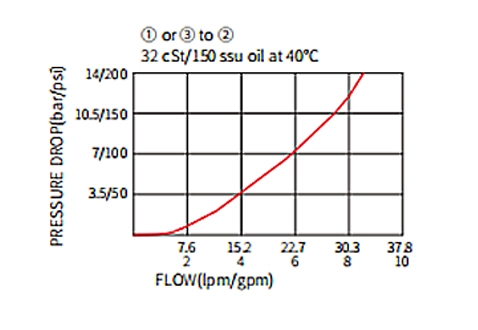

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of Ball Valve, Load Shuttle (High Pressure)

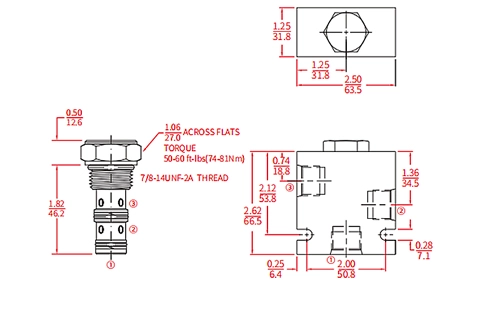

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of Ball Valve, Load Shuttle (High Pressure)

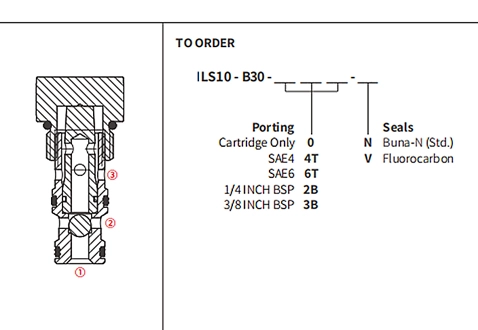

Sectional Drawing
Performance/Dimension/Sectional Drawing of Ball Valve, Load Shuttle (High Pressure)
