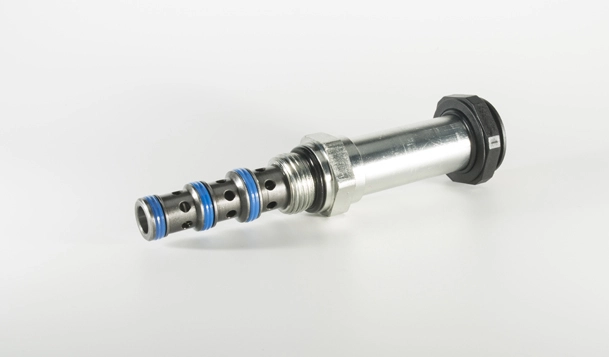

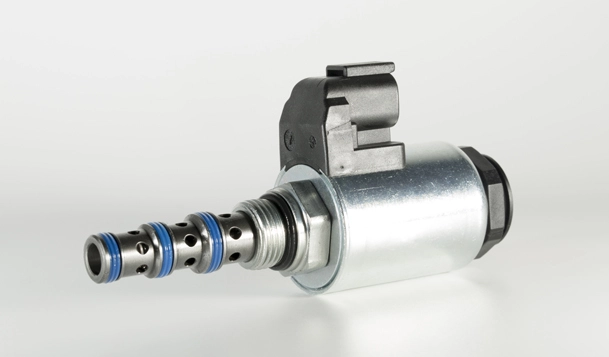

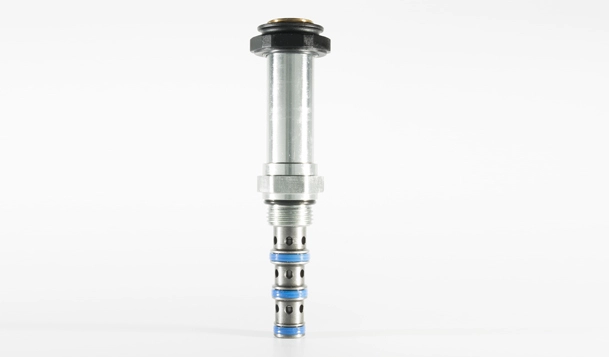

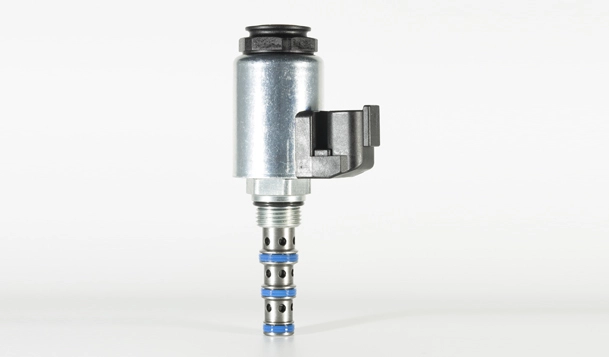

ISV08-40R Spool 4 Way 2 Position Solenoid Valve

The ISV08-40R is a durable spool valve designed for reliable fluid control in demanding industrial applications. With its 4-way and 2-position functionality, it provides accurate management of the fluid flow direction. This component is suitable for high-pressure environments, making it ideal for challenging conditions.

Products

Specifications of ISV08-40R Spool 4 Way 2 Position Solenoid Valve

Product ModelISV08-40R SPOOL, 4-WAY, 2-POSITION
Operating Pressure350 bar (5100 psi)
Flow30L/min(8 gpm)
Internal Leakage82 ml/min. max. at 210 bar (5075 psi)
Temperature-40°℃~100°C
Response TimePull-In: 150 msec.; Drop-Out: 150 msec
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIVC08-4, See page 299


Material

Cartridge0.23 kg. (0.51 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealD type seal rings.


Features of ISV08-40R Spool 4 Way 2 Position Solenoid Valve

1. Continuous-duty rated coil.
2. Hardened seat for long life and low leakage.
3. Optional coil voltages and terminations.
4. All ports may be fully pressurized.
5. Heavy-duty waterproof E-Coils rated up to IP69K

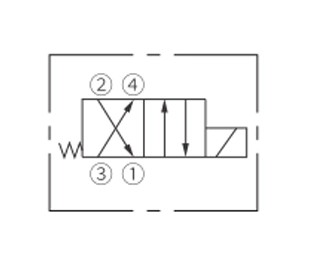

Operation Symbol of ISV08-40R Spool 4 Way 2 Position Solenoid Valve

Operation Symbol of ISV08-40R Spool 4 Way 2 Position Solenoid Valve

When de-energized, the ISV08-40R flow paths are ② to ① and ③ to ④.When energized, the cartridge’s spool shifts to open ③ to ② and ④ to①.

Performance/Dimension/Sectional Drawing of ISV08-40R Spool 4 Way 2 Position Solenoid Valve

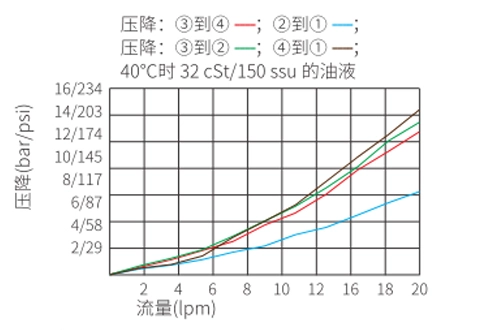

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of ISV08-40R Spool 4 Way 2 Position Solenoid Valve

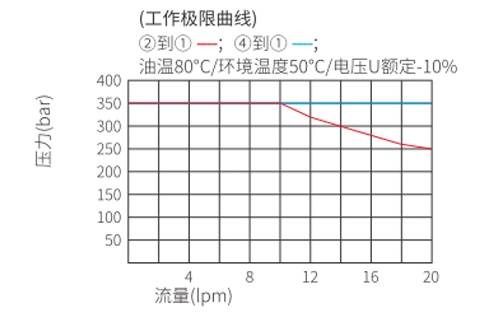

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of ISV08-40R Spool 4 Way 2 Position Solenoid Valve

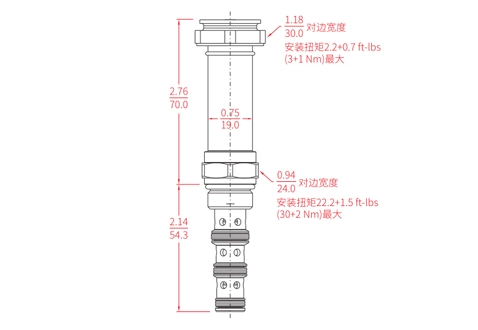

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ISV08-40R Spool 4 Way 2 Position Solenoid Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of ISV08-40R Spool 4 Way 2 Position Solenoid Valve
