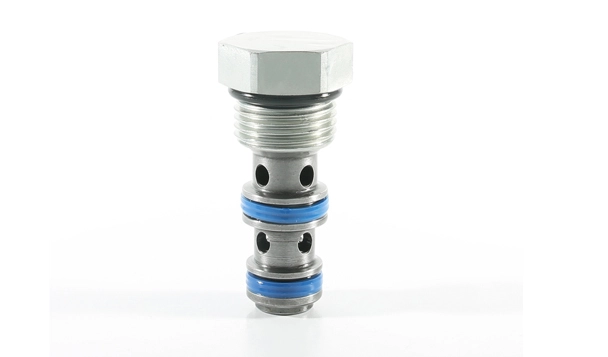

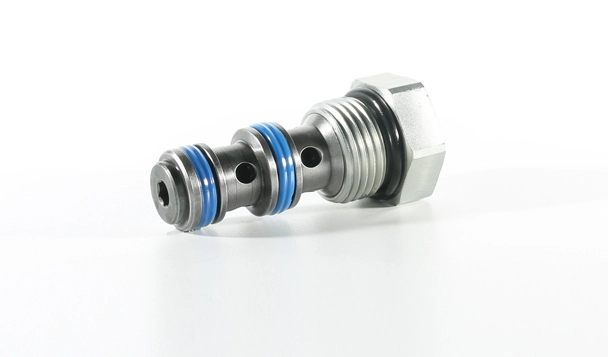

ILS08-30 Load Shuttle Ball Valve

The ILS08-30 Ball Valve, Load Shuttle, is a robust valve designed for efficient flow control. Its load shuttle mechanism enables precise and reliable operation, making it ideal for applications requiring accurate control of media flow. With its durable construction, it ensures long-lasting performance in industrial settings.

Products

Specifications of ILS08-30 Ball Valve, Load Shuttle

Product ModelILS08-30 BALL VALVE, LOAD SHUTTLE
Operating Pressure240 bar(3500 psi)
Proof Pressure390 bar(5700 psi)
FlowSee Performance Chart
Internal Leakage0.25 ml/min. max (5 drops/minute) at 207 bar (3000 psi)
Temperature-40°℃~100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIVC08-3,See page 298


Material

CartridgeWeight: 0.08 kg. (0.17 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealO-rings and back-up rings
Standard Ported BodyWeight: 0.27 kg. (0.6 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

Features of ILS08-30 Ball Valve, Load Shuttle

1. Rapid response to load direction changes.
2. Compact size.


Operation Symbol of ILS08-30 Ball Valve, Load Shuttle

Operation Symbol of ILS08-30 Ball Valve, Load Shuttle

The ILS08-30 will allow flow from the higher pressure port ①or ③to the port ②. The valve is commonly used to direct oil from the high-pressure side of a bidirectional hydraulic motor to a pressure-released hydraulic brake.

Performance/Dimension/Sectional Drawing of ILS08-30 Ball Valve, Load Shuttle

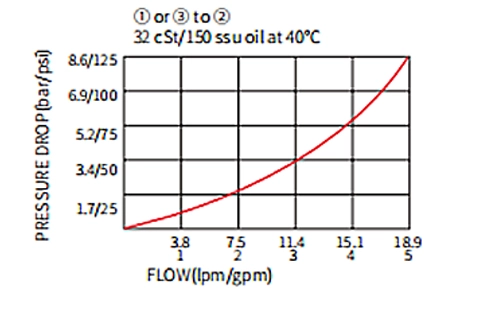

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ILS08-30 Ball Valve, Load Shuttle

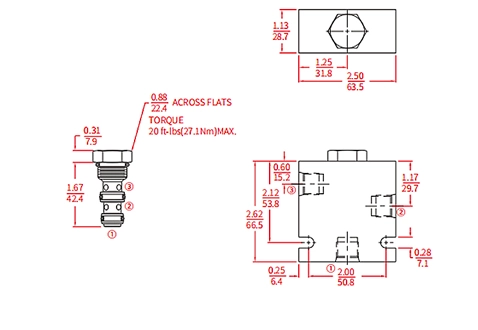

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ILS08-30 Ball Valve, Load Shuttle

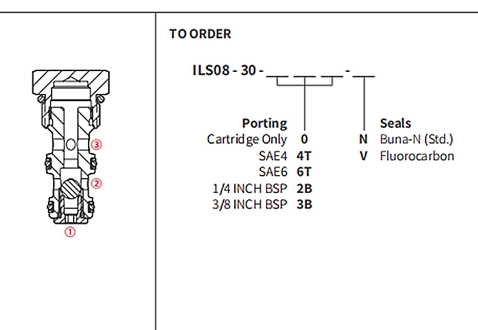

Sectional Drawing
Performance/Dimension/Sectional Drawing of ILS08-30 Ball Valve, Load Shuttle
