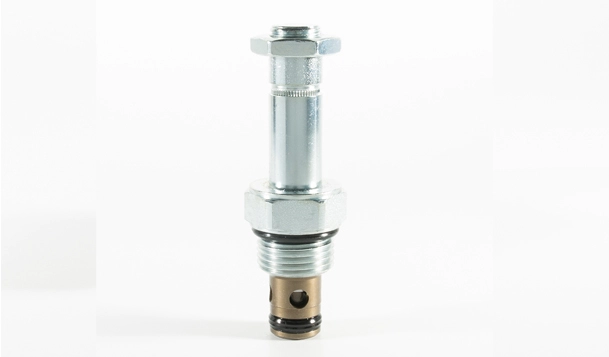

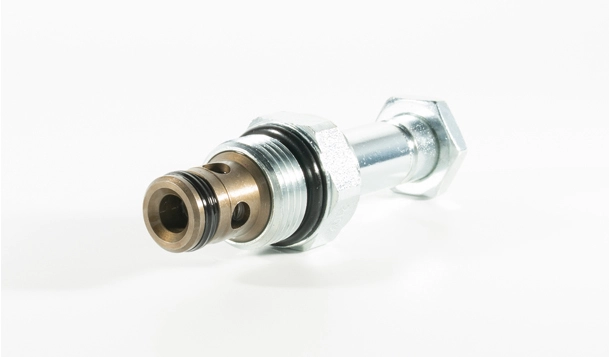

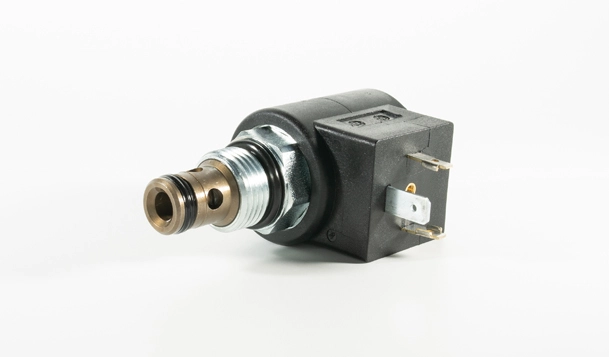

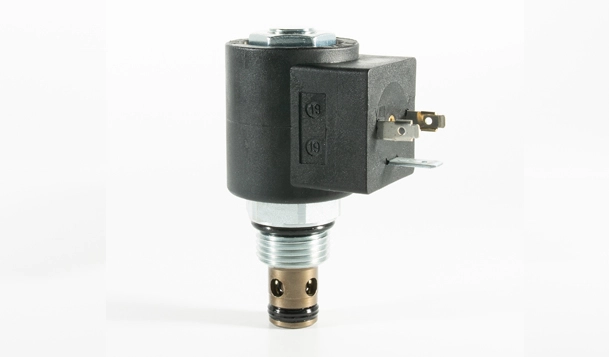

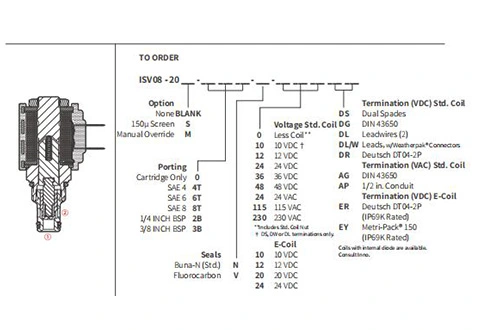

ISV08-20 Poppet 2-Way N.C. Solenoid Valve (Standard)

A solenoid-operated, 2-way, normally closed, piloted poppet-type, screw-in hydraulic cartridge valve, intended to act as a blocking or load-holding device for  low flow circuits.

Products

Specifications of ISV08-20 Poppet 2-Way N.C. Solenoid Valve

Operating Pressure207 bar (3000 psi)
Proof Pressure255 bar (3700 psi)
FlowSee Performance Chart
Internal Leakage0.15 ml/min. (3 drops/minute) max. at 207 bar (3000 psi)
Temperature-40 to 100°C
Coil Duty RatingContinuous from 85% to 115% of nominal voltage
Response TimeFirst indication of change of state with 100% voltage supplied at
80% of nominal flow rating:
Energized: 40 msec.; De-energized: 46 msec.
Initial Coil Current Draw at 20°CStandard Coil: 1.2 amps at 12 VDC;
0.13 amps at 115 VAC (full wave rectified).
E-Coil: 1.4 amps at 12 VDC; 0.7 amps at 24 VDC
Minimum Pull-in Voltage85% of nominal at 207 bar (3000 psi)
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 sus)
InstallationNo restrictions
CavityIVC08-2; See page 297


Materials

CartridgeWeight: 0.09 kg. (0.20 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal rings.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Ductile iron and steel bodies available; dimensions may differ.
Consult Inno.
Standard CoilWeight: 0.11 kg. (0.25 lbs.); Unitized thermoplastic encapsulated,
Class H high temperature magnetwire.
E-CoilWeight: 0.14 kg. (0.3 lbs.); Perfect wound, fully encapsulated with rugged
external metal shell; Rated up to IP69K with integral connectors.


Features of ISV08-20 Poppet 2-Way N.C. Solenoid Valve

1. Continuous-duty rated coil.
2. Hardened precision spool and cage for long life  and low leakage.
3. Optional coil voltages and terminations.
4. Manual override option.
5. Cartridges are voltage interchangeable.
6. Unitized, molded coil design.
7. Industry common cavity.
8. Optional waterproof E-Coils rated up to IP69K.
9. Compact size.

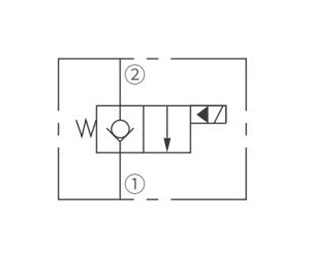

Operation Symbol of ISV08-20 Poppet 2-Way N.C. Solenoid Valve

Operation Symbol of ISV08-20 Poppet 2-Way N.C. Solenoid Valve

When de-energized, the ISV08-20 acts as a check valve, allowing flow from ① to ②, while blocking flow from ② to ①. When energized, the cartridge's poppet lifts to open the ② to ① flow path. In this mode, flow from ① to ② is severely restricted.


Operation of Manual Override Option


To override, push button in, twist counterclockwise 180°, and release. In this position, the valve will remain open. To return to normal operation, push button in, twist clockwise 180°, and release. Override will be detented in this position.

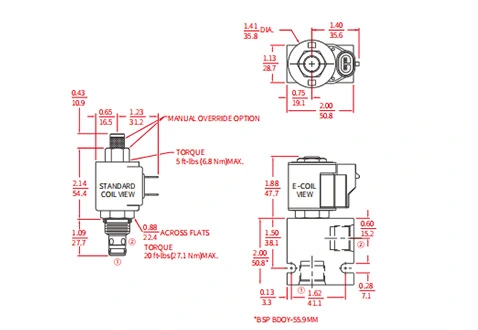

Performance/Dimension/Sectional Drawing of ISV08-20 Poppet 2-Way N.C. Solenoid Valve

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ISV08-20 Poppet 2-Way N.C. Solenoid Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of ISV08-20 Poppet 2-Way N.C. Solenoid Valve

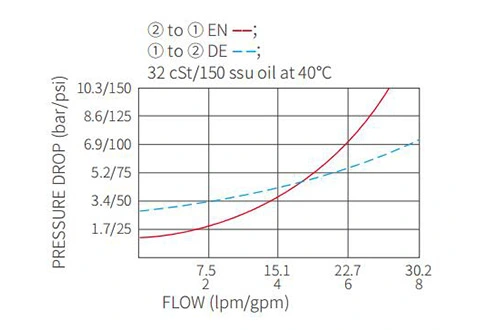

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ISV08-20 Poppet 2-Way N.C. Solenoid Valve
