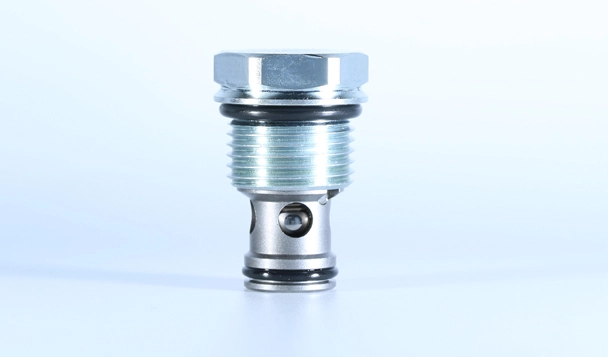

ICV10-D20 Ball Valve, Check Valve

This is a highly functional directional control valve that integrates the features of a ball valve and a check valve into a single unit. This valve is specifically designed to provide accurate and precise control over fluid flow while ensuring the prevention of backflow. The ball valve component allows for efficient regulation of fluid passage, enabling operators to fine-tune the flow rate and achieve optimal performance in various applications. At the same time, the check valve function guarantees that the flow direction remains unidirectional, preventing any undesired reverse flow. ICV10-D20 offers a reliable and efficient solution for systems that require both precise flow control and effective backflow prevention, such as pneumatic systems, industrial machinery, and chemical processing plants.

Products

Specifications of ICV10-D20 Ball Valve, Check Valve

Operating Pressure420 bar (6100 psi)
FlowSee Performance Chart
Internal Leakage0.10 ml/min. (2 drops/minute) max. at 420 bar (6100 psi)
Crack Pressure DefinedGauge bar (psi) evident at ① at 16.4 ml/min. (1 cu. in./
minute) attained
Standard Bias Springs at Crack<0.5 bar (7 psi); 7 bar (100 psi)
Temperature-40 to 100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of
7.4 to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC10-2; See page 300


Material

CartridgeWeight: 0.08 kg. (0.17 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal ring.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized highstrength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Ductile iron and steel bodies available; dimensions may differ.
Consult Inno.


Features of ICV10-D20 Ball Valve, Check Valve

1. Hardened seat for long life and low leakage.
2. Optional bias springs for back-pressure application flexibility.
3. Fully guided check assembly.
4. Fast closing and seating.

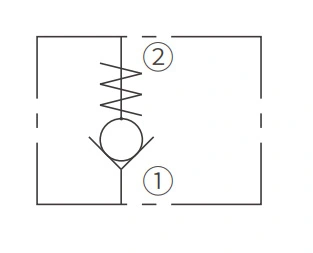

Operation Symbol of ICV10-D20 Ball Valve, Check Valve

Operation Symbol of ICV10-D20 Ball Valve, Check Valve

The ICV10-D20 allows flow passage from ① to ②, while normally blocking oil flow in the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at ① to open to ②.

Performance/Dimension/Sectional Drawing of ICV10-D20 Ball Valve, Check Valve

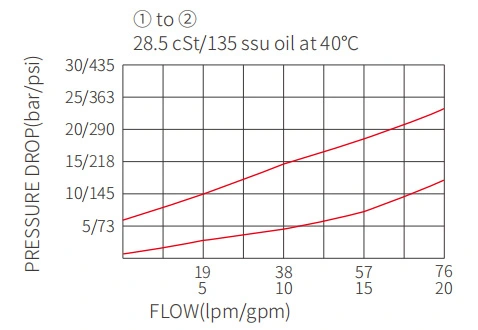

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICV10-D20 Ball Valve, Check Valve

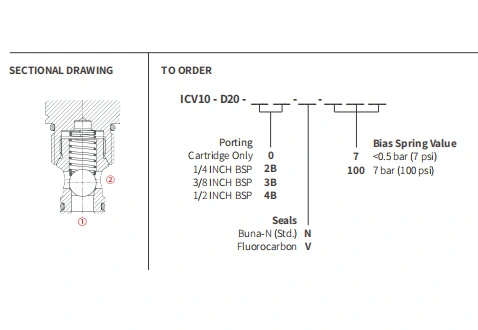

Sectional Drawing
Performance/Dimension/Sectional Drawing of ICV10-D20 Ball Valve, Check Valve

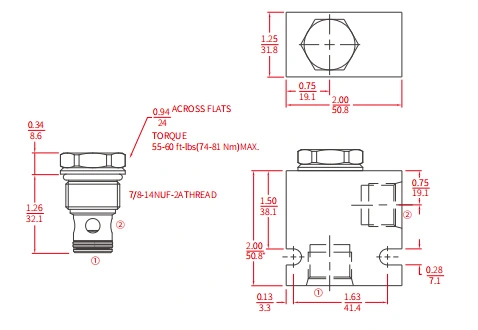

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICV10-D20 Ball Valve, Check Valve
