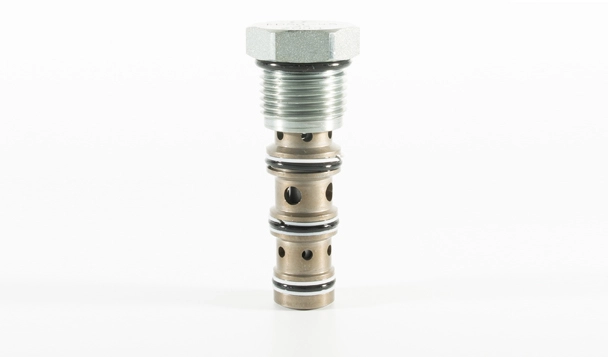

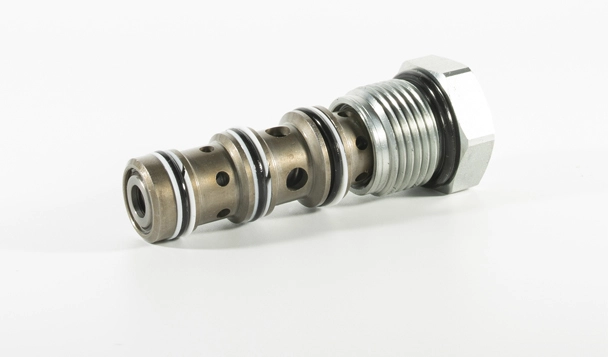

IFD50-45 Flow Divider/Combiner

This device allows for the division or combination of fluid flow, enabling efficient distribution of hydraulic power. Whether used in mobile machinery, construction equipment, or industrial systems, the IFD50-45 ensures optimal performance by evenly splitting or merging hydraulic flow. Its robust construction and reliable operation make it a valuable asset in hydraulic systems that require precise flow control and power distribution.

Products

Specifications of IFD50-45 Flow Divider/Combiner

Operating Pressure345 bar (5000 psi)

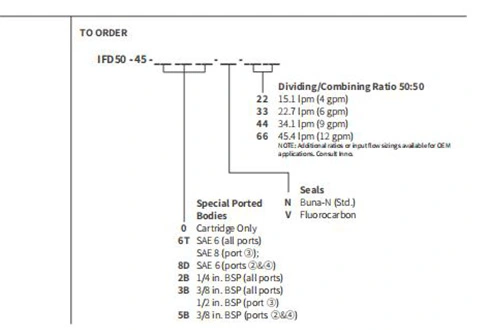

FlowSee the ordering code in the right
Flow Accuracy10% from 25 to 100% of maximum rated flow
Temperature-40 to 100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC10-4; See page 302


Material

CartridgeWeight: 0.10 kg. (0.23 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal rings.
Standard Ported BodyWeight: 0.34 kg. (0.75 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Note: Ductile iron and steel bodies are required for operation over
240 bar (3500 psi).
Dimensions may differ; Consult Inno.


Features of IFD50-45 Flow Divider/Combiner

1. Hardened parts for long life.
2. Quiet, modulated response.
3. Wide operating flflow range.
4. Synchronizing in dividing and combining modes.
5. Floating cage — High installation torque.
6. Industry common cavity.

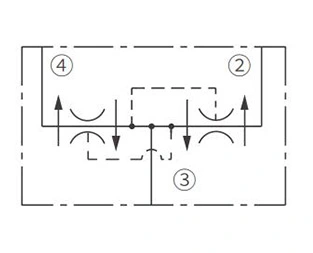

Operation Symbol of IFD50-45 Flow Divider/Combiner

Operation Symbol of IFD50-45 Flow Divider/Combiner

In the dividing mode, the IFD50-45 will divert input flow from port ③ to ports ②  and ④, based on the ratio specifified, regardless of operating pressure. When the flow direction is reversed the valve will combine flows from ② and ④ to port ③. Synchronizing flow is provided in both the dividing and combining modes at  "bottomed" conditions in cylinder applications and at "stalled" conditions in  motor applications.

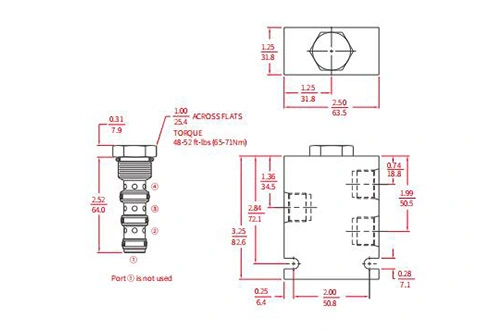

Performance/Dimension/Sectional Drawing of IFD50-45 Flow Divider/Combiner

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IFD50-45 Flow Divider/Combiner
Sectional Drawing
Performance/Dimension/Sectional Drawing of IFD50-45 Flow Divider/Combiner

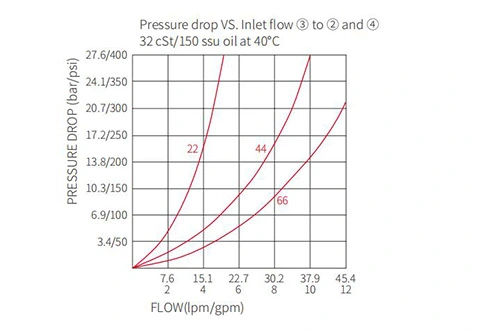

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IFD50-45 Flow Divider/Combiner
