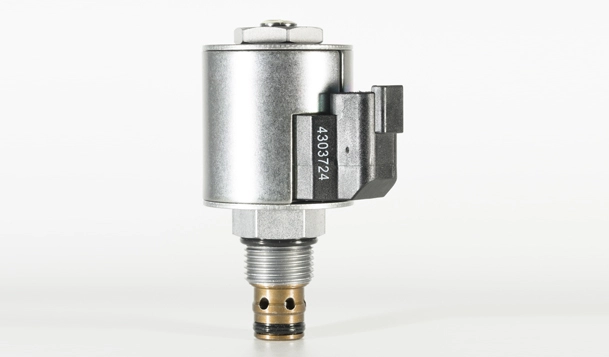

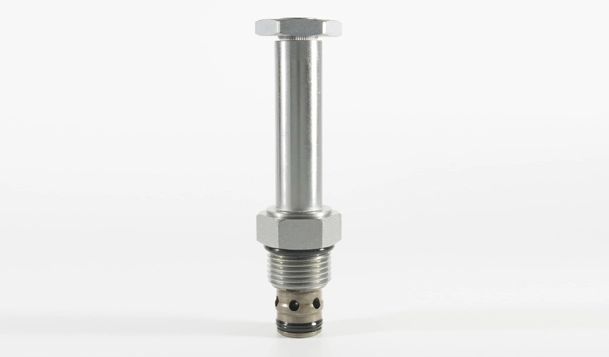

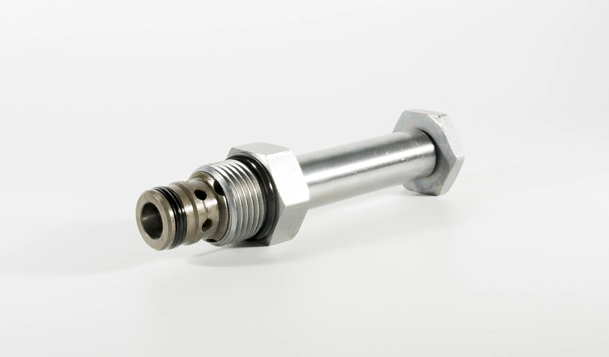

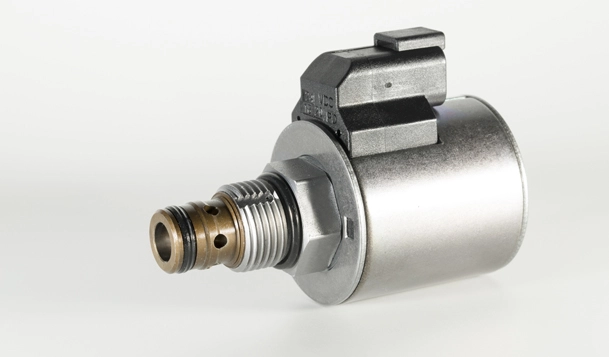

ITS10-27 Piloted Relief Valve

A screw-in, cartridge-style, pilot-operated, spool-type hydraulic relief valve, which can be infifinitely adjusted across a prescribed range using a variable electric input. Pressure output is proportional to DC current input. This valve is intended for use as a pressure limiting device in demanding applications.

Products

Specifications of ITS10-27 Piloted Relief Valve

Operating Pressure240 bar (3500 psi)
Maximum Control Current1.10 A for 12 VDC coil; 0.55 A for 24 VDC coil
Relief Pressure Range from Zero to Maximum Control Current

A: 207 to 10.3 bar (3000 to 150 psi);

B: 138 to 10.3 bar (2000 to 150 psi);

C: 69 to 10.3 bar (1000 to 150 psi)
Rated Flow75.7 Ipm (20 gpm),DP=14.8 bar (215 psi), Cartridge only, ① to ② coil
energized
Maximum Pilot pressure0.76 lpm (0.2 gpm)
HysteresisLess than 3%
Flow PathFree Flow:① to ②coil energized; Relieving:  ① to ②coil de-energized
Temperature-40 to 120C
FluidsMineral-based or synthetics with lubricating properties at viscosities of
7.4 to 420 cSt (50 to 2000 sus)
Installation RecommendationWhen possible, the valve should be mounted
below the reservoir oil level. This will maintain oil in the armature
preventing trapped air instability. If this is not feasible, mount the valve
horizontally for best results.
CavityIVC10-2; See page 275


Materials

CartridgeWeight: 0.18 kg. (0.4 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces;
Seal:O-rings and back-up rings. Polyurethane seals recommended for
pressures over 240 bar (3500 psi).
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi); Ductile iron and steel
bodies available; dimensions may differ; Consult Inno.
Standard CoilWeight: 0.27 kg. (0.60 lbs.); Unitized thermoplastic encapsulated,
Class H high temperature magnetwire.
E-CoilWeight: 0.41 kg. (0.90 lbs.); Perfect wound, fully encapsulated with rugged
external metal shell; Rated up to IP69K with integral connectors.


Features of ITS10-27 Piloted Relief Valve

1. 12 and 24 volt coils standard.
2. Industry common cavity.
3. Optional waterproof E-Coils rated up to IP69K.

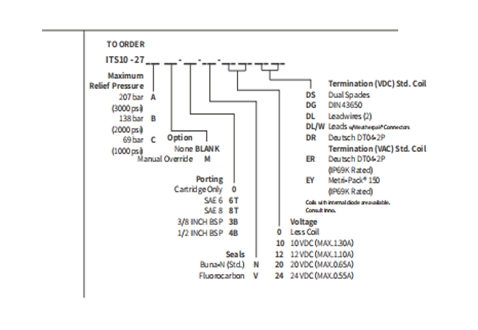

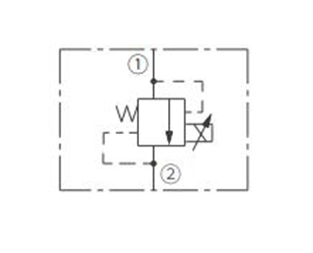

Operation Symbol of ITS10-27 Piloted Relief Valve

Operation Symbol of ITS10-27 Piloted Relief Valve

The ITS10-27 blocks flow from① to ② until sufficient pressure is present at ① to open the valve by overcoming the preset-induced spring force. With no current applied, the valve will relieve at±50 psi of the range maximum. Applying current to the coil decreases the induced spring force, thereby reducing the valve setting.


Note


This valve is ideal for hydraulic fan drive applications.

Performance/Dimension/Sectional Drawing of ITS10-27 Piloted Relief Valve

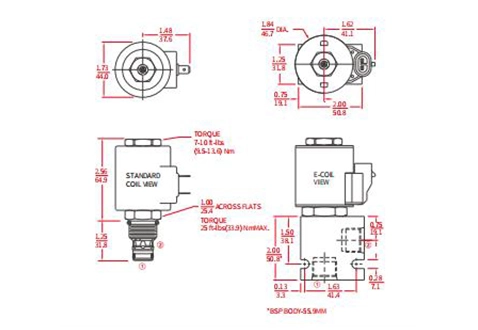

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ITS10-27 Piloted Relief Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of ITS10-27 Piloted Relief Valve

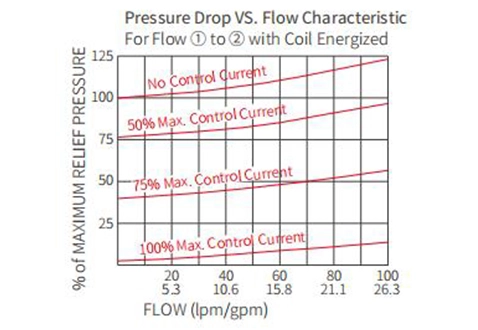

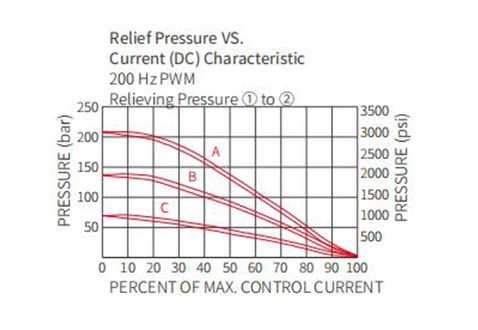

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ITS10-27 Piloted Relief Valve

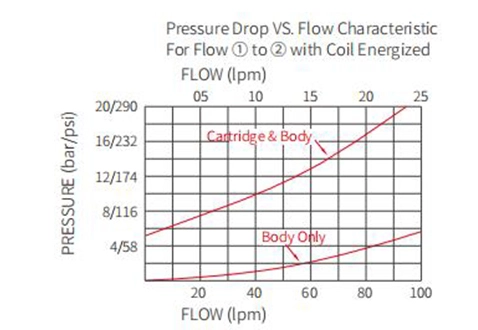

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ITS10-27 Piloted Relief Valve
PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ITS10-27 Piloted Relief Valve
