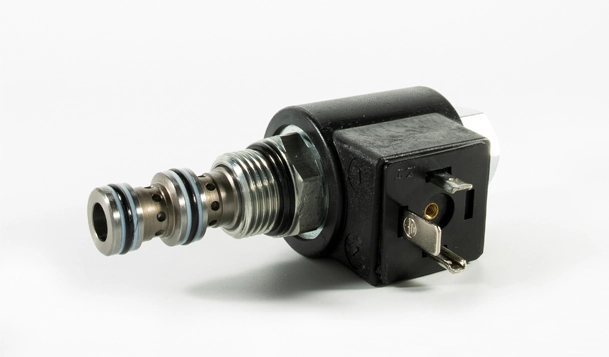

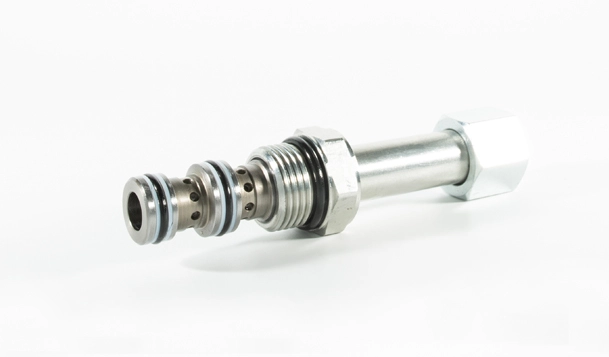

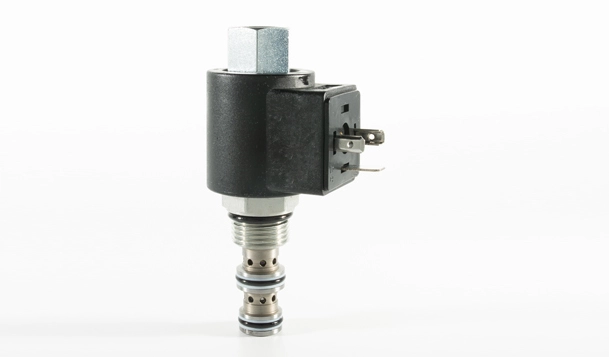

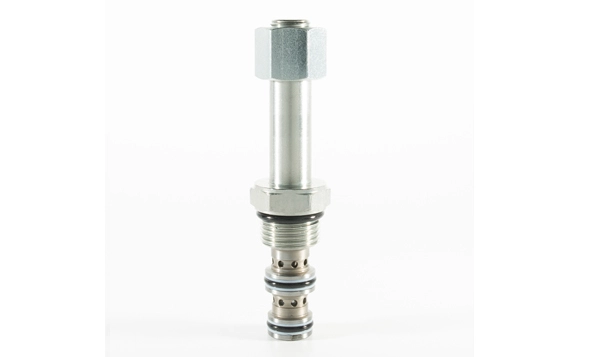

ISV08-30 Spool 3-Way 2-Position Solenoid Valve

The ISV08-30 Spool, 3-Way, 2-Position valve is a compact and efficient valve designed for controlling fluid flow in hydraulic systems. With its 3-way configuration and 2-position operation, it provides precise control over the direction of fluid flow. Its durable construction and reliable performance make it suitable for a wide range of industrial applications.

Products

Specifications of ISV08-30 Spool 3-Way 2-Position Solenoid Valve

Product ModelISV08-30 SPOOL, 3-WAY, 2-POSITION
Operating Pressure207 bar(3000 psi) Max
FlowSee Performance Chart
Internal LeakageDe-energized: 82 ml/min. at 207 bar;Energized: 164 ml/min. at 207 bar
Temperature-40°℃~100°C
Coil Duty RatingContinuous from 85% to 115% of nominal voltage
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu)
CavityIVC08-3,See page 298


Material

CartridgeWeight: 0.13 kg. (0.28 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealD type seal rings.
Standard Ported BodyWeight: 0.27 kg. (0.60 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).Ductile iron and steel bodies available; dimensions may differ. Consult Inno.
Standard CoilWeight: 0.11 kg. (0.25 lbs.); Unitized thermoplastic encapsulated, Class H high temperature magnetwire.
E-CoilWeight: 0.14 kg. (0.30 lbs.); Perfect wound, fully encapsulated with rugged external metal shell; Rated up to IP69K with integral connectors.


Features of ISV08-30 Spool 3-Way 2-Position Solenoid Valve

1. Continuous-duty rated coil.
2. Hardened seat for long life.
3. Optional coil voltages and terminations.
4. All ports may be fully pressurized.
5. Manual override option.
6. Heavy-duty waterproof E-Coils rated up to IP69K.


Operation Symbol of ISV08-30 Spool 3-Way 2-Position Solenoid Valve

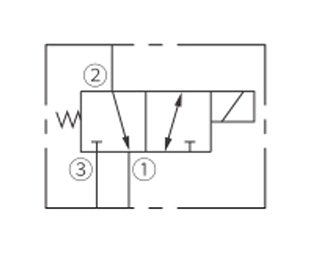

Operation Symbol of ISV08-30 Spool 3-Way 2-Position Solenoid Valve

When de-energized, the ISV08-30 allows flow from ② to ①.When energized, the cartridge’s spool shifts to open the ③ to ② flow path.

Performance/Dimension/Sectional Drawing of ISV08-30 Spool 3-Way 2-Position Solenoid Valve

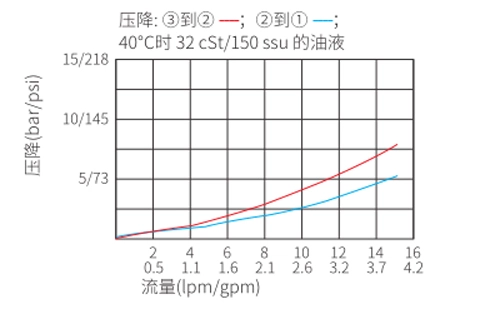

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of ISV08-30 Spool 3-Way 2-Position Solenoid Valve

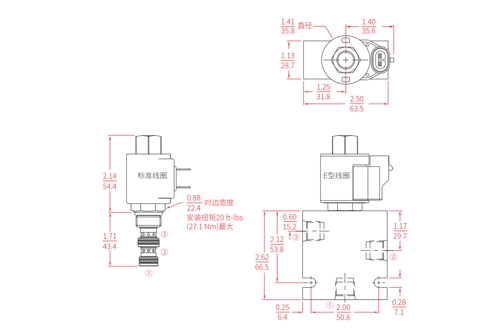

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ISV08-30 Spool 3-Way 2-Position Solenoid Valve

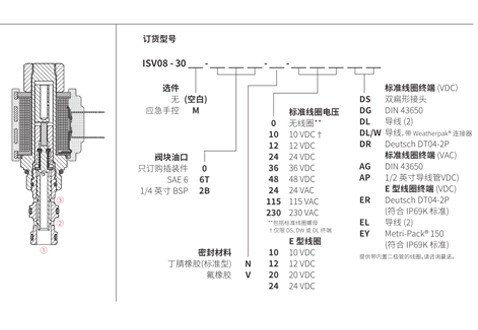

Sectional Drawing
Performance/Dimension/Sectional Drawing of ISV08-30 Spool 3-Way 2-Position Solenoid Valve
