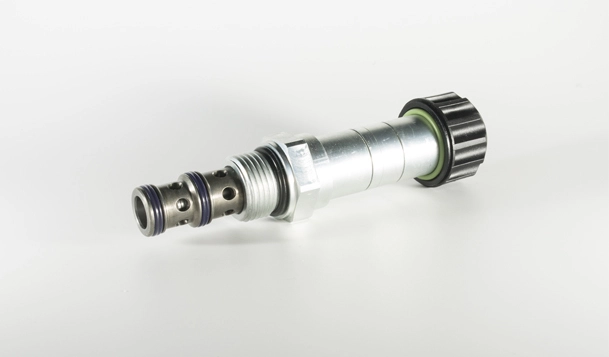

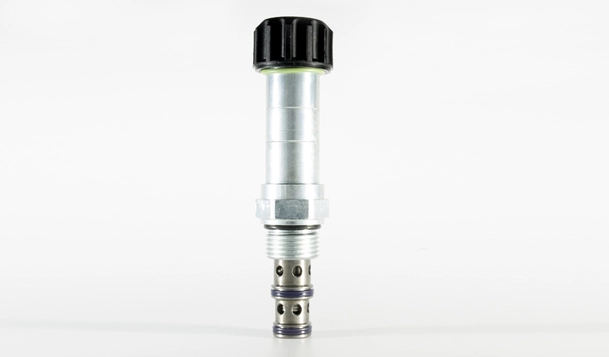

ISV10-30 Spool 3-Way 2-Position Solenoid Valve

The ISV10-30 Spool, 3-Way, 2-Position valve is a versatile hydraulic valve used for controlling fluid flow in various industrial applications. With its 3-way configuration and 2-position operation, it enables precise control over the direction of fluid flow. Its robust construction and reliable performance make it an essential component in hydraulic systems requiring efficient flow control.

Products

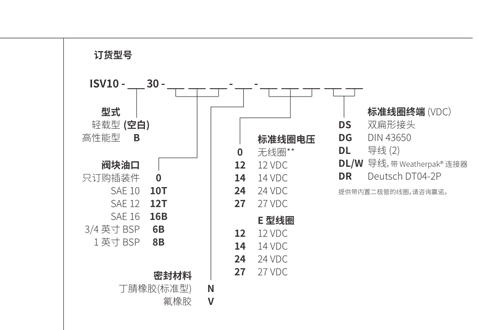

Specifications of ISV10-30 Spool, 3-Way, 2-Position Solenoid Valve

Product ModelISV10-30 SPOOL, 3-WAY, 2-POSITION
Operating PressureLight-loading type / High-performance type: Max. 250 bar (3600 psi) / 350 bar (5100 psi)
FlowLight-loading type / High-performance type: Max. 50 L/min. (13.2 gpm) / 60 L/min. (15.9 gpm)
Internal Leakage80 ml/min. max. at 250 / 350 bar (3600 / 5100 psi)
Temperature-40°℃~100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu). Installation: No restrictions
CavityIVC10-3,See page 300


Material

CartridgeWeight: 0.24 / 0.31 kg. (0.53 / 0.68 lbs.); Steel with hardened work surfaces; Zinc-plated exposed surfaces.
SealD type seal rings.
E-CoilWeight: 0.14 kg. (0.30 lbs.); Perfect wound, fully encapsulated with rugged external metal shell; Rated up to IP69K with integral connectors.

Features of ISV10-30 Spool, 3-Way, 2-Position Solenoid Valve

1. Continuous-duty rated coil.
2. Hardened seat for long life and low leakage.
3. Optional coil voltages and terminations.
4. All ports may be fully pressurized.
5. Heavy-duty waterproof E-Coils rated up to IP69K.


Operation Symbol of ISV10-30 Spool, 3-Way, 2-Position Solenoid Valve

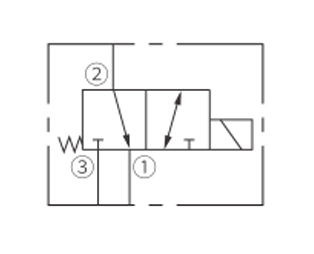

Operation Symbol of ISV10-30 Spool, 3-Way, 2-Position Solenoid Valve

When de-energized, the ISV10-30 allows flow from ② to ①.When energized, the cartridge’s spool shifts to open the ③ to ② flow path.

Performance/Dimension/Sectional Drawing of ISV10-30 Spool, 3-Way, 2-Position Solenoid Valve

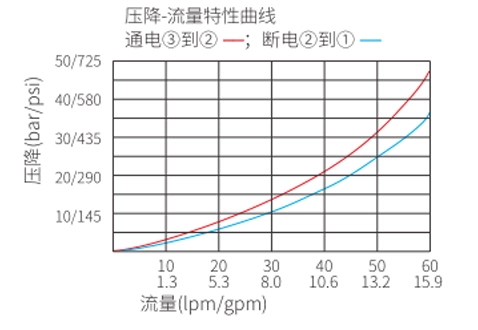

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of ISV10-30 Spool, 3-Way, 2-Position Solenoid Valve

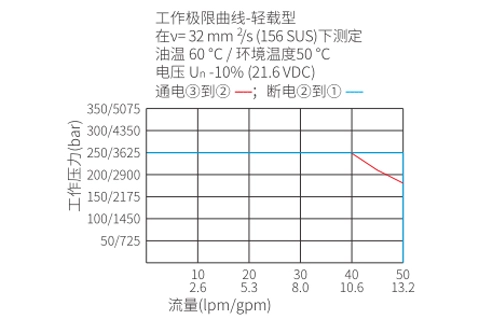

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of ISV10-30 Spool, 3-Way, 2-Position Solenoid Valve

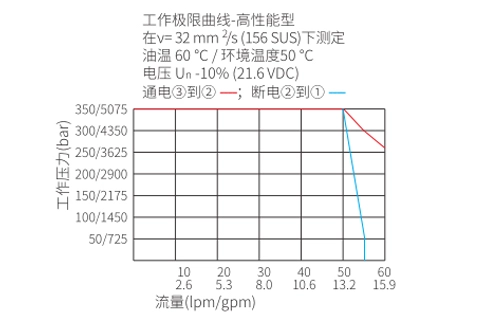

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of ISV10-30 Spool, 3-Way, 2-Position Solenoid Valve

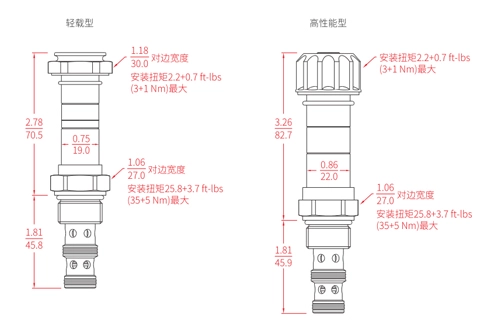

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ISV10-30 Spool, 3-Way, 2-Position Solenoid Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of ISV10-30 Spool, 3-Way, 2-Position Solenoid Valve
