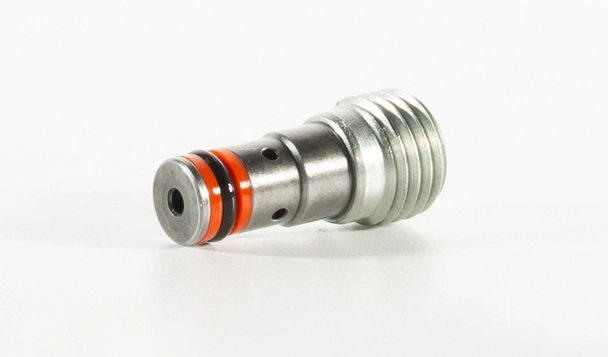

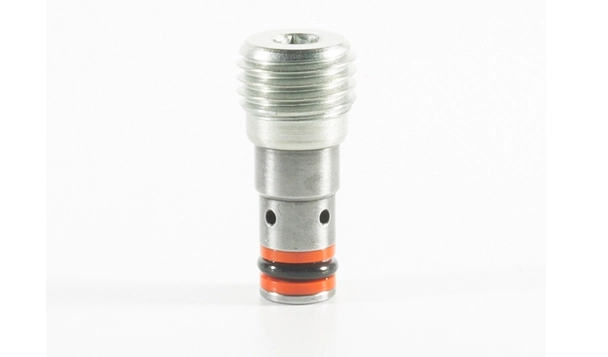

ILS04-B30 Load Shuttle Ball Valve

The ILS04-B30 is a versatile Ball Valve, Load Shuttle combination designed for hydraulic systems. It combines the functionality of a ball valve for flow control and a loaded shuttle for pressure regulation. With its compact design and reliable performance, it provides efficient and precise fluid control in various industrial applications.

Products

Specifications of ILS04-B30 Ball Valve, Load Shuttle

Product ModelILS04-B30 BALL VALVE, LOAD SHUTTLE
Operating Pressure240 bar (3500 psi)
FlowSee Performance Chart
Internal Leakage0.25 ml/min. max (5 drops/minute) at 207 bar (3000 psi)
Temperature-40°℃~120°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIVC04-B3,See page 297


Material

CartridgeWeight: 0.08kg. (0.17 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealO-rings and back-up rings.


Features of ILS04-B30 Ball Valve, Load Shuttle

1. Rapid response to load direction changes.
2. Compact size.


Operation Symbol of ILS04-B30 Ball Valve, Load Shuttle

Operation Symbol of ILS04-B30 Ball Valve, Load Shuttle

The ILS04-B30 will allow flow from the higher pressure port ① or ③ to the port ②. The valve is commonly used to direct oil from the high-pressure side of a bidirectional hydraulic motor to a pressure-released hydraulic brake. The valve can be used as a load sensor valve as well.

Performance/Dimension/Sectional Drawing of ILS04-B30 Ball Valve, Load Shuttle

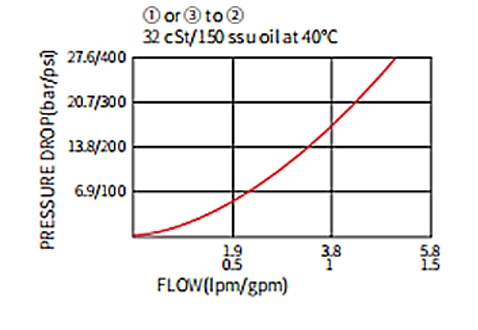

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ILS04-B30 Ball Valve, Load Shuttle

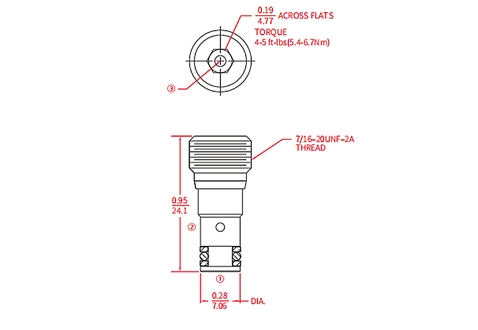

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ILS04-B30 Ball Valve, Load Shuttle

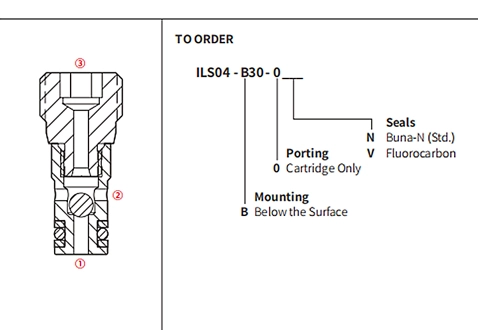

Sectional Drawing
Performance/Dimension/Sectional Drawing of ILS04-B30 Ball Valve, Load Shuttle
