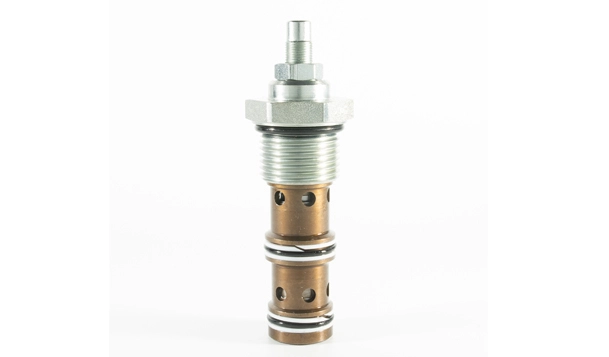

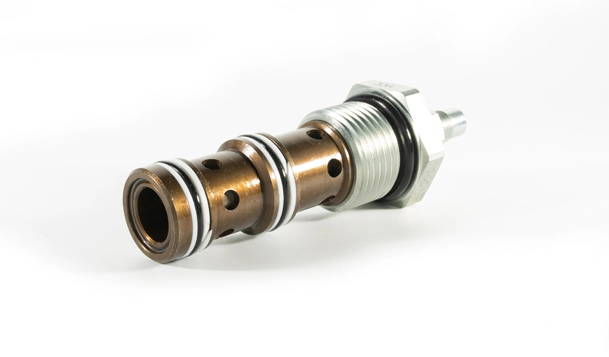

IFR12-33 Flow Fregulator Pressure-Compensated Valve

This valve features pressure compensation functionality, allowing it to maintain a consistent flow rate even when the system pressure fluctuates. By automatically adjusting the valve's opening, the IFR12-33 ensures that the desired flow rate is maintained, regardless of changes in hydraulic pressure. This feature makes it ideal for applications where a consistent flow rate is critical, such as in precision machinery, process control systems, and mobile equipment.

Products

Specifications of IFR12-33

Operating Pressure240 bar (3500 psi)
Flow Rate③-ported regulated flow (Prority+Bypass): 0 to 68 lpm (0 to 18 gpm)
③-ported regulated flow (Bypass Blocked): 0 to 45 lpm (0 to 12 gpm)
Input Flow(Prority+Bypass): 76 lpm (20 gpm) nominal; 114 lpm (30 gpm) max.
Internal Leakage100ml/min. at 207 bar (3000 psi)
Adjustment Torque RequiredRequired torque 1.7 Nm at 207 bar (3000 psi)
Temperature-40 to 100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC12-3; See page 303


Material

CartridgeWeight: 0.34 kg. (0.70 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces; Seal: D type seal rings.
Standard Ported BodyWeight: 0.98 kg. (2.15 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi); Ductile iron and steel
bodies available; dimensions may differ; Consult Inno.


Features of IFR12-33

1. Bypass port ② may be fully pressurized.
2. Hardened steel parts for long life.
3. Quiet, modulated response.
4. Industry common cavity.

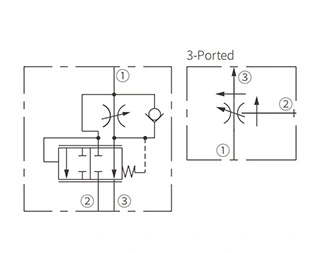

Operation Symbol of IFR12-33

Operation Symbol of IFR12-33

The IFR12-33 maintains a constant flow rate from ③ regardless of load pressure  changes in the system downstream of ③, or in the bypass leg at ②. Reverse flow  (③ to ①) doesn't bypass the control orifice. The regulated flow increases from closed to fully open, with counter-clockwise rotation of the knob.


Note: When used as a bypass flow control in applications where the priority flow  port will be blocked by external valving, the bypass pressure drop will increase  unless a small amount of leakage is provided for the priority port. Consult Inno.

Performance/Dimension/Sectional Drawing of IFR12-33

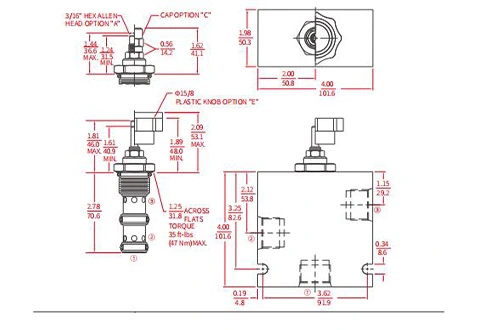

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IFR12-33

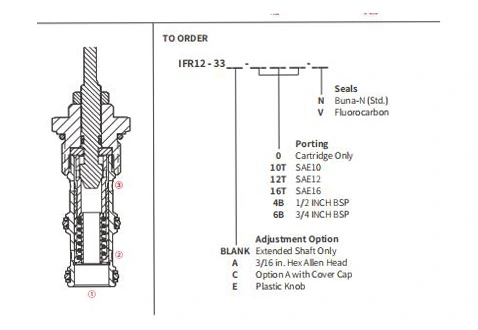

Sectional Drawing
Performance/Dimension/Sectional Drawing of IFR12-33

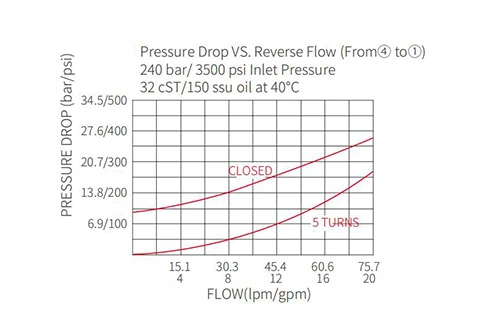

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IFR12-33

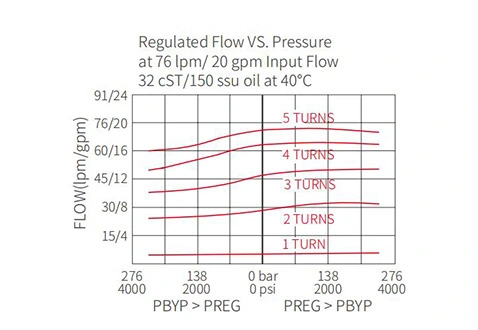

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IFR12-33

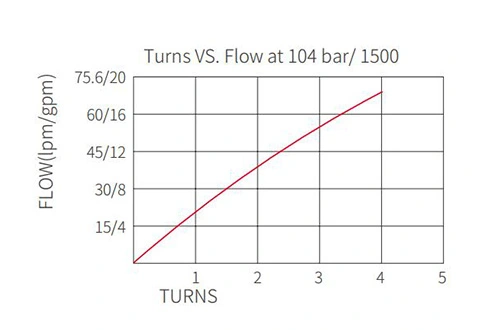

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IFR12-33
