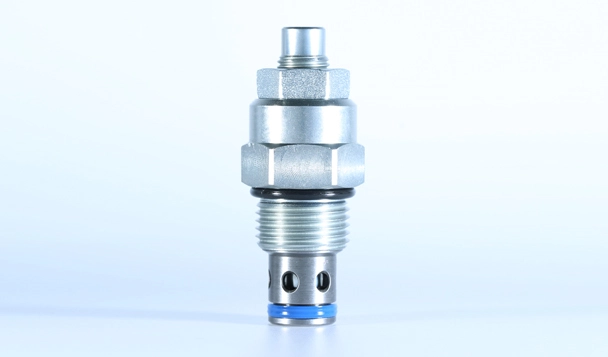

INV10-22 Hydraulic Needle Valve

The INV10-22 hydraulic needle valve is a high-quality valve designed to deliver precise flow control in hydraulic systems. This valve features a needle-like control element that enables operators to finely adjust and regulate fluid flow rates with accuracy. Whether used in hydraulic power units, industrial machinery, or process control systems, the INV10-22 offers a reliable solution for achieving optimal flow control. Its robust construction and dependable performance ensure that hydraulic systems operate at their best, allowing operators to fine-tune flow rates for efficient operation and control.

Products

Specifications of INV10-22 Hydraulic Needle Valve

Operating Pressure240 bar (3500 psi)
Flow57 lpm (15 gpm) nominal at 11 bar (160 psi) at full open 5.5 turns
Internal Leakage0.05 ml/min. (1 drop/minute) max. at shut-off
Temperature-40 to 100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC10-2; See page 300


Material

CartridgeWeight: 0.15 kg. (0.33 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal rings; Anodized aluminum knobs.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Ductile iron and steel bodies available; dimensions may differ.
Consult Inno.


Features of INV10-22 Hydraulic Needle Valve

1. Adjustments cannot be backed out of the valve.
2. Desired setting may be locked down.
3. Hardened parts for long life.
4. Industry common cavity.
5. Positive shut-off.
6. Linear adjustment.

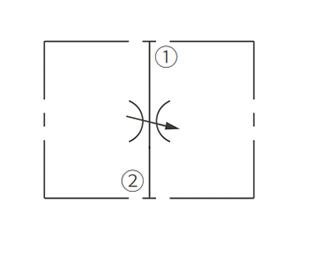

Operation Symbol of INV10-22 Hydraulic Needle Valve

Operation Symbol of INV10-22 Hydraulic Needle Valve

The INV10-22 increases its orifice value from fully closed to fully open with  counterclockwise adjustment rotation. Effffective adjustment is linear over the 5-1/2 turn adjustment range. Settings are lockable in any position.

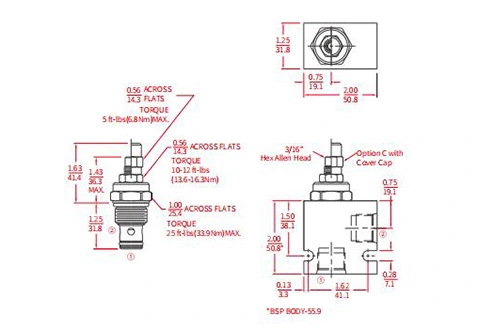

Performance/Dimension/Sectional Drawing of INV10-22 Hydraulic Needle Valve

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of INV10-22 Hydraulic Needle Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of INV10-22 Hydraulic Needle Valve

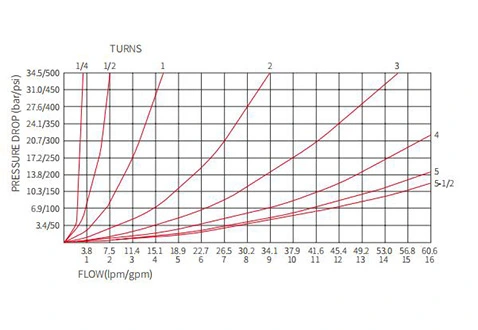

PERFORMANCE (cartridge only)
