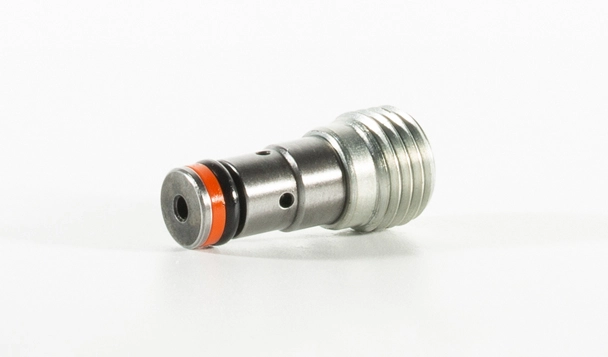

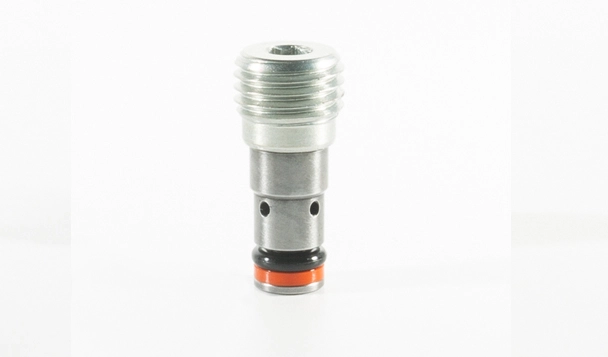

ICV04-B20 Ball Valve, Check Valve

ICV04-B20 Ball Valve and Check Valve have been designed to provide reliable and efficient performance in applications including steam, water and oil. The valves feature robust stainless steel construction, a maximum pressure of PN16 and a temperature range of -20 to +400°C. They feature a PTFE stem seal for leakproof performance and a rising stem design for easy access to the internals. The metal-to-metal seat design offers good sealing performance and long service life. The valves also have blow-out proof stems and ANSI B16.10 face-to-face dimensions and the check valve has spring-assisted closure.

Products

Specifications of ICV04-B20 Ball Valve, Check Valve

Product ModelICV04-B20 BALL VALVE, CHECK VALVE (DOWN-HOLE TYPE)
Operating Pressure240 bar (3500 psi)
FlowSee Performance Chart
Internal Leakage0.10 ml/min. (2 drops/minute) max. at 210 bar (3000 psi)
Crack Pressure DefinedGauge bar (psi) evident at ① at 16.4 ml/min. (1 cu. in./minute) attained
Standard Bias Springs at Crack0.34 bar ( 5 psi)
Temperature-40°℃~120°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation:No restrictions
CavityIVC04-2/B2,See page 296


Material

CartridgeWeight: 0.05 kg. (0.12 lbs.); Steel with hardened work surfaces.Zinc-plated exposed surfaces.Seal: Buna-N O-rings and back-up rings (standard).


Features of ICV04-B20 Ball Valve, Check Valve

1. Hardened seat for long life and low leakage.
2. Optional bias springs for back-pressure application flexibility.
3. Fully guided check assembly.
4. Miniature size.
5. Fast closing and seating.

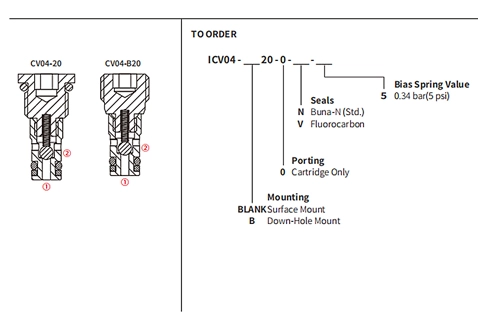

Operation Symbol of ICV04-B20 Ball Valve, Check Valve

Operation Symbol of ICV04-B20 Ball Valve, Check Valve

The ICV04-20 and ICV04-B20 allow flow passage from ① to ②, while normally blocking oil flow in the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at ① to open ②.

Performance/Dimension/Sectional Drawing of ICV04-B20 Ball Valve, Check Valve

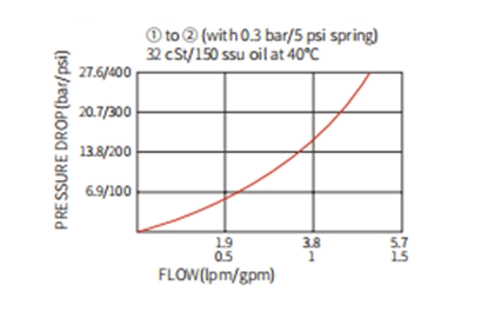

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICV04-B20 Ball Valve, Check Valve

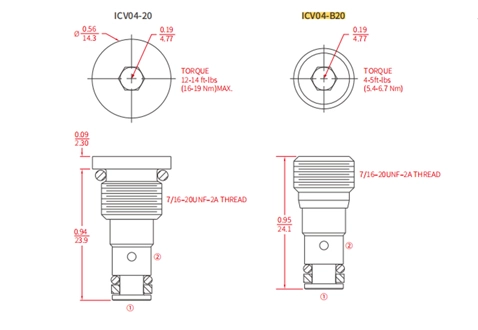

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICV04-B20 Ball Valve, Check Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of ICV04-B20 Ball Valve, Check Valve
