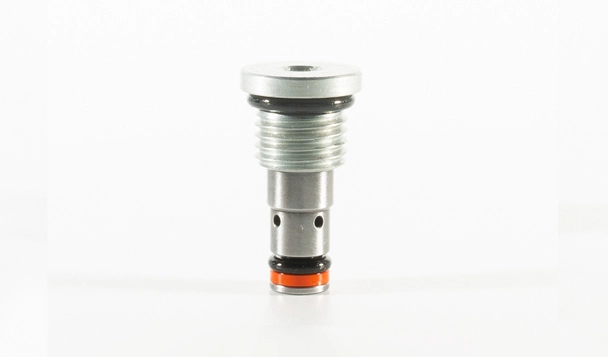

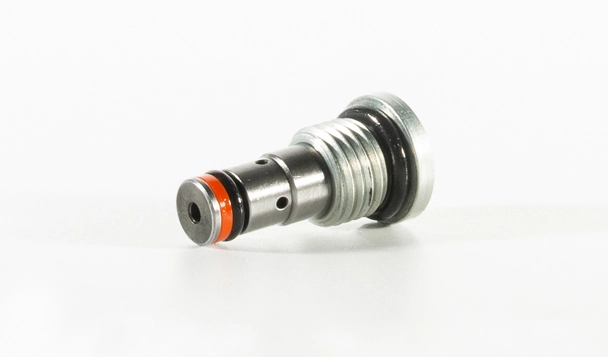

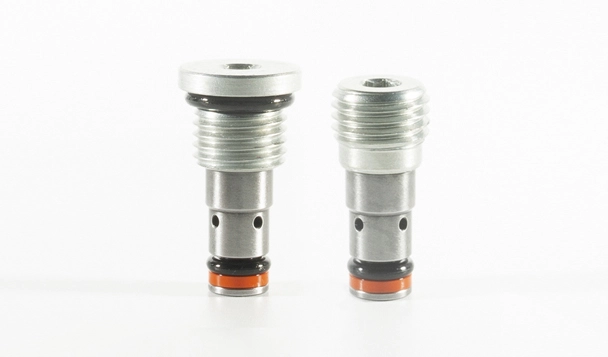

ICV04-20 Ball Valve, Check Valve

It is a compact and multifunctional directional control valve that merges the characteristics of a ball valve and a check valve. This valve is specifically engineered to provide versatility in fluid control applications while ensuring efficient prevention of backflow. Its compact design makes it particularly suitable for systems with space limitations, without compromising on performance or functionality.

Products

Specifications of ICV04-20 Ball Valve, Check Valve

Operating Pressure240 bar (3500 psi)
FlowSee Performance Chart
Internal Leakage0.10 ml/min. (2 drops/minute) max. at 210 bar (3000 psi)
Crack Pressure DefinedGauge bar (psi) evident at ① at 16.4 ml/min. (1 cu.
in./minute) attained
Standard Bias Springs at Crack0.34 bar (5 psi)
Temperature-40 to 120°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC04-2/B2; See page 296


Material

CartridgeWeight: 0.05 kg. (0.12 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
SealBuna-N O-rings and back-up rings (standard).


Features of ICV04-20 Ball Valve, Check Valve

1. Hardened seat for long life and low leakage.
2. Optional bias springs for back-pressure application flexibility.
3. Fully guided check assembly.
4. Miniature size.
5. Fast closing and seating.

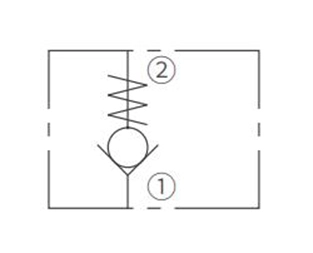

Operation Symbol of ICV04-20 Ball Valve, Check Valve

Operation Symbol of ICV04-20 Ball Valve, Check Valve

The ICV04-20 and ICV04-B20 allow flow passage from ① to ②, while normally  blocking oil flow in the opposite direction. The cartridge has a fully guided check  which is spring-biased closed until sufficient pressure is applied at ① to open ②.

Performance/Dimension/Sectional Drawing of ICV04-20 Ball Valve, Check Valve

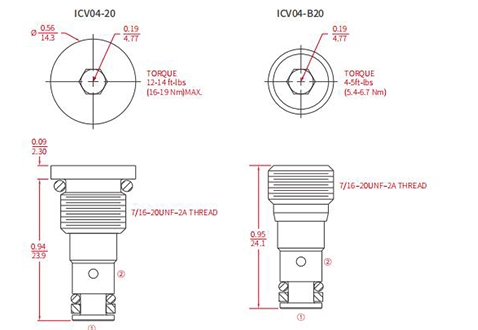

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICV04-20 Ball Valve, Check Valve

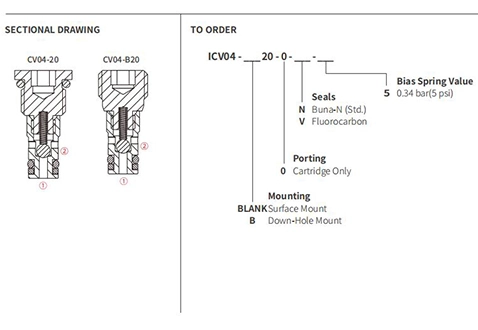

Sectional Drawing
Performance/Dimension/Sectional Drawing of ICV04-20 Ball Valve, Check Valve

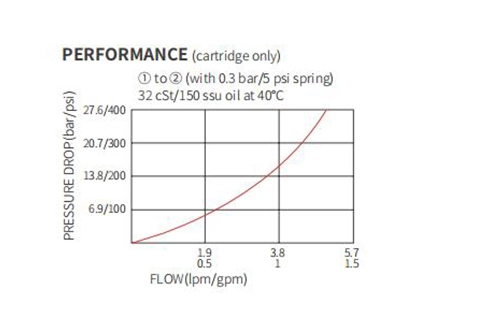

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICV04-20 Ball Valve, Check Valve
