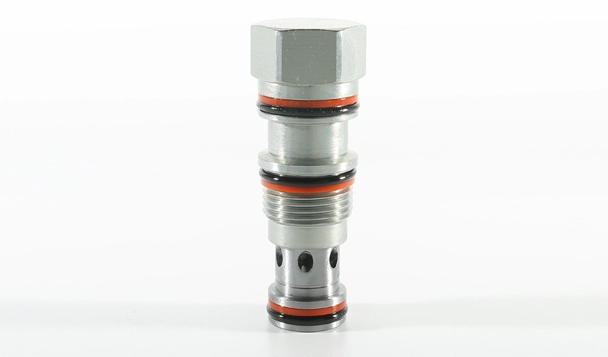

ICKCD Pilot-To-Open Check Valves

ICKCD pilot-to-open check valves, a cutting-edge line of flow control devices that offer unmatched performance and reliability, ensuring seamless fluid flow while effectively preventing reverse flow, making them the ideal choice for a wide range of industrial applications.

Products

Specifications of ICKCD Pilot-To-Open Check Valves

Operating Pressure350 bar (5100 psi)
FlowSee Performance Chart
Internal Leakage

① to② : 0.10 ml/min. max (2 drops/minute) at 350 bar (5100
psi)
Pilot Ratio3:1
Check Spring Bias2 bar (29psi) Standard
With Sealed Piston Option6.2 bar (90 psi) minimum
Temperature-40℃to 120℃
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIT-11A; See page 309


Material

CartridgeWeight: 0.13kg. (0.29 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: O-rings and back-up rings.


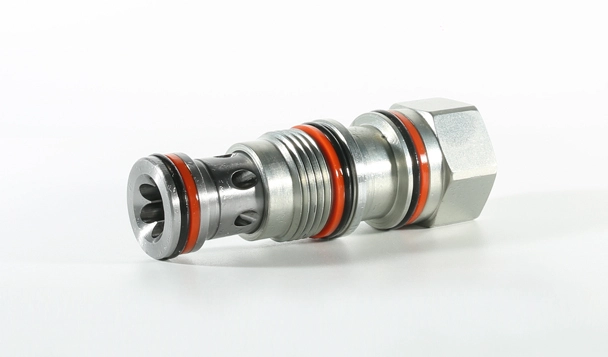

Features of ICKCD Pilot-To-Open Check Valves

1. Hardened seat for long life and low leakage.
2. Optional sealed piston.
3. Optional spring ranges.
4. Compact size.

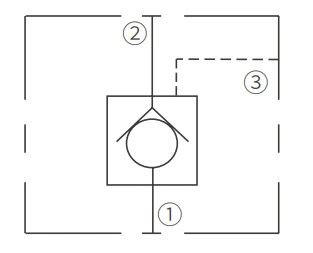

Operation Symbol of ICKCD Pilot-To-Open Check Valves

Operation Symbol of ICKCD Pilot-To-Open Check Valves

The ICKCB /ICKCD allows flow from ② to ①, while normally blocking oil flow in the opposite direction. The flow will be allowed from ① to ② when sufficient pressure is applied at ③.


The check is spring-biased to assure holding in static or no-load conditions.

Performance/Dimension/Sectional Drawing of ICKCD Pilot-To-Open Check Valves

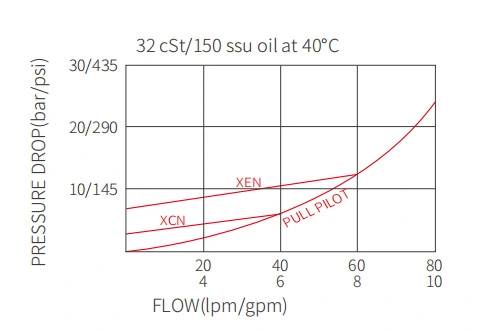

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICKCD Pilot-To-Open Check Valves

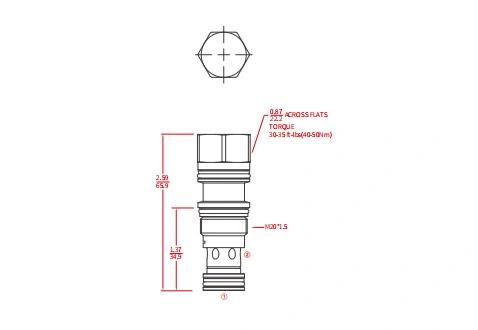

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICKCD Pilot-To-Open Check Valves

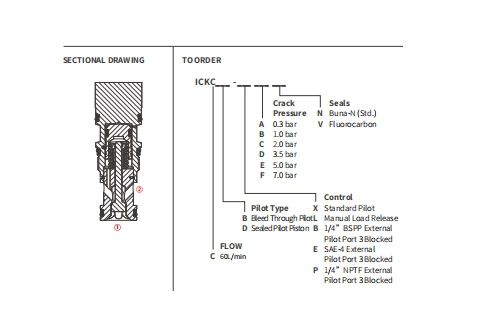

Sectional Drawing
Performance/Dimension/Sectional Drawing of ICKCD Pilot-To-Open Check Valves
