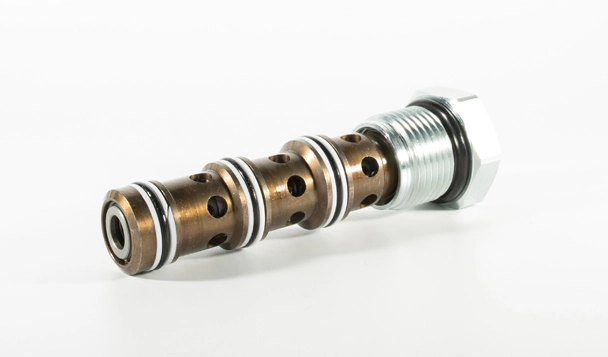

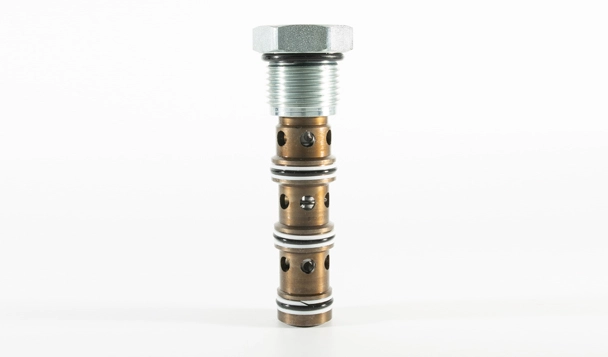

IFD52-45 Flow Divider/Combiner

This device enables the division or combination of hydraulic power, allowing for efficient power distribution. The IFD52-45 flow divider/combiner ensures equal split or merging of fluid flow, enabling optimal performance in hydraulic systems. Whether used in agriculture, material handling, or construction machinery, this component contributes to enhanced control and productivity.

Products

Specifications of IFD52-45 Flow Divider/Combiner

Operating Pressure345 bar (5000 psi)

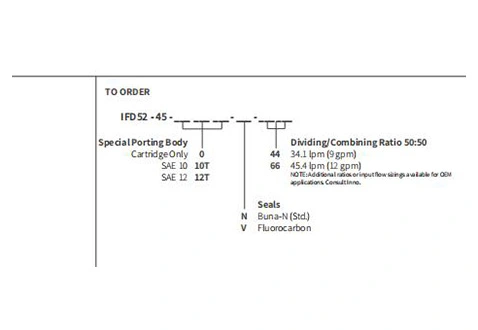

FlowSee the ordering code in the right
Flow Accuracy10% from 25 to 100% of maximum rated flow
Temperature-40 to 100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC12-4; See page 304


Material

CartridgeWeight: 0.28 kg. (0.61 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal rings.
Standard Ported BodyWeight: 1.50 kg. (3.30 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Note: Ductile iron and steel bodies are required for operation over
240 bar (3500 psi).
Dimensions may differ; Consult Inno.


Features of IFD52-45 Flow Divider/Combiner

1. Hardened parts for long life.
2. Quiet, modulated response.
3. Wide operating flow range.
4. Synchronizing in dividing and combining modes.
5. Floating cage — High installation torque.
6. Industry common cavity.

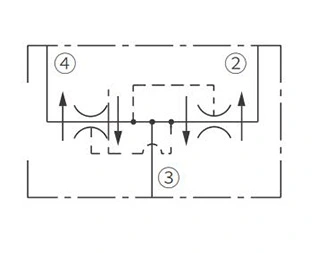

Operation Symbol of IFD52-45 Flow Divider/Combiner

Operation Symbol of IFD52-45 Flow Divider/Combiner

In the dividing mode, the IFD52-45 will divert input flow from port ③ to ports ②  and ④, based on the ratio specifified, regardless of operating pressure. When the flow direction is reversed the valve will combine flows from ② and ④ to port ③. Synchronizing flow is provided in both the dividing and combining modes at  "bottomed" conditions in cylinder applications and at "stalled" conditions in  motor applications.

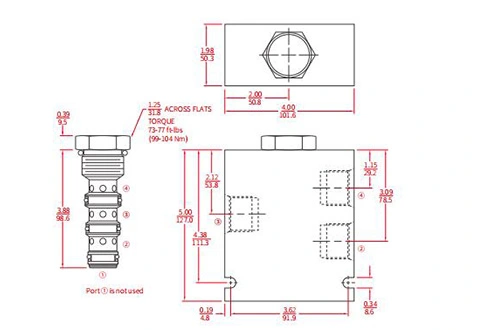

Performance/Dimension/Sectional Drawing of IFD52-45 Flow Divider/Combiner

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IFD52-45 Flow Divider/Combiner
Sectional Drawing
Performance/Dimension/Sectional Drawing of IFD52-45 Flow Divider/Combiner

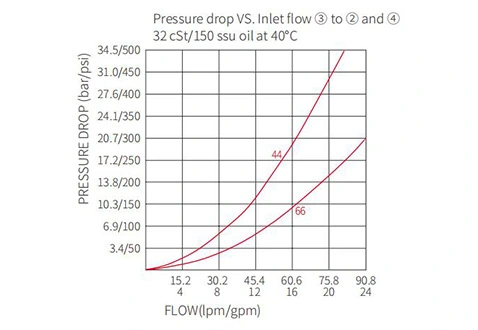

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IFD52-45 Flow Divider/Combiner
