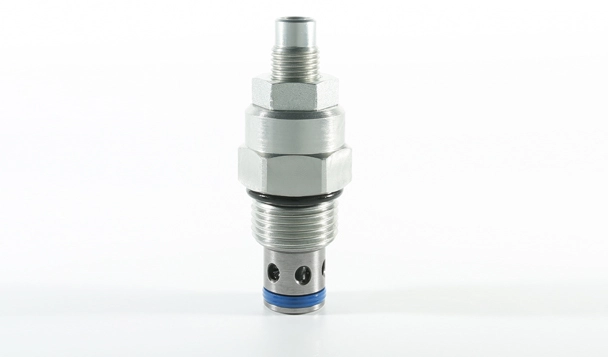

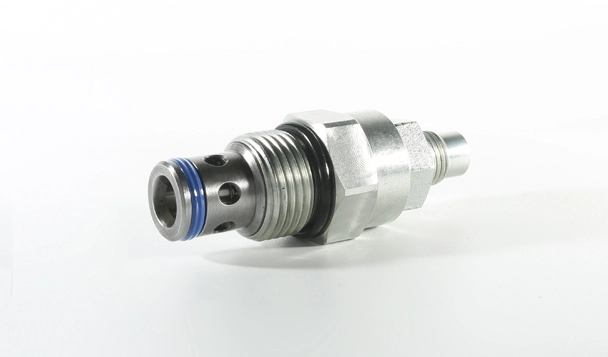

INV10-20 Hydraulic Needle Valve

The INV10-20 Needle Valve is an exceptional fluid control solution renowned for its precision. Its needle-like plunger enables meticulous adjustment of flow rates. With its compact design, robust construction, and broad compatibility, it excels in applications demanding accurate and controlled fluid regulation across diverse industrial sectors.

Products

Specifications of INV10-20 Needle Valve

Product ModelINV10-20 NEEDLE VALVE
Operating Pressure250 bar (3600 psi)
Flow45 lpm (12 gpm) nominal at 7 bar (100 psi) differential at full open 3.5turns
Internal Leakage0.25 ml/min. (5 drop/minute) max. at shut-off
Adjustment Torque Required0.56 Nm (5 inch-pounds) at 7 bar (100 psi); 5.41 Nm (48 inch-pounds) at 207 bar (3000 psi)
Temperature-40°℃~100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIVC10-2, See page 300


Material

CartridgeWeight: 0.15 kg. (0.33 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealD type seal rings; Anodized aluminum knobs.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

Features of INV10-20 Needle Valve

1. Adjustments cannot be backed out of the valve.
2. Desired settings may be locked down.
3. Hardened parts for long life.
4. Industry common cavity.
5. Aluminum knob option.
6. Positive shut-off.
7. Linear adjustment.


Operation Symbol of INV10-20 Needle Valve

Operation Symbol of INV10-20 Needle Valve

The INV10-20 increases its orifice value from fully closed to fully open with counterclockwise adjustment rotation.

Performance/Dimension/Sectional Drawing of INV10-20 Needle Valve

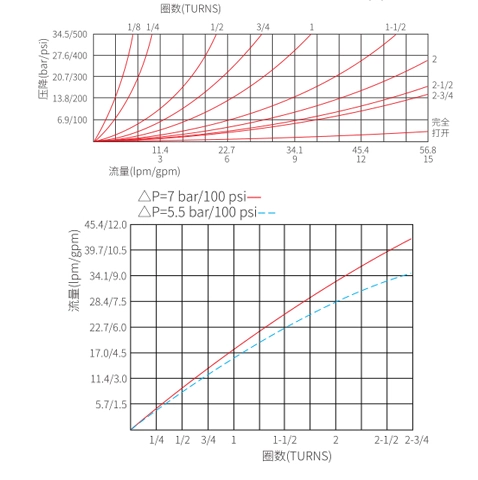

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of INV10-20 Needle Valve

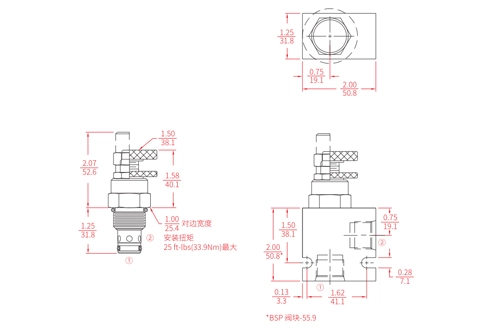

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of INV10-20 Needle Valve

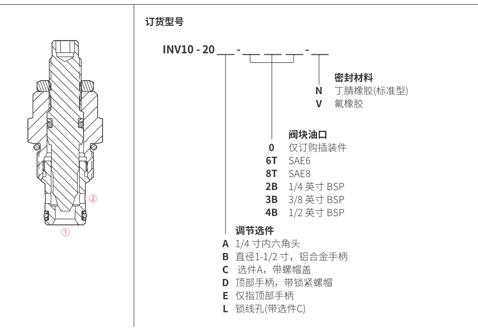

Sectional Drawing
Performance/Dimension/Sectional Drawing of INV10-20 Needle Valve
