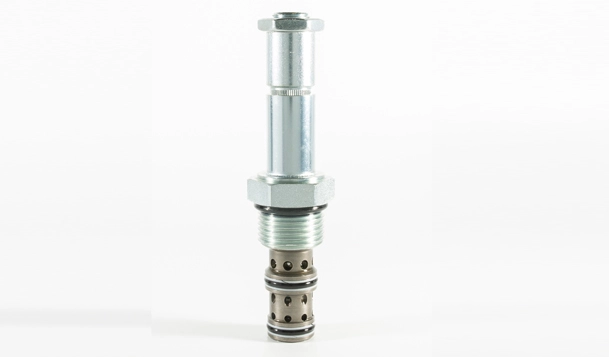

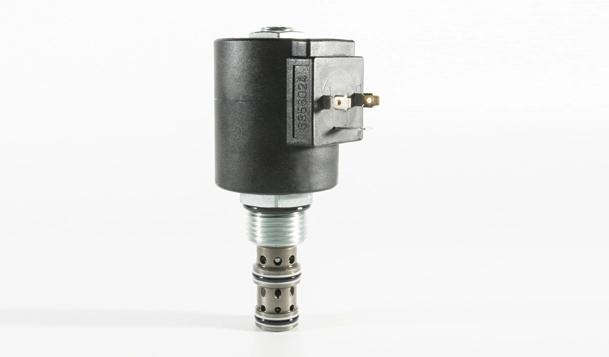

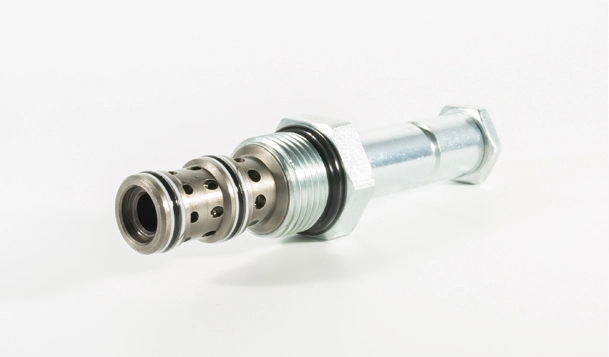

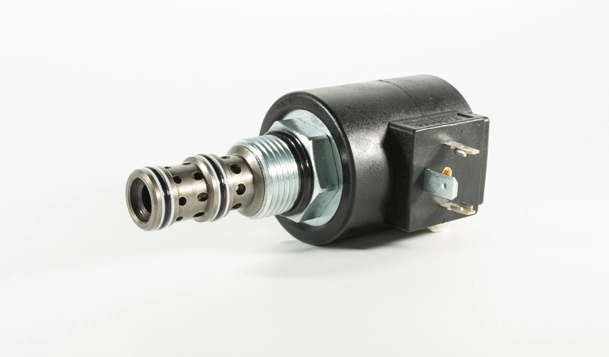

ISV10-34 Spool 3-Way 2-Position Solenoid Valve

A solenoid-operated, 3-way, 2-position, direct-acting spool-type, screw-in hydraulic cartridge valve, designed to control flow direction of actuator.

Products

Specifications of ISV10-34 Spool 3-Way 2-Position Solenoid Valve

Operating Pressure207 bar (3000 psi)
Proof Pressure350 bar (5100 psi)
FlowMax. 22.7 lpm (6 gpm);
Note: Under certain operating conditions this valve may be rated for higher flow. Consult Inno.
Internal Leakage115 ml/min. (7 cu. in./minute) max. at 207 bar (3000 psi)
Temperature-40 to 100°C
Coil Duty RatingContinuous from 85% to 115% of nominal voltage
Response TimeFirst indication of change of state with 100% voltage supplied at
80% of nominal flow rating:
Energized: 60 msec.; De-energized: 10 msec.
Initial Coil Current Draw at 20°CStandard Coil: 1.67 amps at 12 VDC;
0.18 amps at 115 VAC (full wave rectified).
E-Coil: 1.7 amps at 12 VDC; 0.85 amps at 24 VDC
Minimum Pull-in Voltage85% of nominal at 207 bar (3000 psi)
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC10-3; See page 300


Material

CartridgeWeight: 0.14 kg. (0.30 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal rings.
Standard Ported BodyWeight: 0.36 kg. (0.80 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Ductile iron and steel bodies available; dimensions may differ.
Consult Inno.
Standard CoilWeight: 0.27 kg. (0.60 lbs.); Unitized thermoplastic encapsulated,
Class H high temperature magnetwire.
E-CoilWeight: 0.41 kg. (0.90 lbs.); Perfect wound, fully encapsulated with rugged
external metal shell; Rated up to IP69K with integral connectors.


Features of ISV10-34 Spool 3-Way 2-Position Solenoid Valve

1. Continuous-duty rated coil.
2. Hardened precision spool and cage for long life.
3. Optional coil voltages and terminations.
4. Efficient wet-armature construction.
5. All ports may be fully pressurized.
6. Cartridges are voltage interchangeable.
7. Manual override option.
8. Optional waterproof E-Coils rated up to IP69K.
9. Unitized, molded coil design.
10. Industry common cavity.

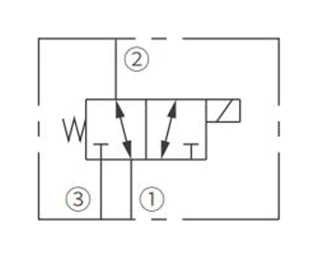

Operation Symbol of ISV10-34 Spool 3-Way 2-Position Solenoid Valve

Operation Symbol of ISV10-34 Spool 3-Way 2-Position Solenoid Valve

When de-energized, the ISV10-34 allows flow from ② to ①, while blocking flow at ③. When energized, the cartridge's spool shifts to open the ② to ③ flow path, while  blocking flow at ①.


Operation of Manual Override Option


To override, push button in, twist counterclockwise 180°, and release. The internal spring will push the button out. In this position, the valve may be only partially shifted.  To assure full override shift, pull the button out to its fullest extension and hold it  in this position. To return to normal operation, push button in, twist clockwise 180°, and release. Override will be detented in this position.

Performance/Dimension/Sectional Drawing of ISV10-34 Spool 3-Way 2-Position Solenoid Valve

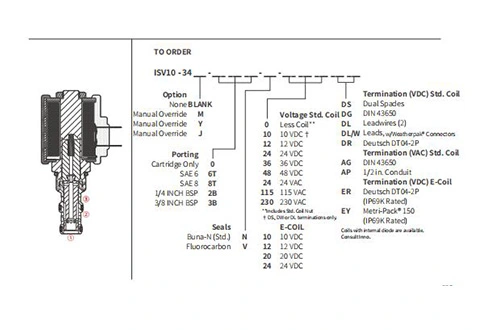

Sectional Drawing
Performance/Dimension/Sectional Drawing of ISV10-34 Spool 3-Way 2-Position Solenoid Valve

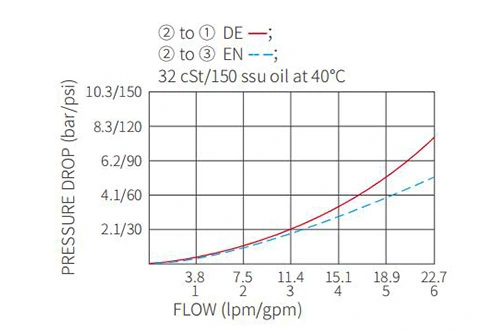

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ISV10-34 Spool 3-Way 2-Position Solenoid Valve

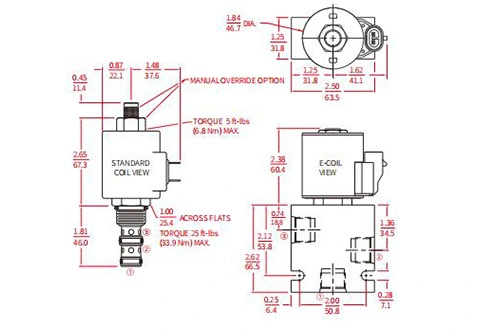

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ISV10-34 Spool 3-Way 2-Position Solenoid Valve
