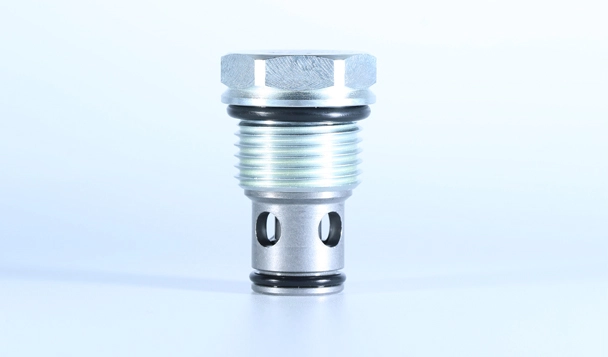

ICV10-B20 Poppet Valve, Check Valve (High Pressure)

The ICV10-B20 is a reliable Poppet Valve, Check Valve combination designed for fluid control applications. Its durable construction and efficient poppet valve mechanism enable precise flow control, while the integrated check valve prevents backflow. Suitable for industries seeking dependable fluid control solutions in diverse operating conditions.

Products

Specifications of ICV10-B20 Poppet Valve, Check Valve (High Pressure)

Product ModelICV10-B20 POPPET VALVE, CHECK VALVE (HIGH PRESSURE)
Operating Pressure420 bar (6100 psi)
Flow80 lpm max
Internal Leakage0.10 ml/min. (2 drops/minute) max. at 420 bar (6100 psi)
Crack Pressure DefinedGauge bar (psi) evident at ① at 16.4 ml/min. (1 cu. in./minute) attained
Standard Bias Springs at Crack0.34 bar(5 psi);1.0 bar(15 psi);2.1 bar (30 psi);4.8 bar(70 psi);6.9 bar(100 psi)
Temperature-40°℃~100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIVC10-2, See page 300


Material

CartridgeWeight: 0.08 kg. (0.17 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealD type seal ring.
Standard Ported BodyWeight: 0.43 kg. (0.95 lbs.); Anodized highstrength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

Features of ICV10-B20 Poppet Valve, Check Valve (High Pressure)

1. Hardened seat for long life and low leakage.
2. Optional bias springs for back-pressure application flexibility.
3. Fully guided check assembly.
4. Industry common cavity.


Operation Symbol of ICV10-B20 Poppet Valve, Check Valve (High Pressure)

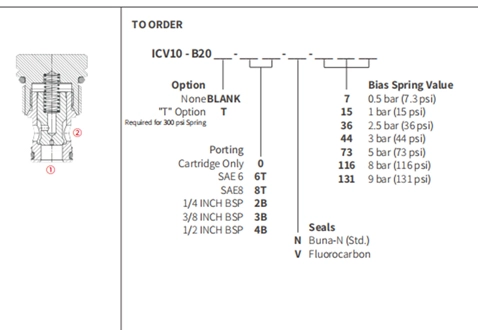

Operation Symbol of ICV10-B20 Poppet Valve, Check Valve (High Pressure)

The ICV10-B20 allows flow passage from ① to ②, while normally blocking oil flow in the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at ①to open to ②.

Performance/Dimension/Sectional Drawing of ICV10-B20 Poppet Valve, Check Valve (High Pressure)

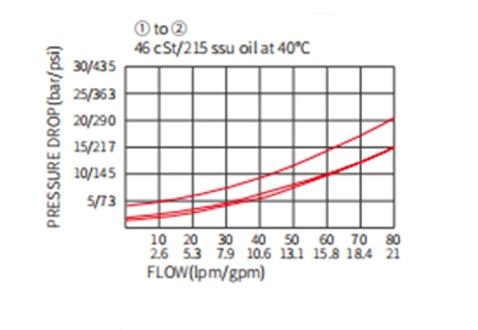

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICV10-B20 Poppet Valve, Check Valve (High Pressure)

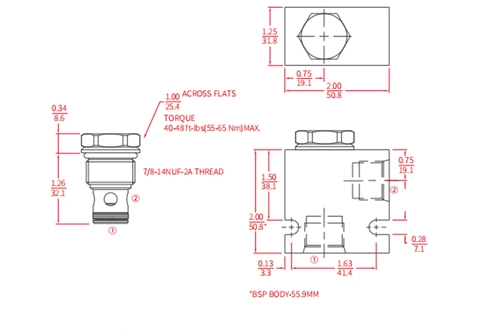

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICV10-B20 Poppet Valve, Check Valve (High Pressure)
Sectional Drawing
Performance/Dimension/Sectional Drawing of ICV10-B20 Poppet Valve, Check Valve (High Pressure)
