isv38 38 spool 3 way 2 position n c solenoid valve

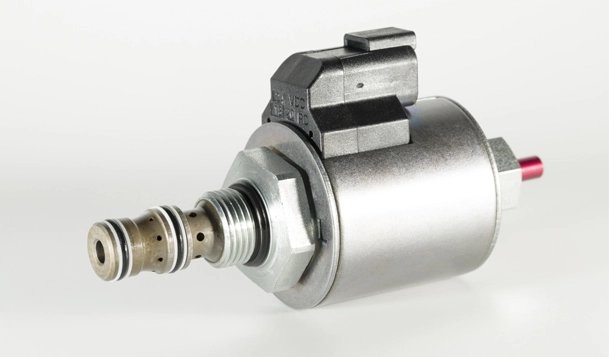

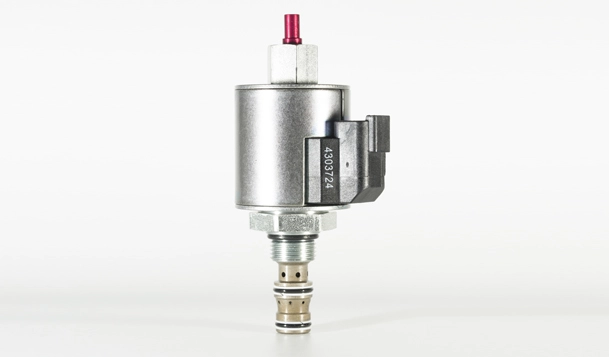

ISV38-38 Spool 3-Way 2-Position N.C. Solenoid Valve

A solenoid-operated, 3-way, 2-position, bi-directional blocking, screw-in hydraulic cartridge valve, designed for low leakage in load-holding applications.

Products

Specifications of ISV38-38 Spool 3-Way 2-Position N.C. Solenoid Valve

Operating Pressure207 bar (3000 psi)
FlowSee Performance Chart
Internal Leakage0.25 ml/min. (5 drops/minute) max. at 207 bar (3000 psi)
Temperature-40 to 100°C
Coil Duty RatingContinuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20°CStandard Coil: 1.67 amps at 12 VDC;
0.18 amps at 115 VAC (full wave rectified).
E-Coil: 1.7 amps at 12 VDC; 0.85 amps at 24 VDC
Minimum Pull-in Voltage85% of nominal at 207 bar (3000 psi)
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC08-3; See page 298


Material

CartridgeWeight: 0.13 kg. (0.28 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal rings.
Standard Ported BodyWeight: 0.27 kg. (0.60 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Ductile iron and steel bodies available; dimensions may differ.
Consult Inno.
Standard CoilWeight: 0.27 kg. (0.60 lbs.); Unitized thermoplastic encapsulated,
Class H high temperature magnetwire.
E-CoilWeight: 0.41 kg. (0.90 lbs.); Perfect wound, fully encapsulated with rugged
external metal shell; Rated up to IP69K with integral connectors.


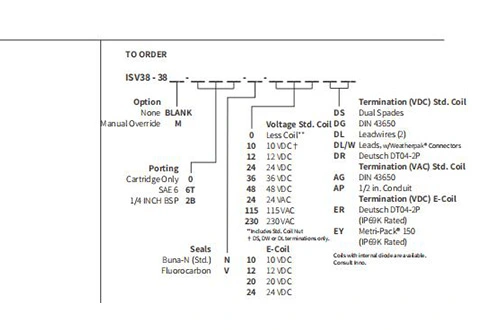

Features of ISV38-38 Spool 3-Way 2-Position N.C. Solenoid Valve

1. Continuous-duty rated coil.
2. Hardened precision spool and cage for long life and low leakage.
3. Optional coil voltages and terminations.
4. Efficient wet-armature construction.
5. Cartridges are voltage interchangeable.
6. Unitized, molded coil design.
7. Industry common cavity.
8. Optional waterproof E-Coils rated up to IP69K.

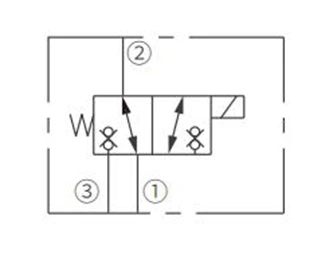

Operation Symbol of ISV38-38 Spool 3-Way 2-Position N.C. Solenoid Valve

Operation Symbol of ISV38-38 Spool 3-Way 2-Position N.C. Solenoid Valve

When de-energized, the ISV38-38 blocks flow from ① to ② or from ② to ①. When energized, the flow is allowed from ② to ③ or from ③ to ②.

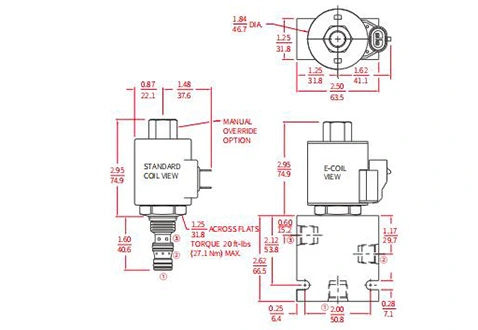

Performance/Dimension/Sectional Drawing of ISV38-38 Spool 3-Way 2-Position N.C. Solenoid Valve

Sectional Drawing
Performance/Dimension/Sectional Drawing of ISV38-38 Spool 3-Way 2-Position N.C. Solenoid Valve

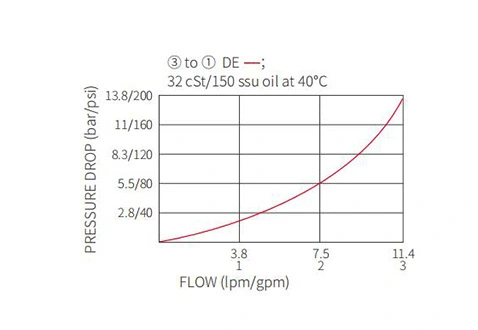

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ISV38-38 Spool 3-Way 2-Position N.C. Solenoid Valve
DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ISV38-38 Spool 3-Way 2-Position N.C. Solenoid Valve
