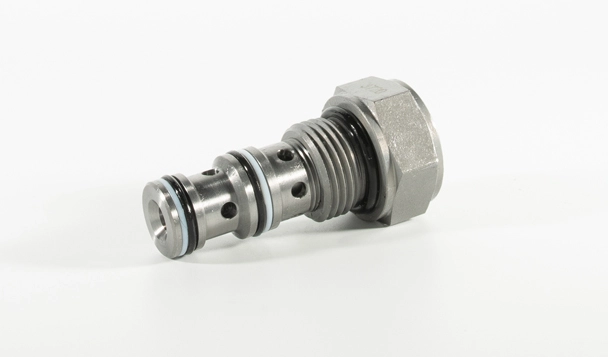

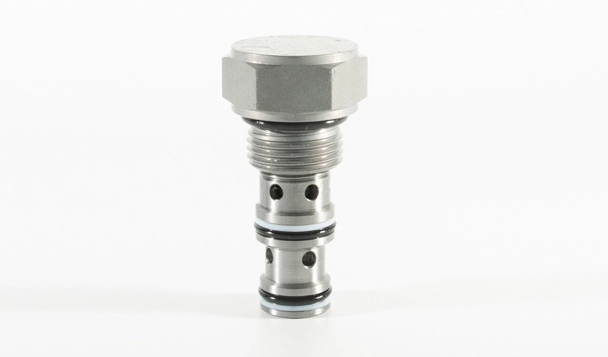

ILS08-B30 Load Shuttle Ball Valve (High Pressure)

The ILS08-B30 is a high-pressure Ball Valve, Load Shuttle, which integrates a ball valve for accurate flow control and a load shuttle for precise pressure regulation. With its sturdy construction and high-pressure capability, it ensures reliable and efficient fluid control in industrial applications requiring exceptional performance.

Products

Specifications of ILS08-B30 Ball Valve, Load Shuttle (High Pressure)

Product ModelILS08-B30 BALL VALVE, LOAD SHUTTLE (HIGH PRESSURE)
Operating Pressure350 bar(5100 psi)
Proof Pressure525 bar(7600 psi)
FlowSee Performance Chart
Internal Leakage0.25 ml/min. max (5 drops/minute) at 350 bar (5100 psi)
Temperature-40°℃~120°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIVC08-3,See page 298


Material

CartridgeWeight: 0.09kg. (0.20 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealO-rings and back-up rings.
Standard Ported BodyWeight: 0.27 kg. (0.60 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

Features of ILS08-B30 Ball Valve, Load Shuttle (High Pressure)

1. Rapid response to load direction changes.
2. Compact size.

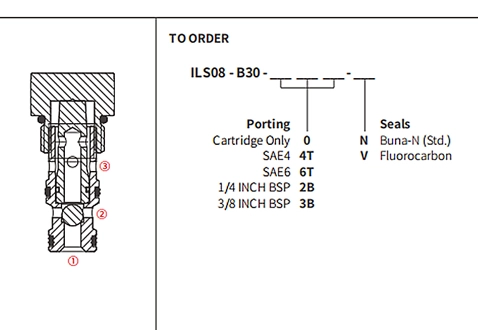

Operation Symbol of ILS08-B30 Ball Valve, Load Shuttle (High Pressure)

Operation Symbol of ILS08-B30 Ball Valve, Load Shuttle (High Pressure)

The ILS08-B30 will allow flow from the higher pressure port ① or ③ to the port ②. The valve is commonly used to direct oil from the high-pressure side of a bidirectional hydraulic motor to a pressure-released hydraulic brake.

Performance/Dimension/Sectional Drawing of ILS08-B30 Ball Valve, Load Shuttle (High Pressure)

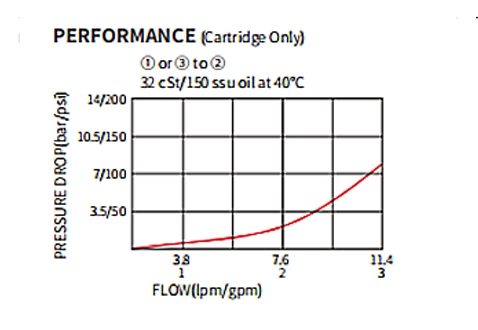

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ILS08-B30 Ball Valve, Load Shuttle (High Pressure)

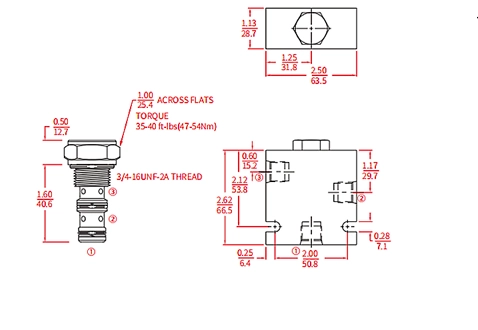

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ILS08-B30 Ball Valve, Load Shuttle (High Pressure)
Sectional Drawing
Performance/Dimension/Sectional Drawing of ILS08-B30 Ball Valve, Load Shuttle (High Pressure)
