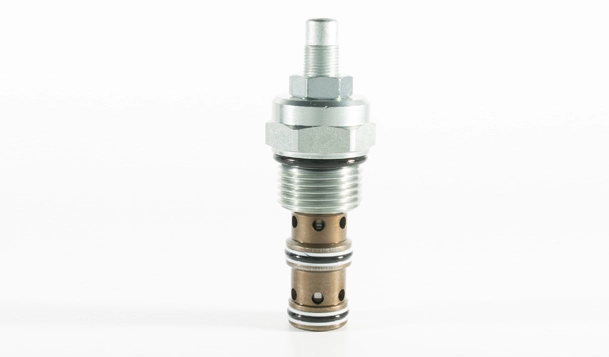

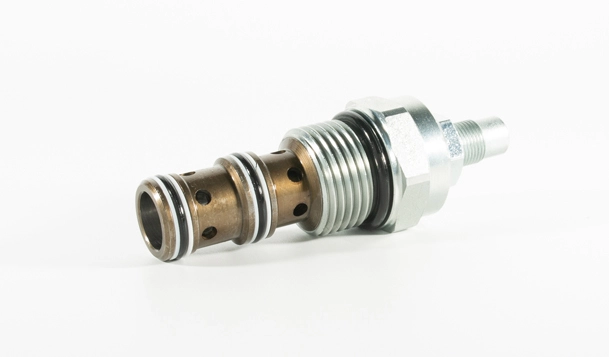

IFR10-39 Flow Fregulator Pressure-Compensated Valve

A screw-in, cartridge-style, adjustable orifice, pressure-compensated, manually-operated, bypass-type hydraulic flow regulating valve. It can be used as a  priority-type flow regulator or a restrictive-type 2-way flow regulator when the  bypass port (port ②) is blocked.

Products

Specifications of IFR10-39

Operating Pressure240 bar (3500 psi)
Flow Rate

③-ported regulated flow (Prority+Bypass): 0 to 38 lpm (0 to 10 gpm)

③-ported regulated flow (Bypass Blocked): 0 to 34 lpm (0 to 9 gpm)

Input Flow(Prority+Bypass): 0 to 38 lpm (0 to 10 gpm) nominal; 0 to 57 lpm (0 to 15 gpm) max.
Internal Leakage33ml/min. at 207 bar (3000 psi)
Adjustment Torque RequiredRequired torque 1.7 Nm at 207 bar (3000 psi)
Temperature-40 to 100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC10-3; See page 300


Material

CartridgeWeight: 0.30 kg. (0.68 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces; Seal: D type seal rings.
Standard Ported BodyWeight: 0.36 kg. (0.80 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi); Ductile iron and steel
bodies available; dimensions may differ; Consult Inno.


Features of IFR10-39

1. Bypass port ② may be fully pressurized.
2. Fine low-torque adjustment.
3. Hardened steel parts for long life.
4. Quiet, modulated response.
5. Industry common cavity

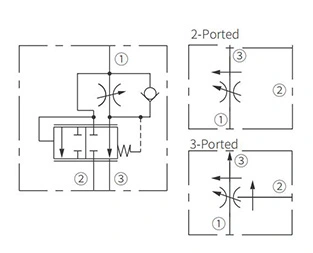

Operation Symbol of IFR10-39

Operation Symbol of IFR10-39

The lFR10-39 maintains a constant flow rate from ③ regardless of load pressure changes in the system downstream of ③, or in the bypass leg at ②. Reverse flow(③ to ①) does not bypass the control orifice.The regulated flow increases from closed to fully open, with counter-clockwise rotation of the knob.


Note: When used as a bypass flow control in applications where the priority flow port will be blocked by external valving, the bypass pressure drop will increase unless a small amount of leakage is provided for the priority port.Consult Inno.


Performance/Dimension/Sectional Drawing of IFR10-39

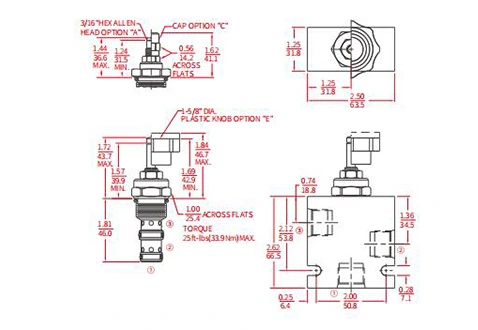

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IFR10-39

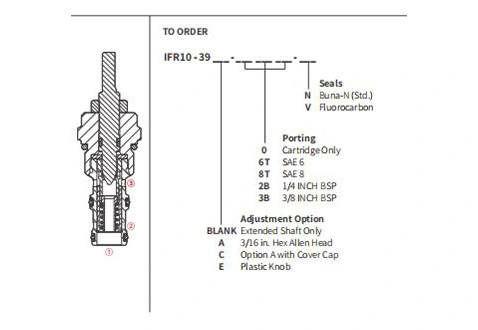

Sectional Drawing
Performance/Dimension/Sectional Drawing of IFR10-39

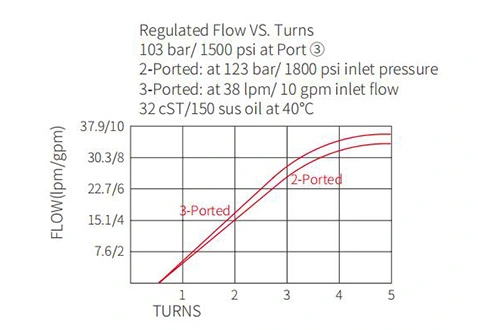

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IFR10-39

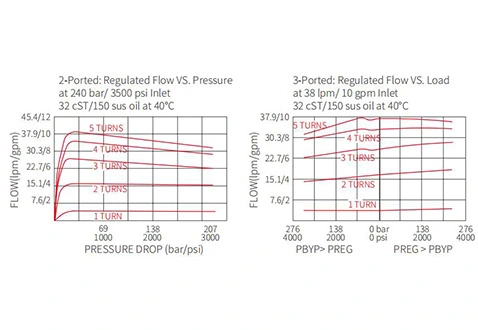

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IFR10-39

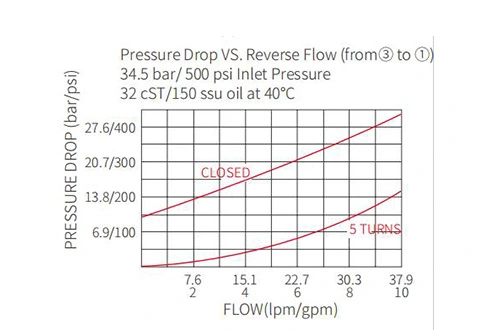

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IFR10-39
