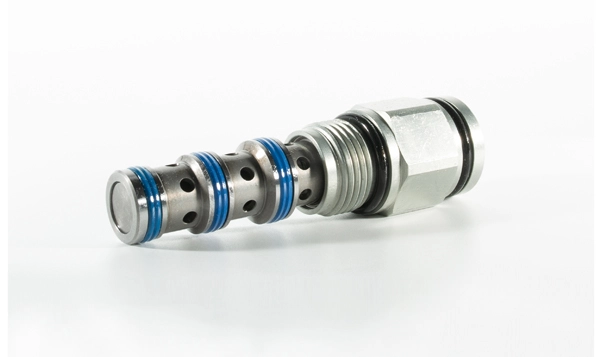

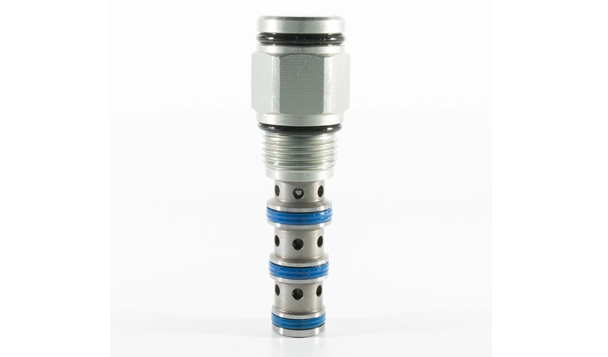

IPD10-40 Piloted 3-Way Spool Valve

The IPD10-40 is an advanced Piloted 3-Way Spool Valve designed for fluid control applications. With its piloted operation, it offers precise control over fluid flow and direction. Its robust construction and efficient design make it suitable for industries requiring accurate and responsive fluid control in diverse operating conditions.

Products

Specifications of IPD10-40 Piloted 3-Way Spool Valve

Product ModelIPD10-40 PILOTED 3-WAY SPOOL VALVE
Operating Pressure240 bar(3500 psi)
Proof Pressure350 bar(5100 psi)
FlowSee Performance Chart
Internal Leakage82 ml/min. max (5 cu. in./minute) at 207 bar (3000 psi)
Pilot Pressure RequiredTo Spool Crossover:7.6 bar(110 psi);To Full Spool Shift:8.6 bar(125 psi);Oil Volume Required to Full Shift:0.65 ml (0.04 cu. in.)
Temperature-40°℃~100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation:No restrictions
CavityIVC10-4,See page 302.

Note: This valve is designed with a dynamic oil-to-atmosphere seal in the vent section. Ambient conditions will cause this vent seal to degrade which will reduce the valve’s cycle life. If this could cause a problem, we suggest that a non-vented model be selected, or special seal be used. Consult Inno for assistance.


Material

CartridgeWeight: 0.16kg. (0.35 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealD type seal ring.
Standard Ported BodyWeight: 0.34 kg. (0.75 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

Features of IPD10-40 Piloted 3-Way Spool Valve

1. Hardened spool and cage for long life.
2. Industry common cavity

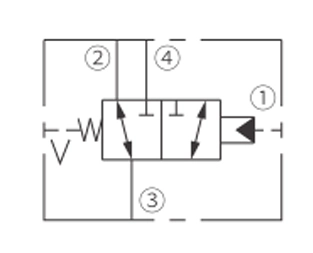

Operation Symbol of IPD10-40 Piloted 3-Way Spool Valve

Operation Symbol of IPD10-40 Piloted 3-Way Spool Valve

In a neutral position (unpiloted), the IPD10-40 allows flow from ③ to ② bidirectionally, while the flow is blocked at ④. V is a spring chamber vent-to-atmosphere, which is internally O-ring sealed to avoid oil flowing from the cartridge flow paths. On remote pilot signal at ①, the valve shifts to open from ③ to ④, while blocking flow at ②. Because of the spring chamber drain, the cartridge may be fully pressurized at any port without affecting the required pilot pressure.

Performance/Dimension/Sectional Drawing of IPD10-40 Piloted 3-Way Spool Valve

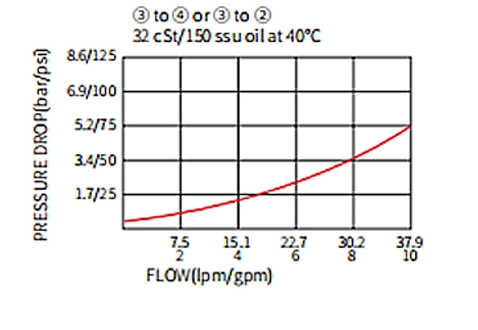

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IPD10-40 Piloted 3-Way Spool Valve

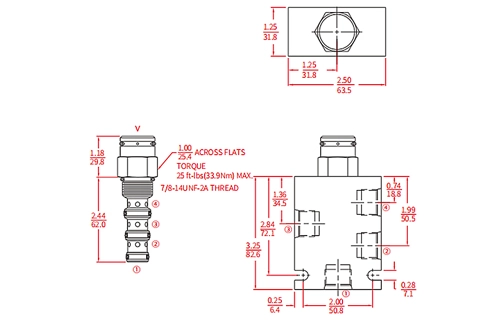

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IPD10-40 Piloted 3-Way Spool Valve

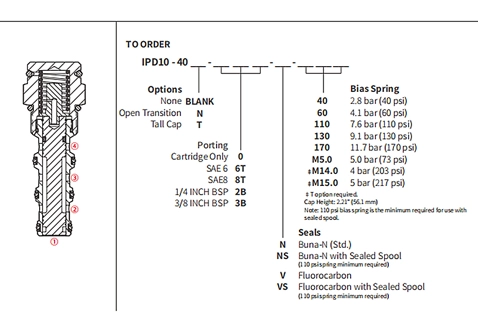

Sectional Drawing
Performance/Dimension/Sectional Drawing of IPD10-40 Piloted 3-Way Spool Valve
