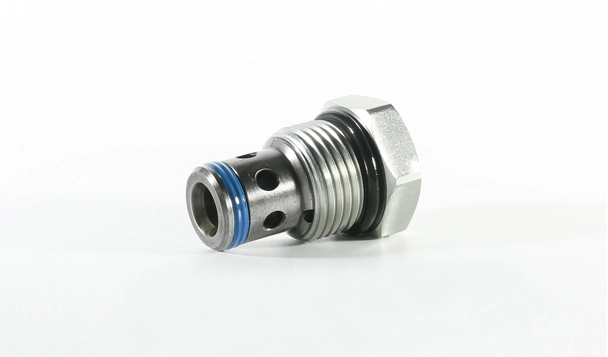

ICV10-20 Ball Valve, Check Valve

The ICV10-20 is a high-quality Ball Valve, Check Valve combination that excels in fluid control applications. Its robust construction and precise ball valve mechanism ensure efficient flow control, while the integrated check valve prevents backflow. Ideal for industries requiring reliable and versatile fluid control solutions in demanding environments.

Products

Specifications of ICV10-20 Ball Valve, Check Valve

Product ModelICV10-20 BALL VALVE, CHECK VALVE
Proof Pressure350 bar (5100 psi)
FlowSee Performance Chart
Internal Leakage0.10 ml/min. (2 drops/minute) max. at 240 bar (3500 psi)
Crack Pressure DefinedGauge bar (psi) evident at ① at 16.4 ml/min. (1 cu. in./minute) attained
Standard Bias Springs at Crack0.34 bar(5 psi);1 bar(15 psi);2.1 bar (30 psi);2.8 bar(40 psi);4.8 bar(70 psi); 6.9 bar(100 psi);13.6 bar(200 psi);20.4 bar(300 psi);
Temperature-40°℃~100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIVC10-2,See page 300


Material

CartridgeWeight: 0.08 kg. (0.17 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealD type seal ring.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized highstrength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

Features of ICV10-20 Ball Valve, Check Valve

1. Hardened seat for long life and low leakage.
2. Optional bias springs for back-pressure application flexibility.
3. Fully guided check assembly.
4. Industry common cavity.


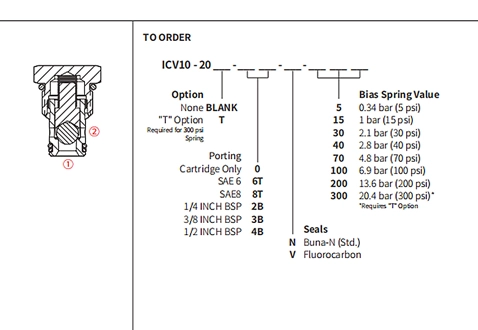

Operation Symbol of ICV10-20 Ball Valve, Check Valve

Operation Symbol of ICV10-20 Ball Valve, Check Valve

The ICV10-20 allows flow passage from ① to②, while normally blocking oil flow in the opposite direction. The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at ① to open to ②.

Performance/Dimension/Sectional Drawing of ICV10-20 Ball Valve, Check Valve

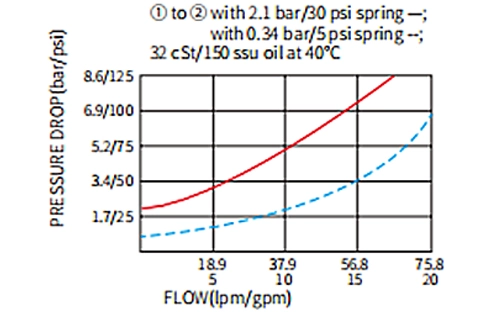

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICV10-20 Ball Valve, Check Valve

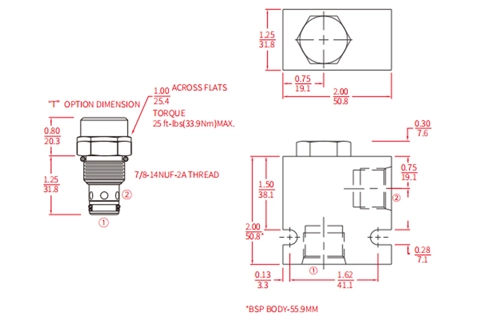

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICV10-20 Ball Valve, Check Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of ICV10-20 Ball Valve, Check Valve
