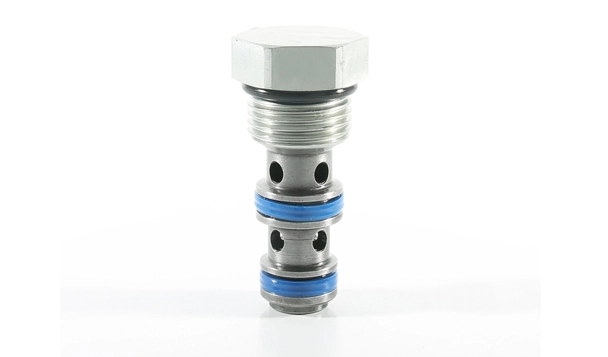

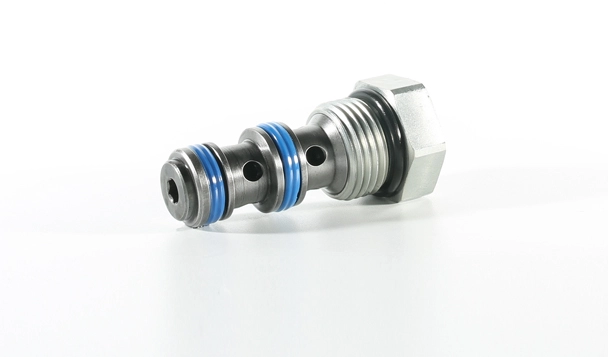

ILS10-30 Load Shuttle Ball Valve

The ILS10-30 Ball Valve, Load Shuttle combines a ball valve for precise flow control with a load shuttle for accurate pressure regulation. With its durable construction and reliable performance, it provides efficient and responsive fluid control in a wide range of industrial applications.

Products

Specifications of ILS10-30 Ball Valve, Load Shuttle

Product ModelILS10-30 BALL VALVE, LOAD SHUTTLE
Operating Pressure240 bar(3500 psi)
Proof Pressure390 bar(5700 psi)
FlowSee Performance Chart
Internal Leakage0.25 ml/min. max (5 drops/minute) at 207 bar (3000 psi)
Temperature-40°℃~100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIVC10-3,See page 300


Material

CartridgeWeight: 0.08kg. (0.17 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealD type seal ring.
Standard Ported BodyWeight:0.36 kg. (0.80 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

Features of ILS10-30 Ball Valve, Load Shuttle

1. Rapid response to load direction changes.
2. Industry common cavity.

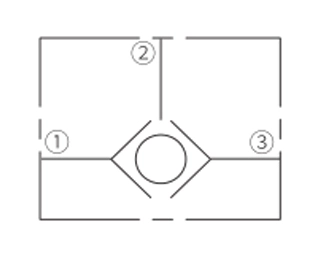

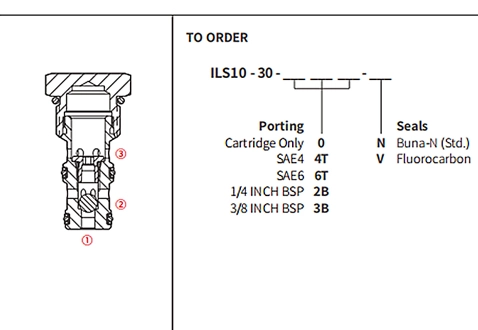

Operation Symbol of ILS10-30 Ball Valve, Load Shuttle

Operation Symbol of ILS10-30 Ball Valve, Load Shuttle

The ILS10-30 will allow flow from the higher pressure port ① or ③ to the port ②. The valve is commonly used to direct oil from the high-pressure side of a bidirectional hydraulic motor to a pressure-released hydraulic brake.

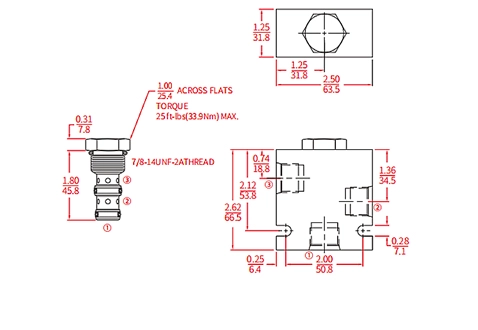

Performance/Dimension/Sectional Drawing of ILS10-30 Ball Valve, Load Shuttle

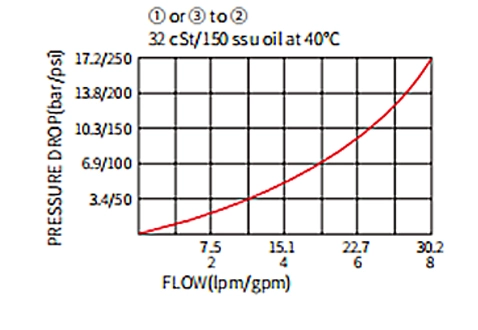

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ILS10-30 Ball Valve, Load Shuttle
DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ILS10-30 Ball Valve, Load Shuttle
Sectional Drawing
Performance/Dimension/Sectional Drawing of ILS10-30 Ball Valve, Load Shuttle
