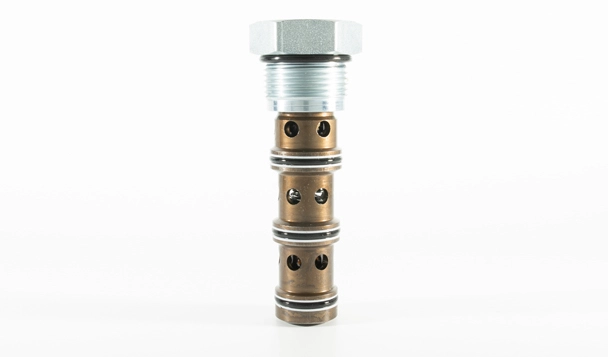

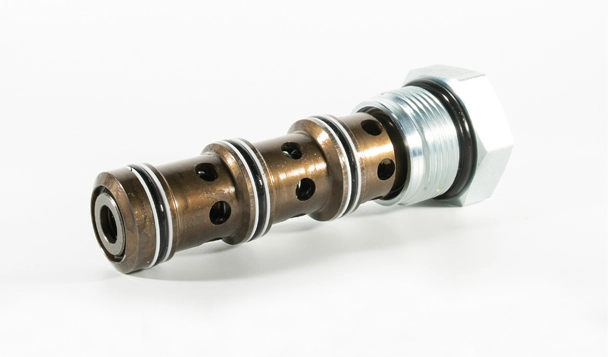

IFD56-45 Flow Divider/Combiner

The IFD56-45 flow divider/combiner enables the equal split or merging of fluid flow, enhancing the performance of hydraulic systems. Whether used in construction equipment, material handling systems, or industrial machinery, this component facilitates optimized control and productivity.

Products

Specifications of IFD56-45 Flow Divider/Combiner

Operating Pressure345 bar (5000 psi)

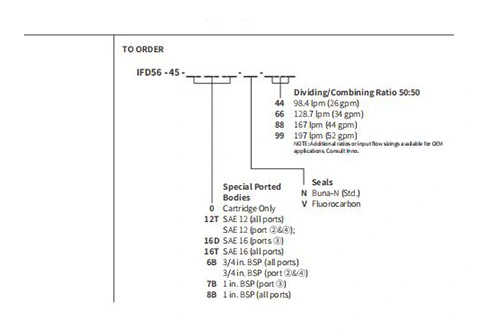

FlowSee the ordering code in the right
Flow Accuracy10% from 25 to 100% of maximum rated flow
Temperature-40 to 120°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC16-4; See page 305


Material

CartridgeWeight: 0.36 kg. (0.80 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: O-rings and back-up rings.
Special Ported BodyWeight: 1.50 kg. (3.30 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Note: Ductile iron and steel bodies are required for operation over
240 bar (3500 psi).
Dimensions may differ; Consult Inno.


Features of IFD56-45 Flow Divider/Combiner

1. Hardened parts for long life.
2. Quiet, modulated response.
3. Wide operating flow range.
4. Synchronizing in dividing and combining modes.
5. Floating cage — High installation torque.
6. Industry common cavity.

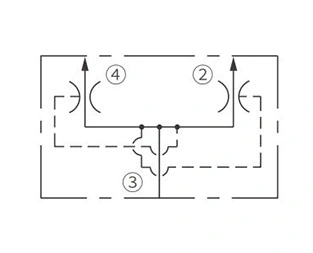

Operation Symbol of IFD56-45 Flow Divider/Combiner

Operation Symbol of IFD56-45 Flow Divider/Combiner

In the dividing mode, the IFD56-45 will divert input flow from port ③ to ports ②  and ④, based on the ratio specifified, regardless of operating pressure. When the flow direction is reversed the valve will combine flows from ② and ④ to port ③. Synchronizing flow is provided in both the dividing and combining modes at  "bottomed" conditions in cylinder applications and at "stalled" conditions in  motor applications.

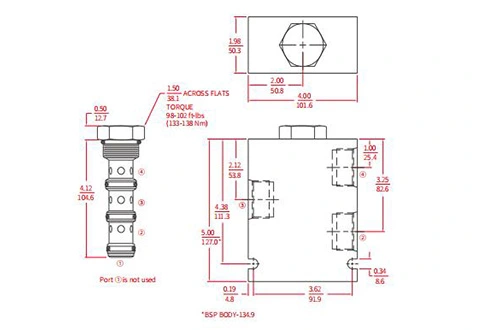

Performance/Dimension/Sectional Drawing of IFD56-45 Flow Divider/Combiner

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IFD56-45 Flow Divider/Combiner
Sectional Drawing
Performance/Dimension/Sectional Drawing of IFD56-45 Flow Divider/Combiner

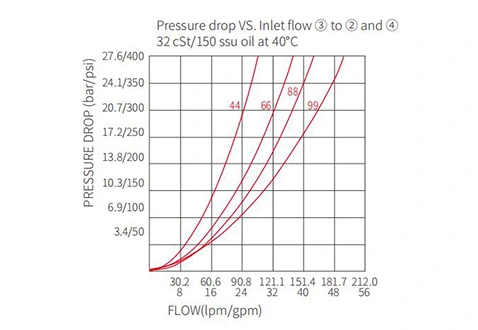

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IFD56-45 Flow Divider/Combiner
