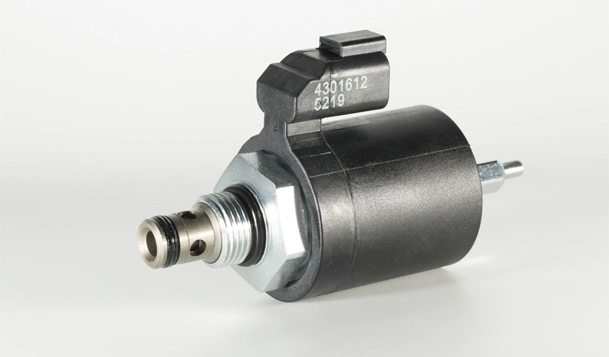

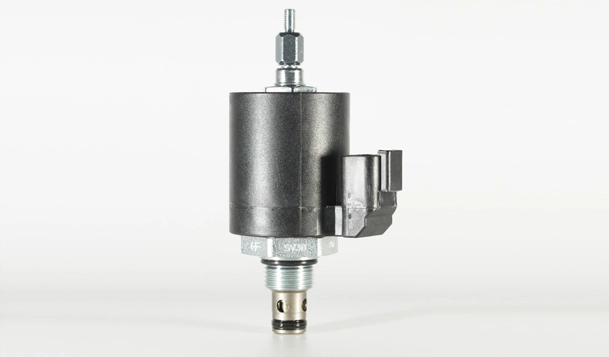

ISV38-20J Poppet 2-Way N.C. Solenoid Valve

This solenoid-operated valve features a poppet design, ensuring secure sealing and precise regulation of fluid flow. With its robust construction and exceptional performance, the ISV38-20J Poppet 2-Way N.C. Solenoid Valve offers superior reliability and versatility, making it an ideal choice for various hydraulic systems.

Products

Specifications of ISV38-20J Poppet 2-Way N.C. Solenoid Valve

Operating Pressure207 bar (3000 psi)
Proof Pressure310 bar (4500 psi)
Flow:See Performance Chart
Internal Leakage:0.15 ml/min. (3 drops/minute) max. at 207 bar (3000 psi)
Temperature-40 to 100°C
Coil Duty RatingContinuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20°C:Standard Coil: 1.67 amps at 12 VDC; 0.18 amps at 115 VAC (full wave rectified).
E-Coil: 1.7 amps at 12 VDC; 0.85 amps at 24 VDC
Minimum Pull-in Voltage85% of nominal at 207 bar (3000 psi)
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Installation:No restrictions
Cavity:IVC08-2


Material

CartridgeWeight: 0.09 kg. (0.20 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal rings.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).
Ductile iron and steel bodies available; dimensions may differ.
Consult Inno.
Standard CoilWeight: 0.27 kg. (0.60 lbs.); Unitized thermoplastic encapsulated, Class H high temperature magnetwire.
E-Coil: Weight: 0.41 kg. (0.90 lbs.); Perfect wound, fully encapsulated with rugged external metal shell; Rated up to IP69K with integral connectors.



Features of ISV38-20J Poppet 2-Way N.C. Solenoid Valve

1. Continuous-duty rated coil.
2. Hardened seat for long life and low leakage.
3. Optional coil voltages and terminations.
4. Cartridges are voltage interchangeable.
5. Unitized, molded coil design
6. Manual override option.
7. Optional waterproof E-Coils rated up to IP69K.
8. Industry common cavity.
9. Compact size

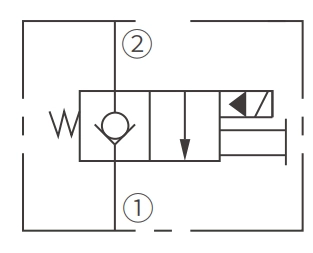

Operation Symbol of ISV38-20J Poppet 2-Way N.C. Solenoid Valve

Operation Symbol of ISV38-20J Poppet 2-Way N.C. Solenoid Valve

When de-energized, the ISV38-20J acts as a check valve, allowing flow from ① to ②, while blocking flow from ② to ①. When energized, the cartridge's poppet lifts to open the ② to ① flow path. In this mode, flow from ① to ② is severely restricted. Operation of Manual Override Option: To manually override, pull and hold the knurled knob. This override is not detented. The pull force required is approximately 20 lbs. The ''J'' option includes a male 10-32 thread for a cable attachment. If a cable is used, the internal valve spring may not provide enough force to overcome internal cable friction. An external means of returning the cable must be provided by the user.

Performance/Dimension/Sectional Drawing of ISV38-20J Poppet 2-Way N.C. Solenoid Valve

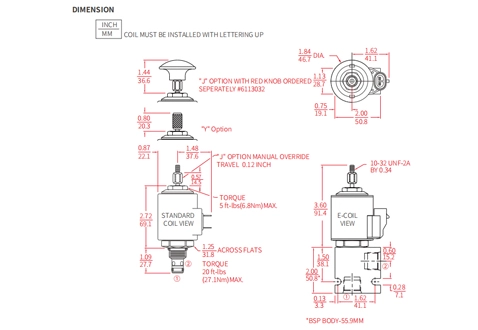

Dimension
Performance/Dimension/Sectional Drawing of ISV38-20J Poppet 2-Way N.C. Solenoid Valve

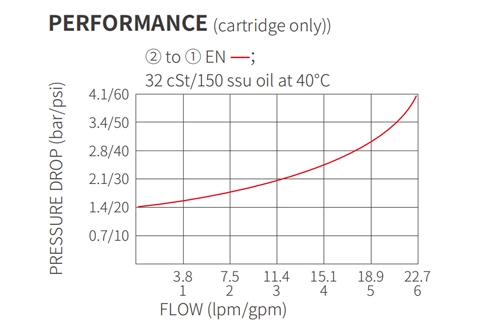

Performance
Performance/Dimension/Sectional Drawing of ISV38-20J Poppet 2-Way N.C. Solenoid Valve

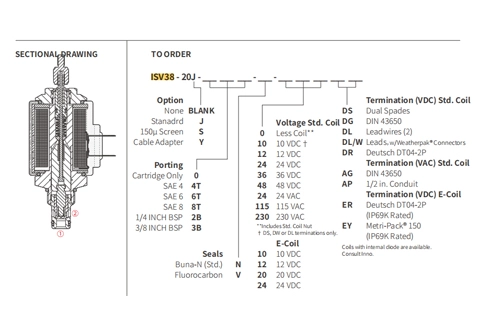

Sectional Drawing
Performance/Dimension/Sectional Drawing of ISV38-20J Poppet 2-Way N.C. Solenoid Valve
