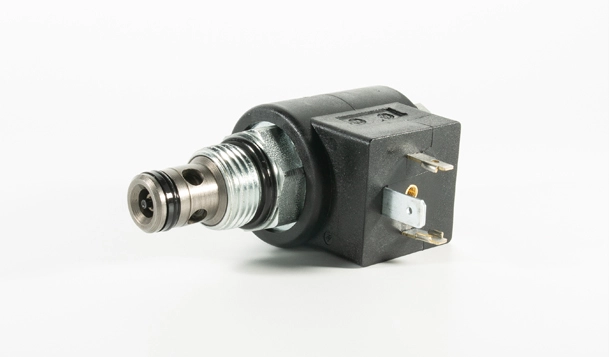

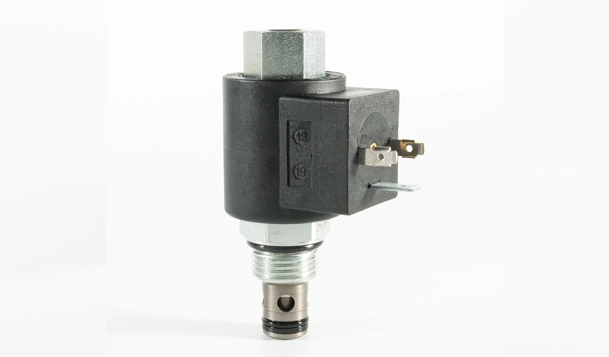

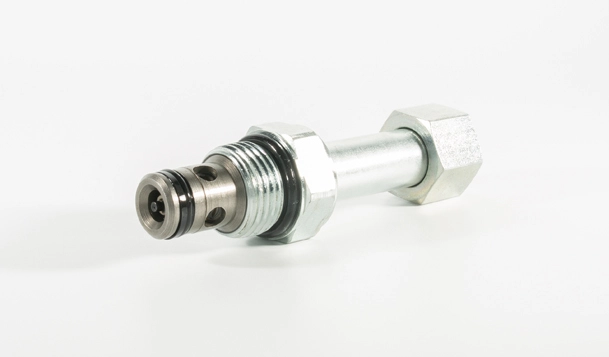

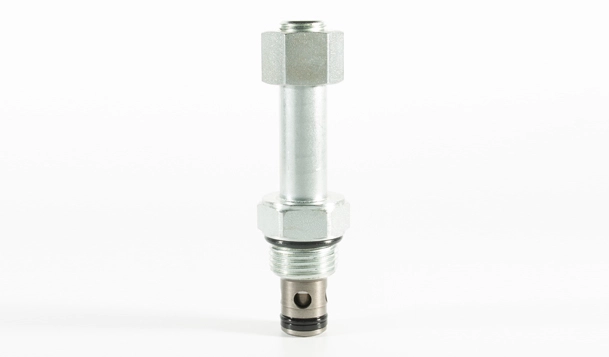

ISV38-28 Poppet 2-Way N.C. Bi-Directional Blocking

This valve ensures optimal protection and safety in hydraulic systems by preventing fluid backflow. With its bi-directional blocking capability and durable construction, the ISV38-28 Poppet 2-Way N.C. Bi-Directional Blocking valve provides dependable performance in demanding hydraulic environments, making it an excellent choice for critical applications.

Products

Specifications of ISV38-28 Poppet 2-Way N.C. Bi-Directional Blocking

Operating Pressure207 bar (3000 psi)
Flow:See Performance Chart
Internal Leakage:0.25 ml/min. (5 drops/minute) max. at 207 bar (3000 psi)
Temperature-40 to 100°C
Coil Duty RatingContinuous from 85% to 115% of nominal voltage
Initial Coil Current Draw at 20°C:Standard Coil: 1.67 amps at 12 VDC; 0.18 amps at 115 VAC (full wave rectified).
E-Coil: 1.7 amps at 12 VDC; 0.85 amps at 24 VDC
Minimum Pull-in Voltage85% of nominal at 207 bar (3000 psi)
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu)
Installation:No restrictions
Cavity:IVC08-2


Material

Cartridge: Weight:0.15 kg. (0.33 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal rings.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).
Ductile iron and steel bodies available; dimensions may differ.
Consult Inno.
Standard CoilWeight: 0.27 kg. (0.60 lbs.); Unitized thermoplastic encapsulated, Class H high temperature magnetwire.
E-CoilWeight: 0.41 kg. (0.90 lbs.); Perfect wound, fully encapsulated with rugged external metal shell; Rated up to IP69K with integral connectors.


Features of ISV38-28 Poppet 2-Way N.C. Bi-Directional Blocking

1. Continuous-duty rated coil.
2. Optional coil voltages and terminations.
3. Cartridges are voltage interchangeable.
4. Efficient wet-armature construction
5. Optional waterproof E-Coils rated up to IP69K.
6. Hardened seat for long life and low leakage.
7. Manual override option.
8. Industry common cavity.

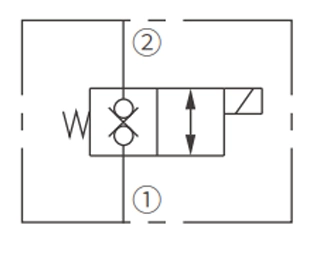

Operation Symbol of ISV38-28 Poppet 2-Way N.C. Bi-Directional Blocking

Operation Symbol of ISV38-28 Poppet 2-Way N.C. Bi-Directional Blocking

When de-energized, the ISV38-28 blocks flow in both directions. When energized, the cartridge's poppet opens on its seat, allowing flow from ② to ① or from ① to ②.

Performance/Dimension/Sectional Drawing of ISV38-28 Poppet 2-Way N.C. Bi-Directional Blocking

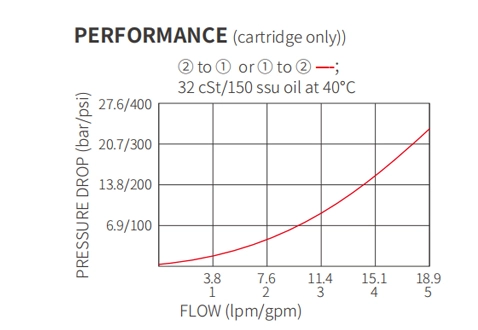

Performance
Performance/Dimension/Sectional Drawing of ISV38-28 Poppet 2-Way N.C. Bi-Directional Blocking

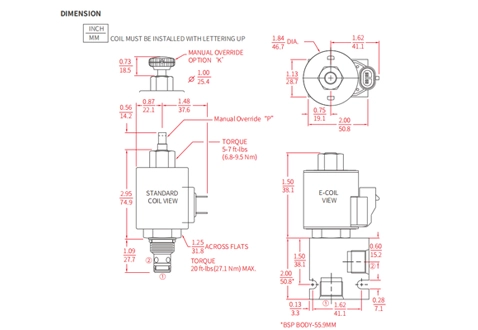

Dimension
Performance/Dimension/Sectional Drawing of ISV38-28 Poppet 2-Way N.C. Bi-Directional Blocking
Sectional Drawing
Performance/Dimension/Sectional Drawing of ISV38-28 Poppet 2-Way N.C. Bi-Directional Blocking
