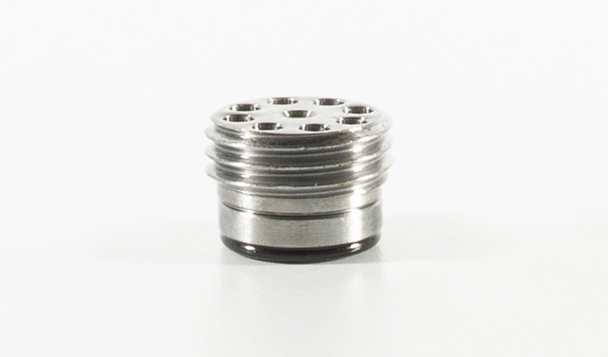

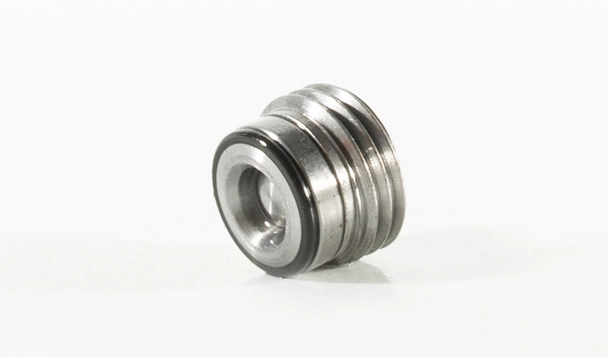

ICV2500-G18 Screw-In Check Valve

ICV2500-G18 is a screw-in directional control valve that functions as a check valve, providing effective backflow prevention in hydraulic systems with a medium flow capacity. This valve is engineered to ensure the unidirectional flow of fluid, preventing any undesired reverse flow that may compromise the performance or safety of hydraulic systems. Its screw-in design allows for easy installation and provides a secure and leak-free connection. ICV2500-G18 is designed to handle moderate flow rates, making it suitable for applications where a medium-sized flow capacity is required. With its reliable performance and ability to prevent backflow, this valve contributes to the overall efficiency and integrity of hydraulic systems, protecting critical components and ensuring optimal operation.

Products

Specifications of ICV2500-G18 Screw-In Check Valve

Operating Pressure350 bar (5100 psi)
FlowSee Performance Chart
Internal Leakage

0.15 ml/minute (3 drops/minute) max. at 350 bar (5100 psi)
Crack Pressure1 bar (14 psi)
Temperature-40℃to 120℃
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 sus)
InstallationNo restrictions
CavityAs below figure


Features of ICV2500-G18 Screw-In Check Valve

1. Hardened seat for long life.
2. Low leakage.
3. Compact size.

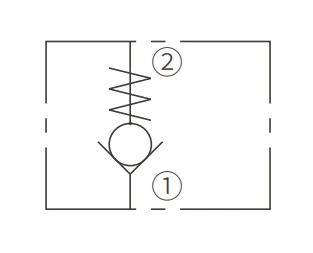

Operation Symbol of ICV2500-G18 Screw-In Check Valve

Operation Symbol of ICV2500-G18 Screw-In Check Valve

The ICV2500-G18 allows flow from① to② once the port① pressure exceeds the crack pressure, while normally blocking oil flow in the opposite direction.

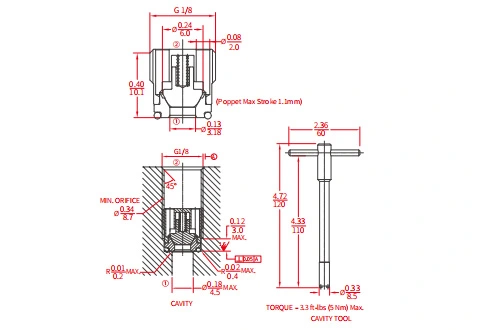

Performance/Dimension/Sectional Drawing of ICV2500-G18 Screw-In Check Valve

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICV2500-G18 Screw-In Check Valve

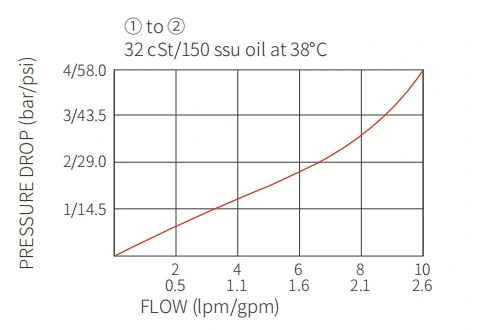

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICV2500-G18 Screw-In Check Valve
