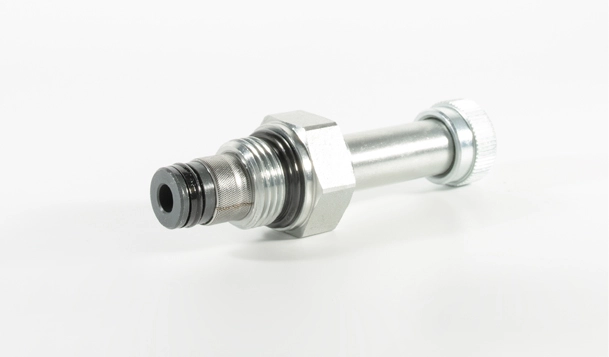

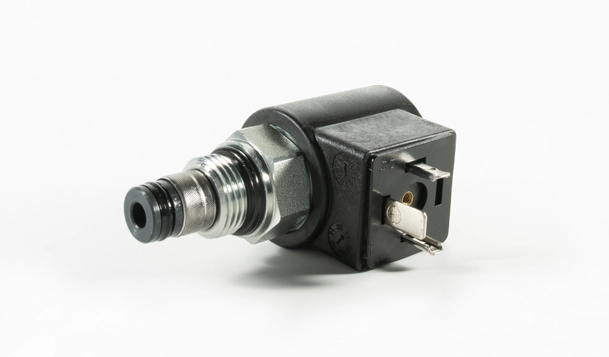

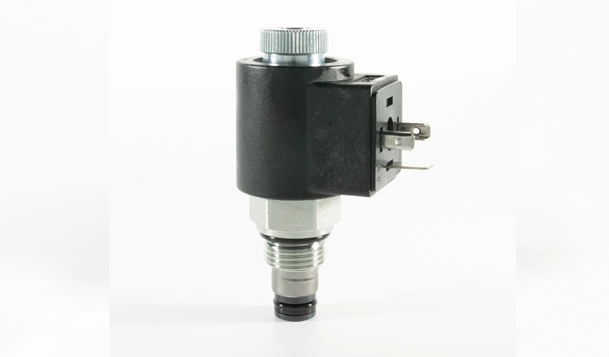

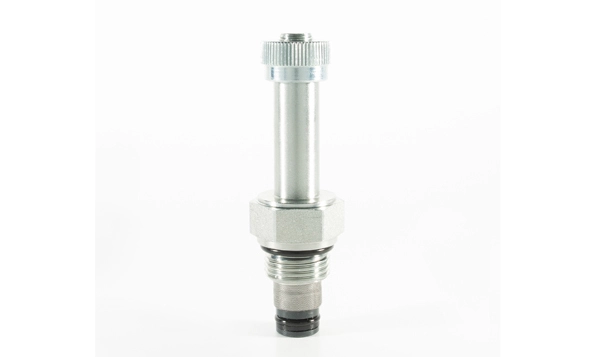

ISV08-B20 Poppet 2-Way N.C. Solenoid Valve (High Performance)

A solenoid-operated, 2-way, normally closed, piloted poppet-type, screw-in hydraulic cartridge valve, intended to act as a blocking or load-holding device for low flow circuits.

Products

Specifications of ISV08-B20 Poppet 2-Way N.C. Solenoid Valve

Operating Pressure207 bar (3000 psi)
Proof Pressure310 bar (4500 psi)
FlowSee Performance Chart
Internal Leakage0.1 ml/min. (2 drops/minute) max. at 207 bar (3000 psi)
Temperature-40 to 100°C
Coil Duty RatingContinuous from 85% to 115% of nominal voltage
Minimum Pull-in Voltage85% of nominal at 207 bar (3000 psi)
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
InstallationNo restrictions
CavityIVC08-2; See page 297


Materials

CartridgeWeight: 0.09 kg. (0.20 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal rings.
Standard Ported BodyWeight: 0.16 kg. (0.35 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Ductile iron and steel bodies available; dimensions may differ.
Consult Inno.
Standard CoilWeight: 0.11 kg. (0.25 lbs.); Unitized thermoplastic encapsulated,
Class H high temperature magnetwire.
E-CoilWeight: 0.41 kg. (0.9 lbs.); Perfect wound, fully encapsulated with rugged
external metal shell; Rated up to IP69K with integral connectors.


Features of ISV08-B20 Poppet 2-Way N.C. Solenoid Valve

1. Continuous-duty rated coil.
2. Hardened seat for long life and low leakage.
3. Optional coil voltages and terminations.
4. Cartridges are voltage interchangeable.
5. Unitized, molded coil design.
6. Manual override option.
7. Optional waterproof E-Coils rated up to IP69K.
8. Industry common cavity.
9. Compact size.

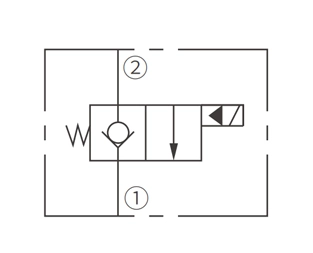

Operation Symbol of ISV08-B20 Poppet 2-Way N.C. Solenoid Valve

Operation Symbol of ISV08-B20 Poppet 2-Way N.C. Solenoid Valve

When de-energized, the ISV08-B20 acts as a check valve, allowing flow from ① to ②, while blocking flow from ② to ①. When energized, the cartridge's poppet lifts to open the ② to ① flow path.


Operation of Manual Override Option


To override, push button in, twist  counterclockwise for 2 turns, and release. To return to normal operation, push  button in, twist clockwise for 2 turns, and release.

Performance/Dimension/Sectional Drawing of ISV08-B20 Poppet 2-Way N.C. Solenoid Valve

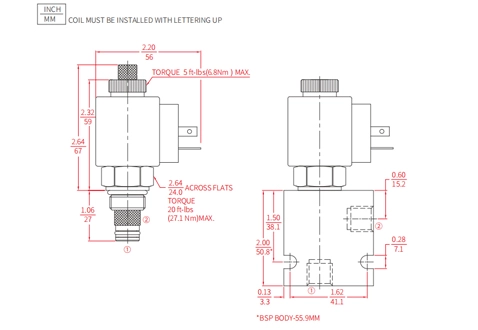

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ISV08-B20 Poppet 2-Way N.C. Solenoid Valve

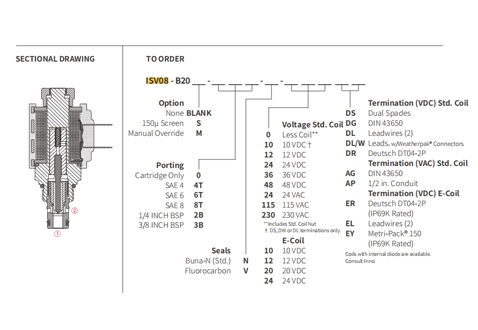

Sectional Drawing
Performance/Dimension/Sectional Drawing of ISV08-B20 Poppet 2-Way N.C. Solenoid Valve

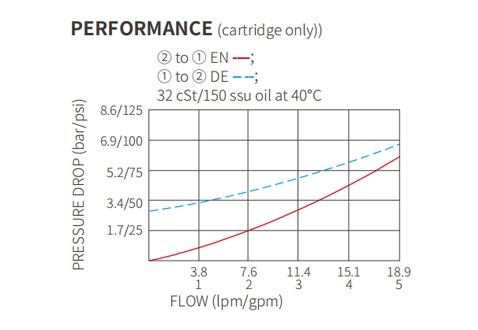

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ISV08-B20 Poppet 2-Way N.C. Solenoid Valve
