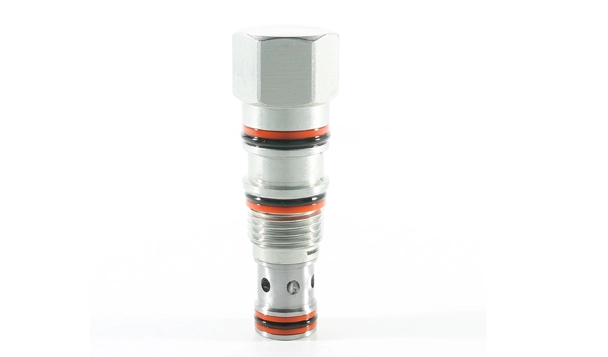

6 spool hydraulic directional control valve
6 spool hydraulic directional control valve

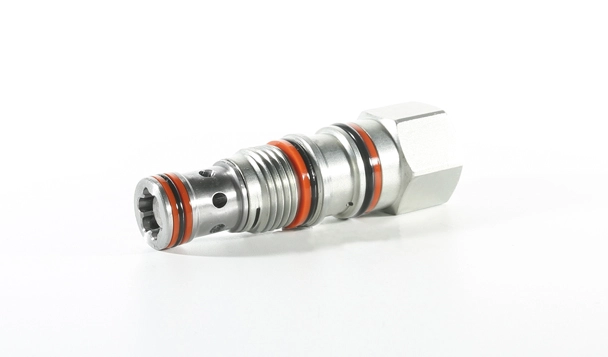

5 2 way directional control valve with double pilots

ICKBB Pilot-to-Open Check Valve

The ICKBB Pilot-To-Open Check Valves are innovative valves designed for fluid control applications. They utilize a pilot-operated mechanism to provide precise control and reliable operation. With their compact size and efficient design, they are well-suited for industries that require accurate and responsive fluid control in a variety of operating conditions.

Products

Specifications of ICKBB Check Valve Pilot-to-Open

Product ModelICKBB CHECK VALVE PILOT-TO-OPEN
Operating Pressure350 bar(5100 psi)
FlowSee Performance Chart
Internal Leakage① to ② : 0.10 ml/min. max (1 drops/minute) at 207 bar (3000 psi)
Pilot Ratio3:1
Check Spring Bias2 bar (29psi) Standard
With Sealed Piston Option-40°℃~120°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIT-163A,See page 310


Material

CartridgeWeight: 0.10kg. (0.22 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealO-rings and back-up rings.


Features of ICKBB Check Valve Pilot-to-Open

1. Hardened seat for long life and low leakage.
2. Optional sealed piston.
3. Optional spring ranges.
4. Compact size.


Operation Symbol of ICKBB Check Valve Pilot-to-Open

Operation Symbol of ICKBB Check Valve Pilot-to-Open

The ICKBB allows flow from ② to ①, while normally blocking oil flow in the opposite direction. The flow will be allowed from ① to ②when sufficient pressure is applied at ③.The check is spring-biased to assure holding in static or no-load conditions.

Performance/Dimension/Sectional Drawing of ICKBB Check Valve Pilot-to-Open

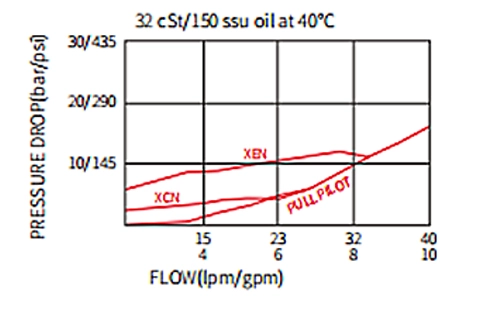

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ICKBB Check Valve Pilot-to-Open

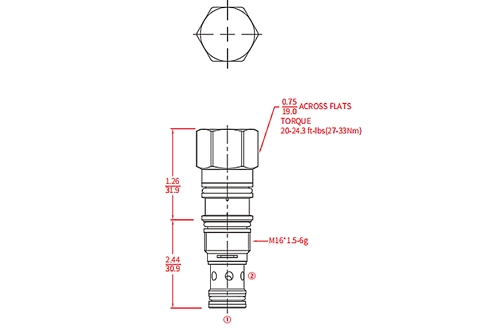

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ICKBB Check Valve Pilot-to-Open

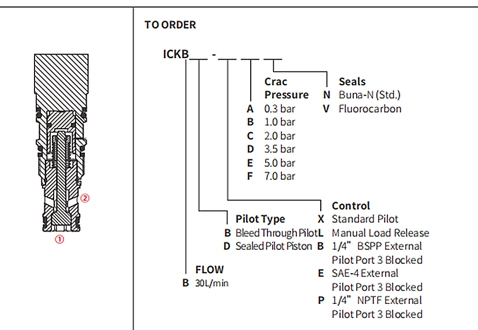

Sectional Drawing
Performance/Dimension/Sectional Drawing of ICKBB Check Valve Pilot-to-Open
