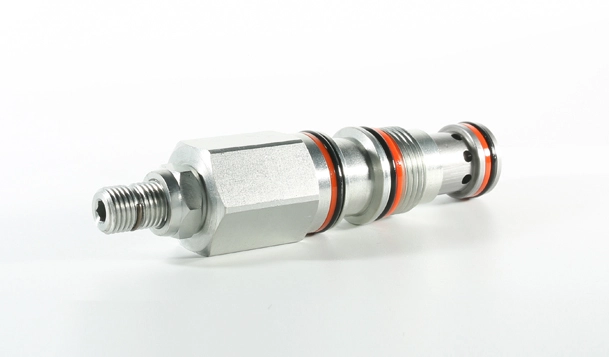

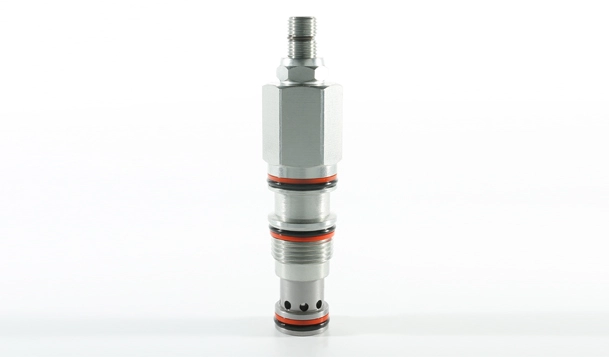

IRSDC-LBN Sequence Valve

The IRSDC-LBN Sequence Valve is a versatile valve designed to control the sequential operation of hydraulic systems. It allows for the precise timing and coordination of multiple actuators or operations, ensuring proper sequence and preventing damage. With its robust construction and adjustable settings, it provides reliable and efficient performance in various industrial applications.

Products

Specifications of IRSDC-LBN Sequence Valve

Product ModelIRSDC-LBN SEQUENCE VALVE
Operating Pressure350 bar(5100 psi)
FlowSee Performance Chart
Internal Leakage30 ml/min. max. at 70bars
Response Time10 ms
Standard Spring RangesSee Ordering code on the right
Temperature3:01-40°℃~120°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIT-11A,See page 309


Features of IRSDC-LBN Sequence Valve

1. On attainment of a preset pressure on port ① (inlet), which is related to the pressure on port ③ (drain), the pilot-flow increases.
2. The orifice of the main stage is protected by a 150μm stainless steel screen.
3. The pressure on port ③ will directly (1:1) affect the valve's setting value, and cannot exceed 5000 psi (350 bar).
4. Due to the leakage of spool, it is not suitable for use for load lock application.
5. The retaining ring on the adjusting rod limits the adjustment stroke to prohibit springs from going solid.
6. Hardened spool and cage for long life.
7. Compact structure for long life.

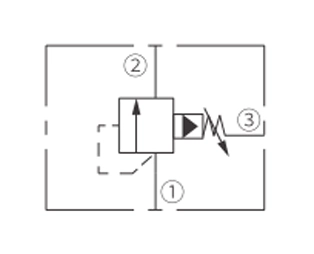

Operation Symbol of IRSDC-LBN Sequence Valve

Operation Symbol of IRSDC-LBN Sequence Valve

The piloted sequence valve with balanced spool will supply oil to the secondary circuit once a preset pressure is attained on inlet ①. The setting of the sequence valve will control the pressure on port ① related to the pressure on the drain port ③. This type of valve is not sensitive until the back pressure on port ② (sequence port) rises to the preset pressure. If there is pressure in the circuit, it can be used to replace the relief valve of port ② to adjust the pressure.

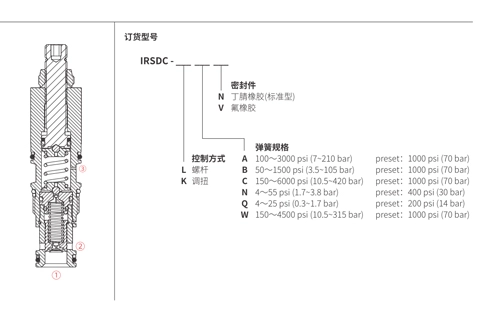

Performance/Dimension/Sectional Drawing of IRSDC-LBN Sequence Valve

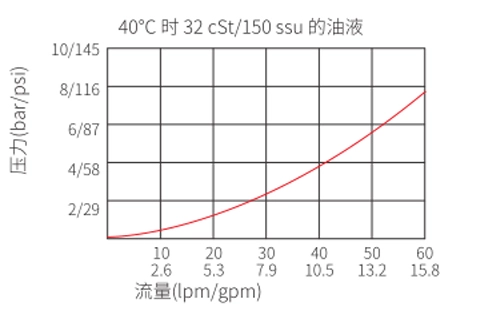

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of IRSDC-LBN Sequence Valve

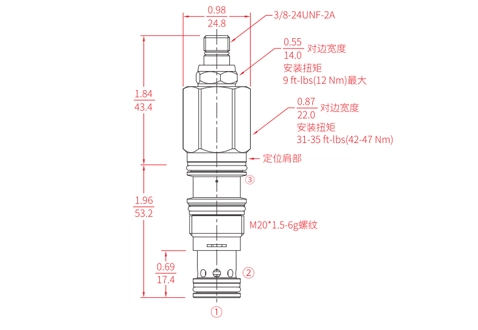

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IRSDC-LBN Sequence Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of IRSDC-LBN Sequence Valve
