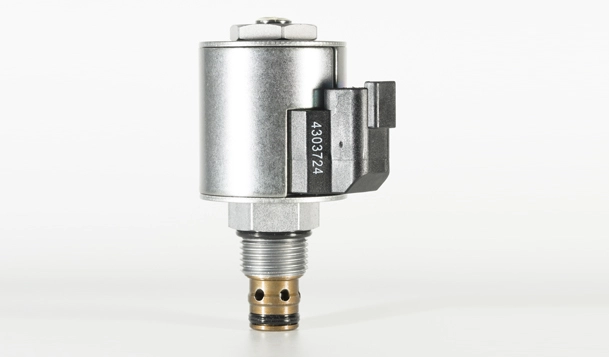

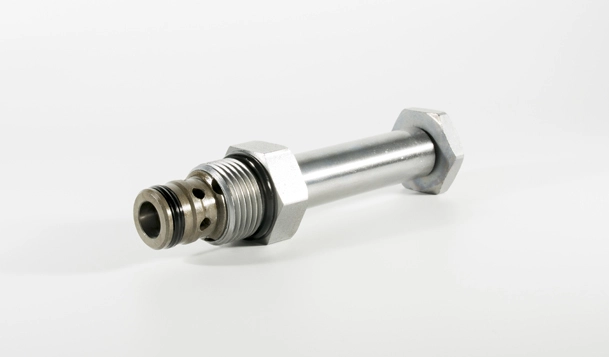

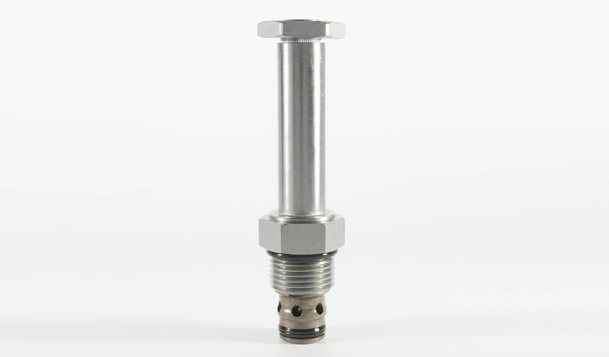

ITS10-26 Piloted Relief Valve

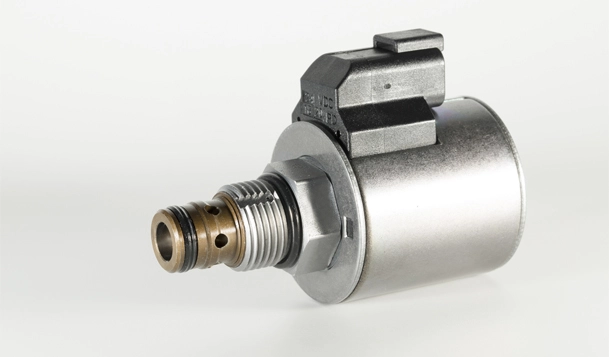

A screw-in, cartridge-style, pilot-operated, spool-type hydraulic relief valve, which can be infinitely adjusted across a prescribed range using a variable electric input Pressure output is proportional to DC current input. This valve is intended for useas a pressure limiting device in demanding applications.

Products

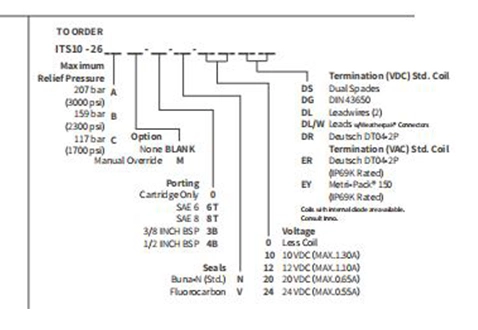

Specifications of ITS10-26 Piloted Relief Valve

Operating Pressure240 bar (3500 psi)
Maximum Control Current1.10 A for 12 VDC coil; 0.55 A for 24 VDC coil
Relief Pressure Range from Zero to Maximum Control Current

A: 6.9 to 207 bar (100 to 3000 psi);

B: 6.9 to 159 bar (100 to 2300 psi);

C: 6.9 to 117 bar (100 to 1700 psi)
Rated Flow94.6 lpm (25 gpm), DP=13.1 bar (190 psi), Cartridge only, ① to② coil
de-energized
Maximum Pilot pressure0.76 lpm (0.2 gpm)
HysteresisLess than 3%
Flow PathFree Flow: ① to② coil de-energized; Relieving:① to ②coil energized
Temperature-40 to 120°C with standard Buna N seals
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Installation RecommendationWhen possible, the valve should be mounted below the reservoir oil level. This will maintain oil in the armature preventing trapped air instability. If this is not feasible, mount the valve horizontally for best results.
CavityIVC10-2; See page 275


Materials

CartridgeWeight: 0.25 kg. (0.55 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces;
Seal:O-rings and back-up rings. Polyurethane seals recommended for
pressures over 240 bar (3500 psi).
Standard Ported BodyWeight: 1.06 kg. (0.25 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi); Ductile iron and steel
bodies available; dimensions may differ; Consult Inno.
Standard CoilWeight: 0.32 kg. (0.70 lbs.); Unitized thermoplastic encapsulated,
Class H high temperature magnetwire.
E-CoiWeight: 0.41 kg. (0.90 lbs.); Perfect wound, fully encapsulated with rugged
external metal shell; Rated up to IP69K with integral connectors.


Features of ITS10-26 Piloted Relief Valve

1. Optional Manual Override, with air release port.
2. Optional waterproof E-Coils rated up to IP69K.
3. 12 and 24 volt coils standard.
4. Industry common cavity.

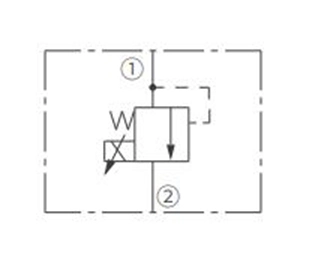

Operation Symbol of ITS10-26 Piloted Relief Valve

Operation Symbol of ITS10-26 Piloted Relief Valve

The ITS10-26 blocks flow from ① to ② until sufficient pressure is present at ① to open the pilot section by offsetting the electrically induced solenoid force. With no current applied to the solenoid, the valve will relieve at approximately 100 psi. The optional manual override allows the valve to be set when the electric supply  is lost. The manual setting is added to the electric setting, so when using the manual override feature to establish a minimum setting, care is required to prevent the system from becoming over-pressurized.

Performance/Dimension/Sectional Drawing of ITS10-26 Piloted Relief Valve

Sectional Drawing
Performance/Dimension/Sectional Drawing of ITS10-26 Piloted Relief Valve

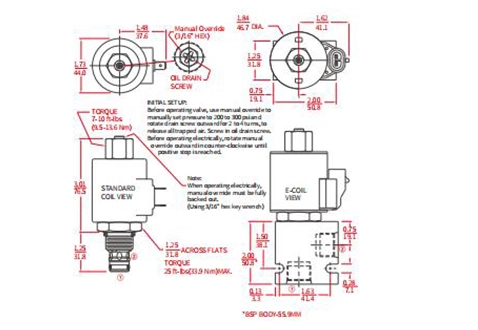

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ITS10-26 Piloted Relief Valve

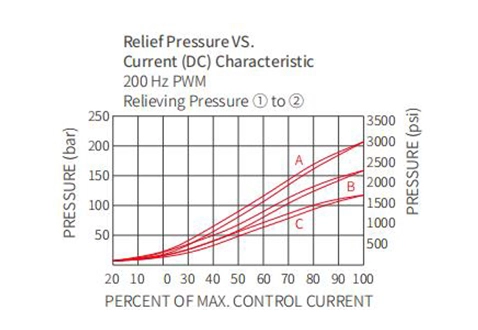

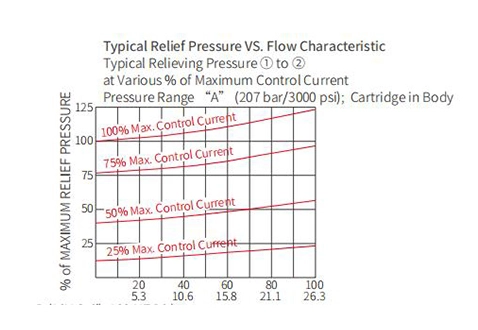

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ITS10-26 Piloted Relief Valve

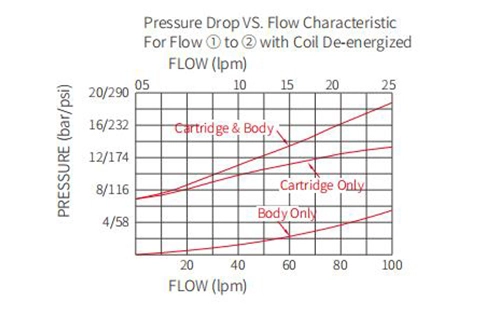

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ITS10-26 Piloted Relief Valve
PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ITS10-26 Piloted Relief Valve
