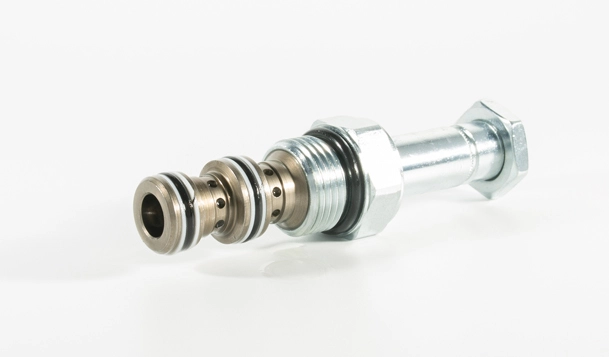

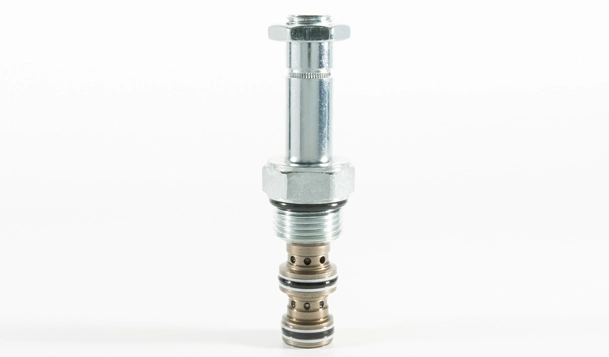

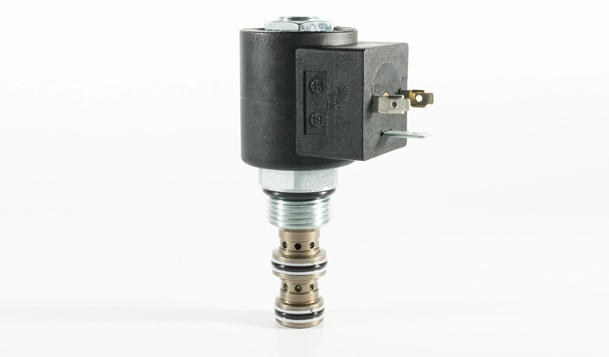

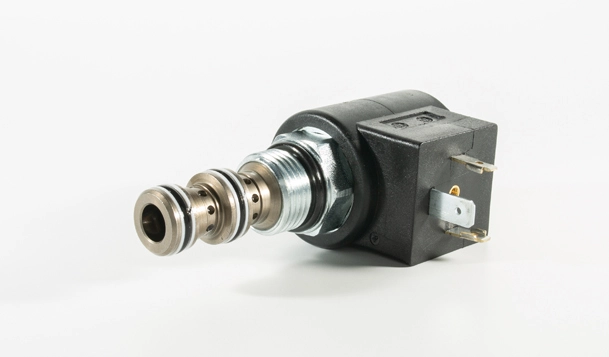

ISV08-31 Spool 3-Way 2-Position Solenoid Valve

A solenoid-operated, 3-way, 2-position, direct-acting spool-type, screw-in hydraulic cartridge valve, designed to control flow direction of actuator.

Products

Specifications of ISV08-31 Spool 3-Way 2-Position Solenoid Valve

Operating Pressure207 bar (3000 psi)
FlowSee Performance Chart
NoteUnder certain operating conditions this valve may be rated for higher flow. Consult Inno.
Internal Leakage82 ml/min. (5 cu. in./minute) max. at 207 bar (3000 psi)
Temperature-40 to 100°C
Coil Duty RatingContinuous from 85% to 115% of nominal voltage
Response TimeFirst indication of change of state with 100% voltage supplied at
80% of nominal flow rating:
Energized: 30 msec.; De-energized: 25 msec.
Initial Coil Current Draw at 20°CStandard Coil: 1.2 amps at 12 VDC;
0.13 amps at 115 VAC (full wave rectified).
E-Coil: 1.4 amps at 12 VDC; 0.7 amps at 24 VDC
Minimum Pull-in Voltage85% of nominal at 207 bar (3000 psi)
FluidsMineral-based or synthetics with lubricating properties at viscosities of
7.4 to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC08-3; See page 298


Material

CartridgeWeight: 0.13 kg. (0.28 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal rings.
Standard Ported BodyWeight: 0.27 kg. (0.60 lbs.); Anodized high-strength steel
bodies; Ductile iron bodies available; dimensions may differ.
Consult Inno.
Standard CoilWeight: 0.11 kg. (0.25 lbs.); Unitized thermoplastic encapsulated,
Class H high temperature magnetwire.
E-CoilWeight: 0.14 kg. (0.30 lbs.); Perfect wound, fully encapsulated with rugged
external metal shell; Rated up to IP69K with integral connectors.


Features of ISV08-31 Spool 3-Way 2-Position Solenoid Valve

1. Continuous-duty rated coil.
2. Hardened precision spool and cage for long life.
3. Optional coil voltages and terminations.
4. Efficient wet-armature construction.
5. Cartridges are voltage interchangeable.
6.  All ports may be fully pressurized.
7.Manual override option.
8. Optional waterproof E-Coils rated up to IP69K.
9. Unitized, molded coil design.
10.Compact size.

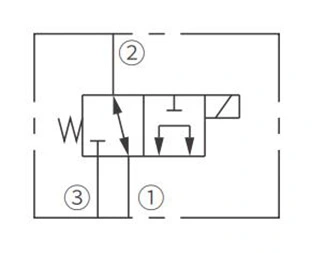

Operation Symbol of ISV08-31 Spool 3-Way 2-Position Solenoid Valve

Operation Symbol of ISV08-31 Spool 3-Way 2-Position Solenoid Valve

When de-energized, the ISV08-31 allows flow from ② to ①, while blocking flow at ③. When energized, the cartridge's spool shifts to open the ① to ③ flow path, while  blocking flow at ②.

Performance/Dimension/Sectional Drawing of ISV08-31 Spool 3-Way 2-Position Solenoid Valve

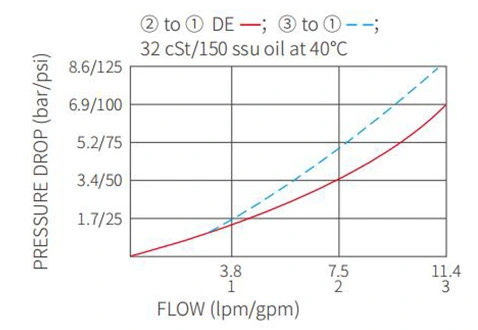

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of ISV08-31 Spool 3-Way 2-Position Solenoid Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of ISV08-31 Spool 3-Way 2-Position Solenoid Valve

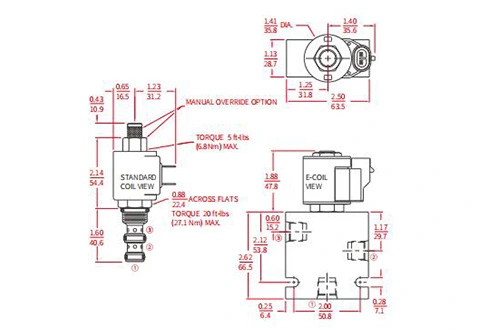

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ISV08-31 Spool 3-Way 2-Position Solenoid Valve
