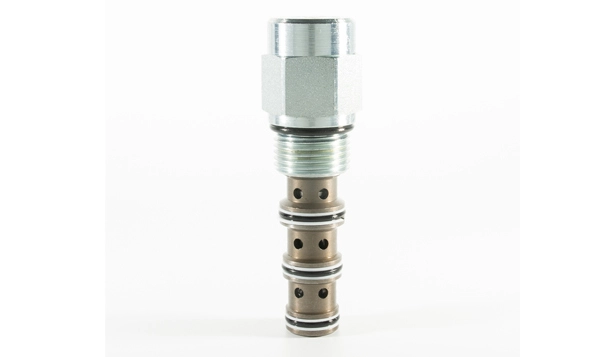

IPD10-42 Piloted 3-Way Spool Valve

The IPD10-42 Piloted 3-Way Spool Valve is a versatile valve designed for precise control of fluid flow. With its piloted mechanism, it offers reliable and accurate switching between different flow paths. Suitable for various industrial applications, it delivers efficient performance and enables optimal flow management in complex systems.

Products

Specifications of IPD10-42 Piloted 3-Way Spool Valve

Product ModelIPD10-42 PILOTED 3-WAY SPOOL VALVE
Operating Pressure240 bar(3500 psi)
Proof Pressure350 bar(5100 psi)
FlowSee Performance Chart
Internal Leakage82 ml/min. max (5 cu. in./minute) at 207 bar (3000 psi)
Pilot Pressure RequiredTo Spool Crossover: 4.1 bar (60 psi) Spring:4.7 bar(68.2 psi);7.6 bar (110 psi) Spring:7.6 bar(110 psi).To Full Spool Shift:4.1 bar (60 psi) Spring: 5.2 bar (75 psi);7.6 bar (110 psi) Spring: 8.6 bar (125 psi)
Oil Volume Required to Full Shift0.65 ml (0.04 cu. in.)
Temperature-40°℃~100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu)
CavityIVC10-4,See page 302


Material

CartridgeWeight: 0.16kg. (0.35 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.
SealD type seal ring.
Standard Ported BodyWeight: 0.34 kg. (0.75 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).

Ductile iron and steel bodies available; dimensions may differ. Consult Inno.

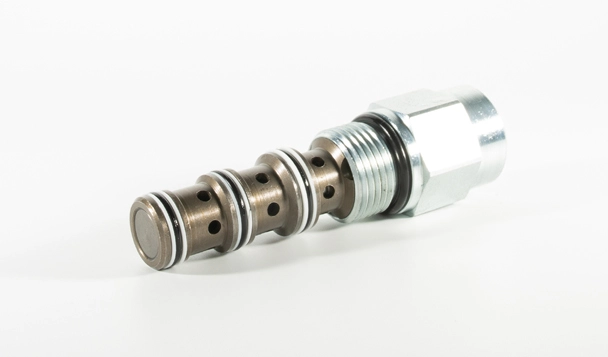

Features of IPD10-42 Piloted 3-Way Spool Valve

1. Hardened spool and cage for long life.
2. Industry common cavity.

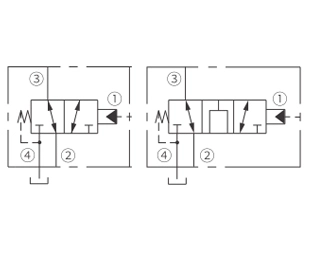

Operation Symbol of IPD10-42 Piloted 3-Way Spool Valve

Operation Symbol of IPD10-42 Piloted 3-Way Spool Valve

In a neutral position (unpiloted), the IPD12-42 allows flow from ③ to ② bidirectionally, while the flow is blocked at ④. On remote pilot signal at ①, the valve shifts to open from ③ to ④, while blocking flow to ②. Since ④ is connected to the spring chamber, pressure on ④ will directly (1:1) affect the pilot pressure required, and must always be added to the bias spring value.
Note: Consult Inno for applications where bi-directional flow is required when the valve is in the normal or spring-offset position.

Performance/Dimension/Sectional Drawing of IPD10-42 Piloted 3-Way Spool Valve

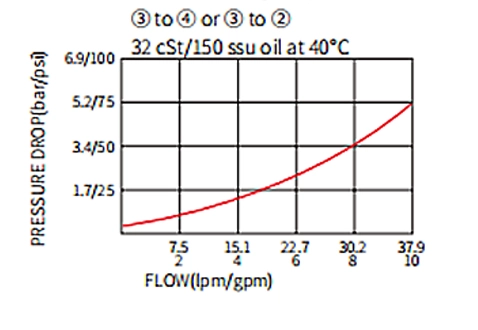

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IPD10-42 Piloted 3-Way Spool Valve

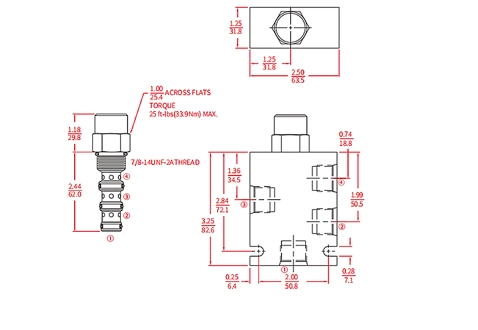

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IPD10-42 Piloted 3-Way Spool Valve

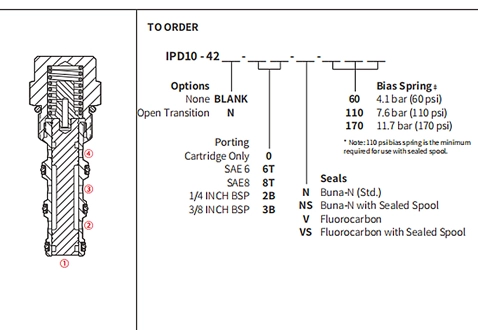

Sectional Drawing
Performance/Dimension/Sectional Drawing of IPD10-42 Piloted 3-Way Spool Valve
