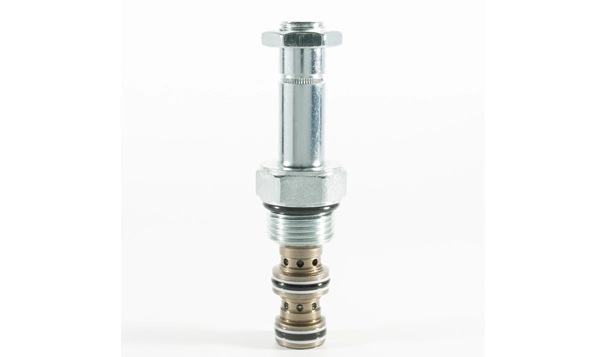

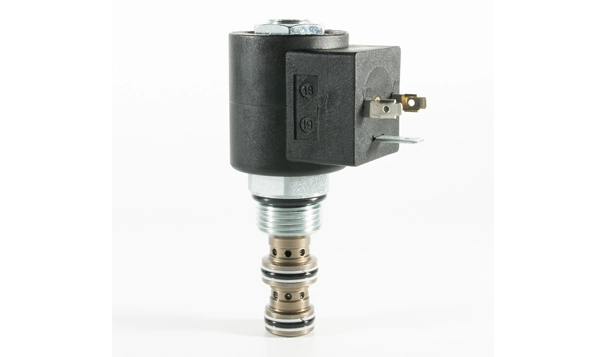

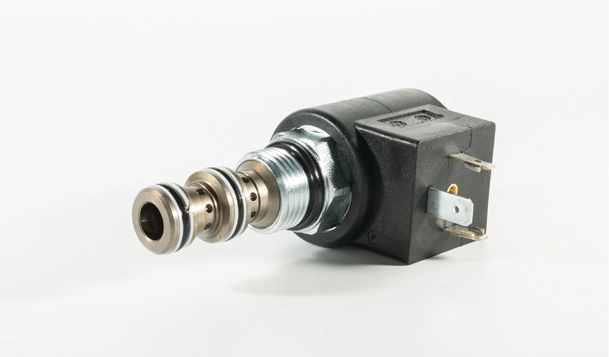

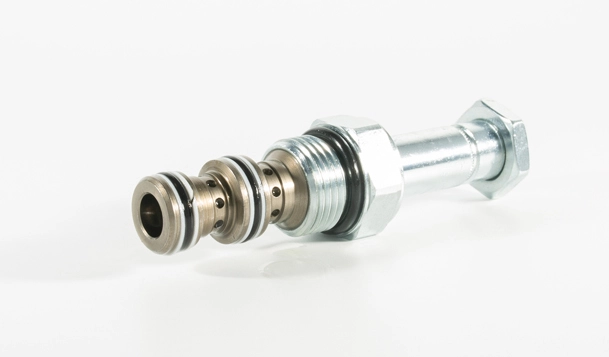

ISV08-B31 Spool 3-Way 2-Position Solenoid Valve

The ISV08-B31 Spool, 3-Way, 2-Position valve is a compact and versatile valve designed for precise fluid control in hydraulic systems. With its 3-way configuration and 2-position operation, it allows for efficient control over the direction of fluid flow. Its reliable performance and sturdy construction make it suitable for various industrial applications.

Products

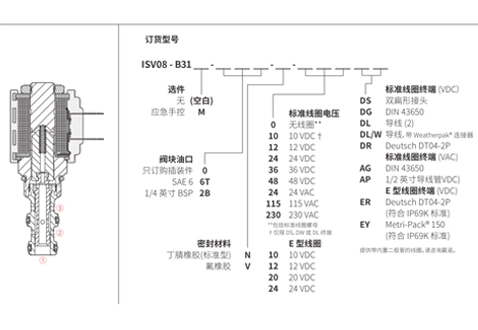

Specifications of ISV08-B31 Spool, 3-Way, 2-Position Solenoid Valve

Product ModelISV08-B31 SPOOL, 3-WAY, 2-POSITION
Operating Pressure207 bar (3000 psi)
FlowSee Performance Chart
Internal Leakage82 ml/min. (5 cu. in./minute) max. at 207 bar (3000 psi)
Temperature-40°℃~100°C
Coil Duty RatingContinuous from 85% to 115% of nominal voltage
Response TimeFirst indication of change of state with 100% voltage supplied at 80% of nominal flow rating: Energized: 30 msec.; De-energized: 25 msec
Initial Coil Current Draw at 20°CStandard Coil: 1.2 amps at 12 VDC; 0.13 amps at 115 VAC (full wave rectified).E-Coil: 1.4 amps at 12 VDC; 0.7 amps at 24 VDC
Minimum Pull-in Voltage85% of nominal at 207 bar (3000 psi)
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: No restrictions
CavityIVC08-3, See page 298


Material

CartridgeWeight: 0.13 kg. (0.28 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.Seal: D type seal rings.
Standard Ported BodyWeight: 0.27 kg. (0.60 lbs.); Anodized high-strength steel bodies; Ductile iron bodies available; dimensions may differ. Consult Inno.
Standard CoilWeight: 0.11 kg. (0.25 lbs.); Unitized thermoplastic encapsulated, Class H high temperature magnetwire.
E-CoilWeight:0.14 kg. (0.30 lbs.); Perfect wound, fully encapsulated with rugged external metal shell; Rated up to IP69K with integral connectors.


Features of ISV08-B31 Spool, 3-Way, 2-Position Solenoid Valve

1. Continuous-duty rated coil.
2. Hardened precision spool and cage for long life.
3. Optional coil voltages and terminations.
4. Efficient wet-armature construction.
5. Cartridges are voltage interchangeable.
6. All ports may be fully pressurized.
7. Manual override option.
8. Optional waterproof E-Coils rated up to IP69K.
9. Unitized, molded coil design.
10. Compact size.

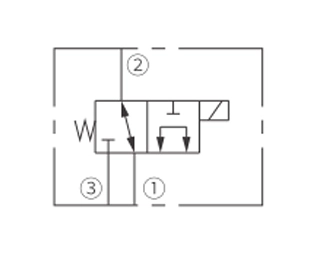

Operation Symbol of ISV08-B31 Spool, 3-Way, 2-Position Solenoid Valve

Operation Symbol of ISV08-B31 Spool, 3-Way, 2-Position Solenoid Valve

When de-energized, the ISV08-B31 allows flow from ② to ①, while blocking flow at ③.When energized, the cartridge’s spool shifts to open the ① to ③ flow path, while blocking flow at ②.Operation of Manual Override Option: To override, push button in, twist counterclockwise 180°, and release. The internal spring will push the button out. In this position, the valve may be only partially shifted. To assure full override shift, pull the button out to its fullest extension and hold it in this position. To return to normal operation, push button in, twist clockwise 180°, and release.Override will be detented in this position.

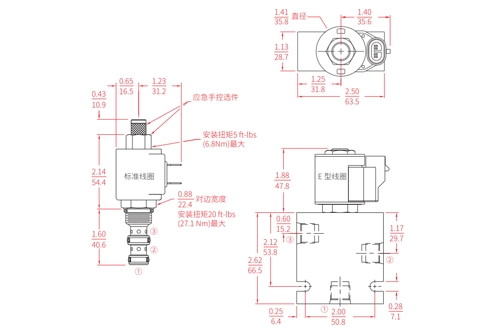

Performance/Dimension/Sectional Drawing of ISV08-B31 Spool, 3-Way, 2-Position Solenoid Valve

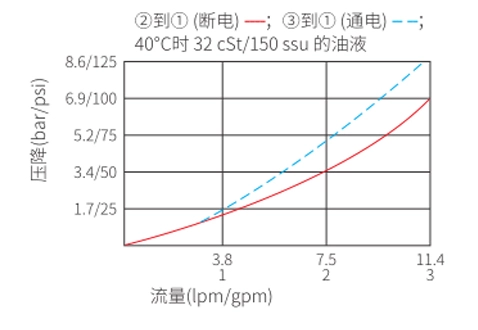

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of ISV08-B31 Spool, 3-Way, 2-Position Solenoid Valve
DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ISV08-B31 Spool, 3-Way, 2-Position Solenoid Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of ISV08-B31 Spool, 3-Way, 2-Position Solenoid Valve
