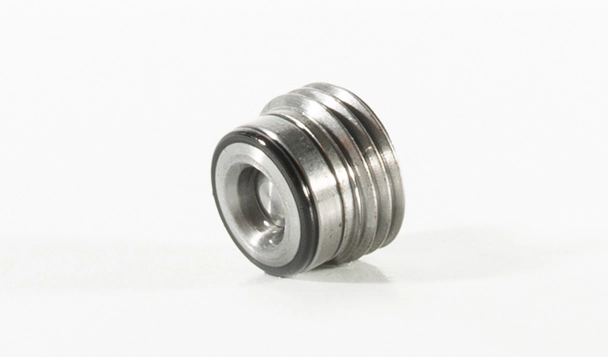

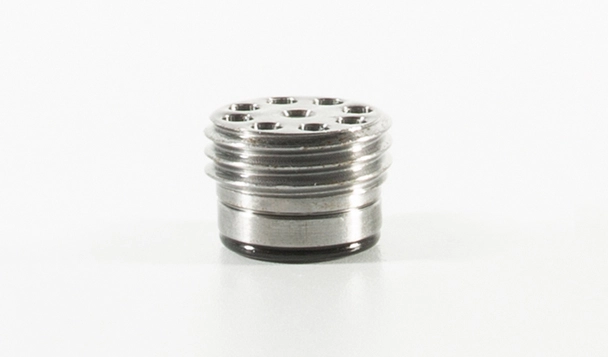

ICV2000-G12 Screw-In Check Valve

Name: ICV2000-G12 Screw-In Check Valve
Brand: Wuhu Inno Hydraulic Technology Co., Ltd.

This valve is designed to be easily integrated into hydraulic systems, providing efficient and reliable prevention of reverse flow. Its screw-in design allows for straightforward installation and ensures a secure and leak-free connection. The ICV2000-G12 is built to withstand high pressures and offers excellent resistance to corrosion, making it well-suited for demanding hydraulic applications. By effectively preventing backflow, this valve helps maintain the integrity and efficiency of hydraulic systems, safeguarding critical components and preventing potential damage or malfunctions.

Get a Quote

Specifications of ICV2000-G12 Screw-In Check Valve

Operating Pressure	350 bar (5100 psi)

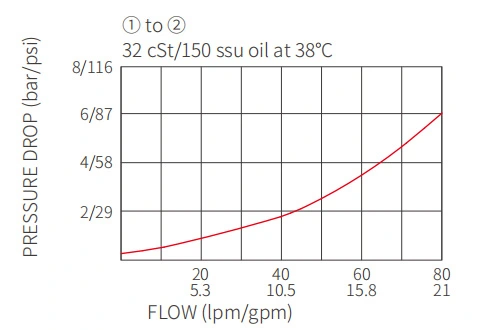

Flow	See Performance Chart
Internal Leakage	0.15 ml/minute (3 drops/minute) max. at 350 bar (5100 psi)
Standard Bias Springs at Crack	< 0.5 bar (7.3 psi)
Temperature	-40℃to 120℃
Fluids	Mineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 sus)
Installation	No restrictions

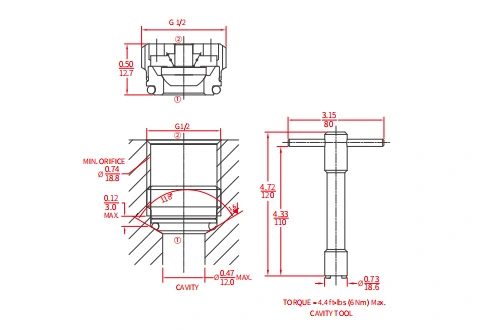

Cavity	As below figure

Features of ICV2000-G12 Screw-In Check Valve

1. Hardened seat for long life.

2. Low leakage.

3. Compact size.

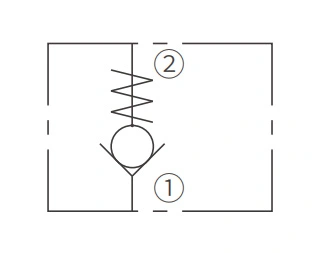

Operation Symbol of ICV2000-G12 Screw-In Check Valve

The ICV2000-G12 allows flow from ① to ② once the port ① pressure crack pressure, while normally blocking oil flow in the opposite direction exceeds the crack pressure, while normally blocking oil flow in the opposite direction.
