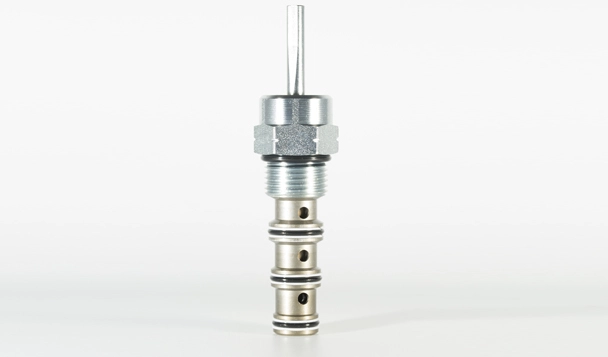

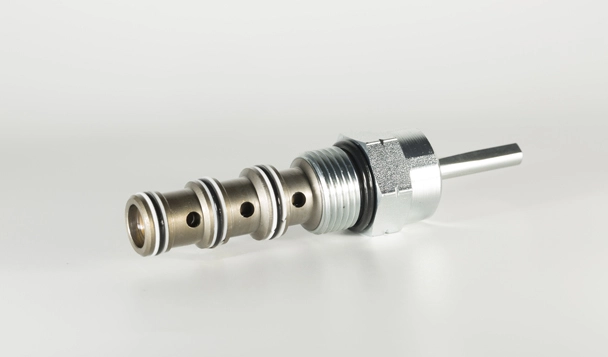

IMR10-47B Manual Directional Valve

This valve empowers operators with the ability to adjust and direct the flow of fluid, enabling precise control over the operation of hydraulic machinery and systems. Its robust construction and intuitive design make it a reliable choice for various hydraulic applications, including industrial equipment, agricultural machinery, and construction vehicles. The IMR10-47B manual directional valve ensures efficient and responsive fluid flow control, providing operators with the flexibility and control needed to optimize the performance of hydraulic systems.

Products

Specifications of IMR10-47B Manual Directional Valve

Operating Pressure240 bar (3500 psi)
FlowSee Performance Chart
Internal Leakage
164 ml/min. max (10 cu. in./minute) at 240 bar (3500 psi)
Temperature-40 to 100°C
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4
to 420 cSt (50 to 2000 ssu)
InstallationNo restrictions
CavityIVC10-4; See page 302


Material

CartridgeWeight: 0.13kg. (0.29 lbs.); Steel with hardened work surfaces.
Zinc-plated exposed surfaces.
Seal: D type seal ring.
Standard Ported BodyWeight: 0.34 kg. (0.75 lbs.); Anodized high-strength 6061
T6 aluminum alloy, rated to 240 bar (3500 psi).
Ductile iron and steel bodies available; dimensions may differ.
Consult Inno.
Lever-Type Handle(Sold Separately): Weight: 0.18 kg. (0.38 lbs.);
Steel with hardened work surfaces. Zinc-plated exposed surfaces.
Plastic lever arm.


Features of IMR10-47B Manual Directional Valve

1. Three-position detent, friction lock (with detented neutral), or spring return operators may be ordered separately.
2. May be fully pressurized at all ports.
3. Optional lock-down bracket.
4. Heavy-duty construction.
5. Industry common cavity

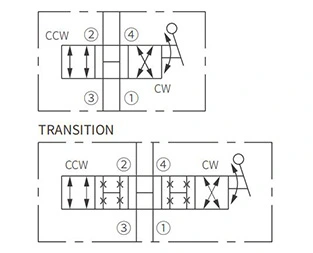

Operation Symbol of IMR10-47B Manual Directional Valve

Operation Symbol of IMR10-47B Manual Directional Valve

Three positions: centered, 45° counterclockwise, and 45° clockwise.  In the center position, all ports are open. In the 45° counterclockwise from the center position,  ports ① and ④ are open while ports ②and ③are open.  In the 45° clockwise from the center position, ports ① and ② are open while ports ③ and ④are open. All ports are partially open in transition.

Performance/Dimension/Sectional Drawing of IMR10-47B Manual Directional Valve

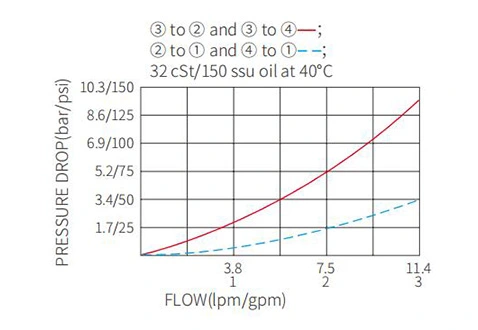

PERFORMANCE (cartridge only)
Performance/Dimension/Sectional Drawing of IMR10-47B Manual Directional Valve

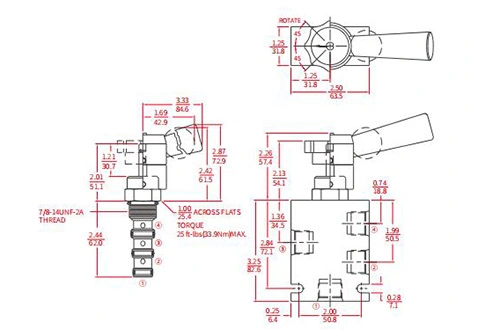

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of IMR10-47B Manual Directional Valve

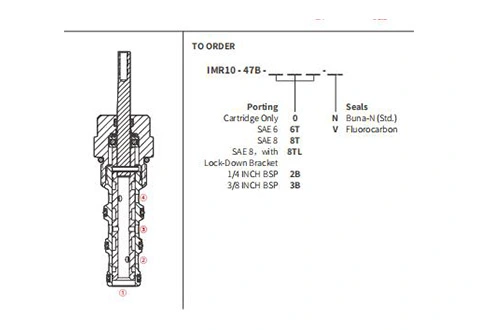

Sectional Drawing
Performance/Dimension/Sectional Drawing of IMR10-47B Manual Directional Valve
