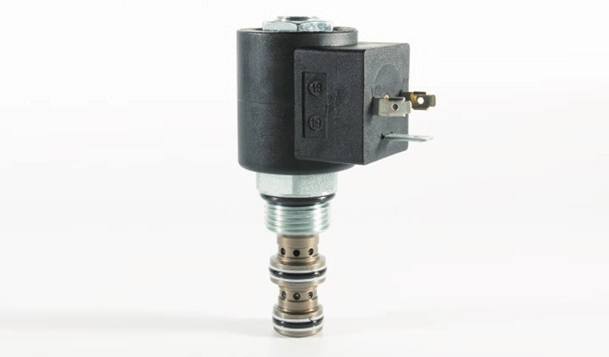

ISV08-B35 Spool 3-Way 2-Position Solenoid Valve (High Pressure)

The ISV08-B35 Spool, 3-Way, 2-Position valve is a robust hydraulic valve specifically designed for high-pressure conditions. It offers precise control over fluid flow direction with its 3-way configuration and 2-position operation. With its durable construction and ability to withstand high-pressure environments, it is ideal for industrial applications requiring reliable fluid control in demanding conditions.

Products

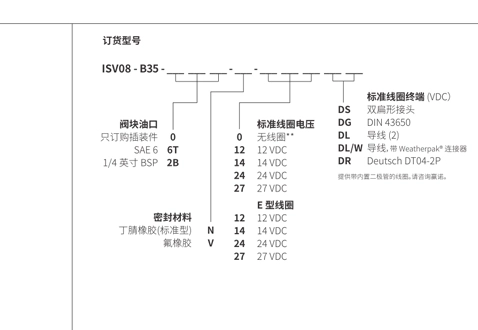

Specifications of ISV08-B35 Spool, 3-Way, 2-Position Solenoid Valve

Product ModelISV08-B35 SPOOL, 3-WAY, 2-POSITION (HIGH PRESSURE)
Operating PressureMax. 250 bar (3600 psi)
Flow20L/min(5GPM)
Internal Leakage60 ml/min. max. at 100 bar (1450 psi)
Temperature-40°℃~100°C
Response TimePull-In: 100 msec.; Drop-Out: 100 msec
Initial Coil Current Draw at 20°CStandard Coil: 1.46 amps at 14 VDC
FluidsMineral-based or synthetics with lubricating properties at viscosities of 7.4 to 420 cSt (50 to 2000 ssu).Installation: Cavity:No restrictions
CavityIVC08-3, See page 298


Material

CartridgeWeight: 0.22 kg. (0.48 lbs.); Steel with hardened work surfaces. Zinc-plated exposed surfaces.Seal: D type seal rings.
Standard Ported BodyWeight: 0.27 kg. (0.60 lbs.); Anodized high-strength 6061 T6 aluminum alloy, rated to 240 bar (3500 psi).Ductile iron and steel bodies available; dimensions may differ. Consult Inno.
E-Coil0.14 kg. (0.30 lbs.); Perfect wound, fully encapsulated with rugged external metal shell; Rated up to IP69K with integral connectors.


Features of ISV08-B35 Spool, 3-Way, 2-Position Solenoid Valve

1. Continuous-duty rated coil.
2. Hardened seat for long life and low leakage.
3. Optional coil voltages and terminations.
4. All ports may be fully pressurized.
5. Heavy-duty waterproof E-Coils rated up to IP69K.

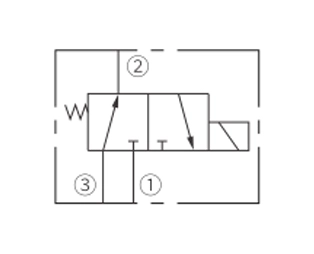

Operation Symbol of ISV08-B35 Spool, 3-Way, 2-Position Solenoid Valve

Operation Symbol of ISV08-B35 Spool, 3-Way, 2-Position Solenoid Valve

When de-energized, the ISV08-B35 allows flow from ③ to ②.When energized, the cartridge’s spool shifts to open the ② to ① flow path.

Performance/Dimension/Sectional Drawing of ISV08-B35 Spool, 3-Way, 2-Position Solenoid Valve

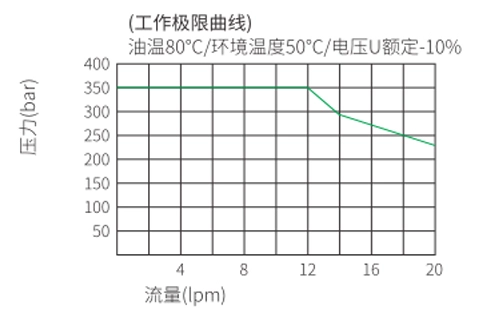

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of ISV08-B35 Spool, 3-Way, 2-Position Solenoid Valve

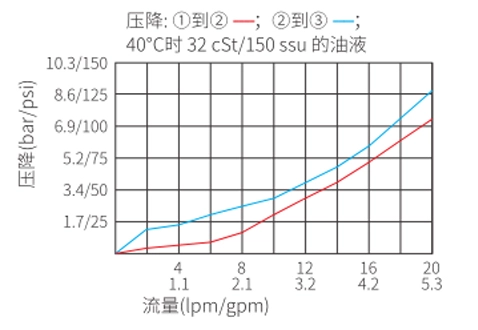

PERFORMANCE(cartridge only)
Performance/Dimension/Sectional Drawing of ISV08-B35 Spool, 3-Way, 2-Position Solenoid Valve

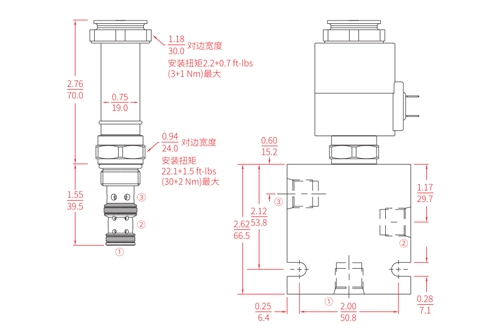

DIMENSION (inch/mm)
Performance/Dimension/Sectional Drawing of ISV08-B35 Spool, 3-Way, 2-Position Solenoid Valve
Sectional Drawing
Performance/Dimension/Sectional Drawing of ISV08-B35 Spool, 3-Way, 2-Position Solenoid Valve
